1000m Poe Switch 24 Port Ethernet Fiber Channel Switch High Quality

Product Description

ZSINE OFC 1000m Poe Switch 24 Port Ethernet Fiber channel switch We are professional fiber optic cable manufacturer.
Welcome to go to the factory !
Send message to our can get samples.

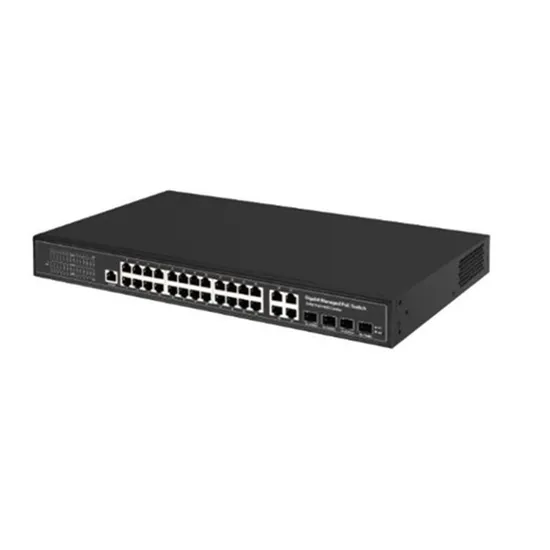

Product Overview 24-port 10/100/1000Mbps PoE switch with 4 SFP Slots. The PoE ports can automatically detect and supply power to IEEE802.3af/at compliant Powered Devices (PD). The electrical power and data transmission on the same cable can expand your network to the places where no power lines or outlets, where you can install devices such as APs, IP cameras, or IP phones etc. switch provides a simple, cost- effective, and non-blocking wire-speed performance with 19-inch metal shape for rack deployment in office or department network application. The switch can be configured by web based interface. Including administrator, port ,management,VLAN setting, each port statics, trunking setting, QoS setting, security filter, configuration/backup/recovery,and so on.
Features Interface information 24 10/100/1000Mbps RJ45 Ports support poe function 4 1000Mbps SFP Slots PoE(Power over Ethernet) Supports PoE Power up to 32W for each PoE port Support the two power supply modes for PoE (Mode A and Mode B) Auto detect power device Remote power and Data feeding up to 100m Switch pause frame for full-duplex,back pressure for half-duplex. Flow Control for Full Duplex operation and back pressure for Half Duplex Operation 8K MAC address, automatic address learning and address aging Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az) Built-in power supply can be chosen by the customer Support web smart management interface Support port mirror, gathering, bandwidth control, storm suppression, QoS, VLAN,STP,ETC.
PoE Features The switchcan provide up to 32 Watts of power to attached devices, such as VoIP phones, wireless access points; surveillance cameras etc, all over existing cat. 5cables. The switch eliminates the need for individual power sources for devices in the network, saving on costs for power cables and avoiding power outlet availability issues. Overload Arrangement Switch has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 240/300W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port(The larger port number, the lower priority). Application Providing 24-Port PoE in-line power interfaces, the switch can easily build a power centrally-controlled IP phone system, IP Camera system and Wireless AP group for the enterprise. Cameras can be installed around the corner in the company or campus for surveillance demands. Without the power socket limitation, the switch makes the installation of cameras more easily and efficiently .

Operating Temperature	0°C ~ 40 °C (32 °F ~104°F )
Storage Temperature	-40 °C ~ 70 °C (-40 °F ~158°F )
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	5% ~ 90% non-condensing
