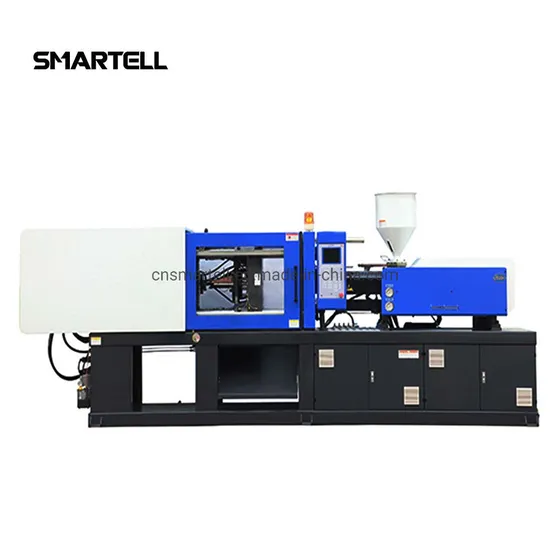

Barrel Rubber Injection Molding Machine for Disposable Syringe

US$19,800.00-49,800.00 1 Piece (MOQ)

Basic Info.

Model NO.
SMT-1022
Structure
Vertical
Plastic Type
Thermoplastic
Plasticizing Way
Plunger Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
ISO9001:2008
Marketing Type
Hot Product
Core Components
Motor, PLC, Engine
Material
Stainless Steel
Applicable Industry
Manufacturing Plant
Voltage
380V
Transport Package
Woolden
Specification
5.2m*1.3m*2.1m
Trademark
SMARTELL
Origin
China
HS Code
8477101090
Production Capacity
2sets/Month

Product Description

Injection Molding Machine in China
Consist of plasticizing system, injection system, the clamping system and transmission system of plastic injection molding equipment. Our company use die casting technologies applied to injection molding machines for many years.
In mechanical, hydraulic, electric control, etc for comprehensive improvement, perfect combination of dynamic pressure casting and speed.
Advantage:
1. Clamping Unit
Reliable 5-pint twin-toggle locking mechanism; Platens are designed under Finite Element Analysis; High speed clamping is stable while low pressure protection is accurate; Automatic lubrication system; Oil shortage alarm; Ejector stroke precisely controlled by transducer; Plenty of ejector modes for you to choose.
2. Injection Unit
Double-cylinder balance injection system; Shot weight is precisely controlled by transducer;
Using hydraulic motor to carry out variable speed.
3. Hydraulic Unit
Domestic high-tech divided hydraulic system; Hydraulic safety device; Imported high quality
hydraulic components are applied.
4. Electric Unit
Special controller for plastic injection molding machine; All the main components are imported from famous company, for example: TE(France), Gefran(Italy),etc.
ITEM/ MODEL UNIT SMT-1016 168T SMT-1020 208T SMT-1025 258T SMT-1028 288T
Screw Diameter mm 40 45 48 45 50 55 55 60 65 60 65 67
Screw L/D Ratio L/D 22.5 20.3 19 23.1 20.6 18.7 21.5 19.7 18.2 21.7 20 19.4
Clamping Force KN 1680 2080 2580 2880
Opening Stroke mm 420 475 545 610
Hydraulic Ejection KN 45 62 62 70
Ejector Stroke mm 140 165 165 165
Motor Power KW 15 18.5 22 30
Heater KW 10 16 18 18
Machine Dimension m 5.2x1.3x2.1 5.7x1.4x2.3 6.3x1.5x2.3 6.5x1.6x2.2
Machine Weight t 4.8 6.6 7.8 8.5
