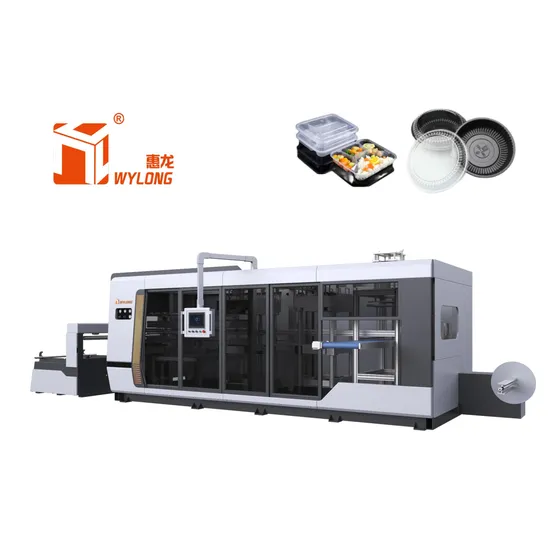

Advanced Multi-Station Thermoforming Machine 680/450 for Mass Manufacturing

Product Description

ESSENTIAL DETAILS

model	ZHD-680/450	ZHD-750/600	ZHD-800/650
Applicable sheet thickness	0.2-2mm	0.2-2mm	0.2-2mm
Applicable materials	PP PET PVC PS PLA	PP PET PVC PS PLA	PP PET PVC PS PLA
Maximum forming area	680x450mm	750x600mm	800x650mm
Sheet width	400-690mm	400-800mm	400-900mm
Maximum forming depth of upper mold	30mm	120mm	120mm
Maximum forming depth of lower mold	110mm	150mm	150mm
speed	15-30/min	15-40/min	15-40/min
heating power	80kw	120kw	150kw
Main motor power	4kw x 3	5.5kw x 6	7.5kw x 6
Sheet feeding motor power	5kw	5kw	5kw
Stacking power	1kw	1kw	1.5kw
Windin pmotor power	0.55kw	0.55kw	0.55kw
Total installed power	100kw	120kw	180kw
Gas consumption	0.5-0.8 bar	0.5-0.8 bar	0.5-0.8 bar
weight	9ton	15ton	20ton
Overall dimensions	8x2.4x2.2m	10x2.4x2.5m	12x2.4x3.2m

Warranty:1 Year Applicable Industries:Hotels, Garment Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Food & Beverage Shops
Key Selling Points:Easy to Operate Showroom Location:Egypt, Turkey, Germany, Viet Nam, Philippines, Brazil, Peru, Indonesia,
Pakistan, India, Mexico, Thailand, Argentina, Chile, Nigeria, Malaysia

PACKAGING & DELIVERY

Packaging Details: Stretchin film covered, Wooden pallets for easy loading
Port: NingBo Lead time:
Lead time:

Quantity(sets)	1 - 1	>1
Lead time (days)	40	To be negotiated

SCOPE OF APPLICATION The multi-stations thermoforming machine issuitable tohandle different materials, such asA-PET, R-PET, C-PET, BOPSHIPS, PP, PLA, PVCand barrier material and to producemanyitems: trays, lids, fruits and vegetablesboxes,fower pots,clamshells,nursery traysand plates.

It can make some products which unable to be made in one station thermoforminging machine, like for example: PLA products, plastic lids or containers which has holes, the packing containers (fruit box, egg trays) with body and cover connected etc.
CONFIGURATION LIST

PARTS NAME	ORIGIN
Forming servo motor	ESTUN & TRIO
Cutting servo motor	ESTUN & TRIO
Punching servo motor	ESTUN & TRIO
Magnetic Valve of Forming	Japan (SMC)
Magnetic Valve	Airtac
Cylinder	Airtac
Feeding Servo Motor	ESTUN & TRIO
Stacking Servo Motor	ESTUN & TRIO
Voltage Regulating module	China Brand
Temperature module	China Brand
Heater	China Brand
PLC	TRIO
Touch screen	ESTUN & TRIO
Encoder	Japan (Omron)
Contactor	France Schneider
Switch	France Schneider
Breaker	Schneider

MACHINE PHOTOS
MACHINE DETAILS

PRODUCTS RANGE
EXHIBITIONS AND FAIRS
COMPANY PROFILE
Zhejiang Wylong Machinery Co., Located in Ruian,Zhejiang Provicne ,is 500kms,away from Shanghai. with 20 years of machinery manufacturing and selling is Plastic sheet extruder,thermoforming machine ,and multi-station thermoforming machine With ISO 9001 Certification,advanced technology and equipment ,as well as the R&D ability of new products,our products are sold all over the world and enjoy a high reputation at home and abroad ,Since its establishment the company adheres to the principles of "scientific management,high quality and efficiency ","customer first and credibility commitment",we always take consumers as our first consideration ,we insist on providing high-quality products and services ,and sincerely welcome new and old friends from all walks of life to visit us and create a better future. Certifications
QUESTIONS YOU MAY ASK
Q1: Do you have different models for each machine?
Reply: Yes, we have different models and we can make the machine according to your requirements.

Q2: What is the production time?
Reply: Normally we need around 45 days.

Q3: What service you can offer after we buy the machine?
Reply: We have a few experienced technicians who can help to install and test running the machine anytime overseas. Moreover, our own export personel will give you the service support after buying the machine. As long as you have any questions, we will try our best to help you.

Q4: Should the customer send the sample cups?
Reply: Yes, if there is. If the customer has no samples, please send a drawing or a photo of the sample, and let us know the size. Then we will send the drawing for your confirmation.

Q5: What about the payment terms?
Reply: We accept T/T. 30% as deposit and 70% balance should be paid before delivery. We can also accept 100% confirmed irrevocable L/C at sight.

Q6: What is the capacity of the thermoforming machine?
Reply: Working 20 hrs/day, the capacity is 300,000-500,000 pcs/day. The accurate capacity depends on the size and material of the products.

Q7: How much space it needs for the thermoforming machine?
Reply: 5 meters in length (if need stacking machine, require another 3.5 meters), 2.5 meters in width.

Q8: What kinds of products can the thermoforming machine produce?
Reply: It can produce all kinds of disposible plastic cups, bowls, plates, boxes, yogurt cups, plant pots, food container, etc.

Q9: What material can be used in the thermoforming machine?
Reply: PP/PS/PVC/PET. Thickness 0.3-2mm.

Q10: What is the requirements of the machine for the electricity?
Reply: It needs three phase four wire. The copper core cable should be big than 25 mm³, aluminium core cable should be bigger than 50 mm³.

Q11: What is the requirements of the machine for the air?
Reply: The output volume of the compressed air should be higher than 2.4 mm³/min. The pressure should be higher than 6 kgs.

Q12: What is the requirements of the machine for the water?
Reply: The displacement of the water should be higher than 1.5 m³/min, and the pressure should be higher than 2kg. The temperature should be between 30°-50 °.

---
