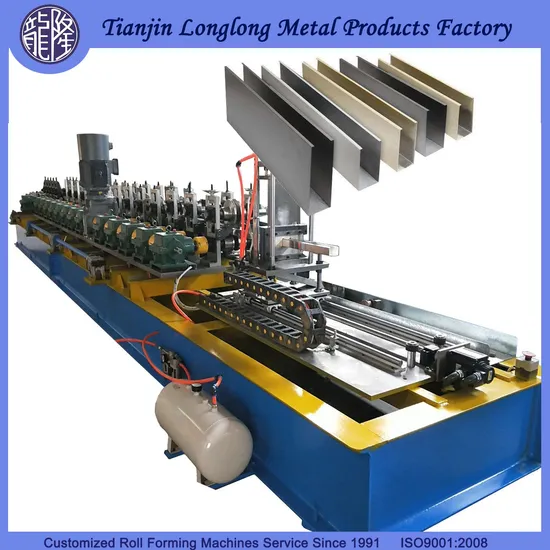

Aluminium Ceiling Rolling Mill Steel Suspend Baffles Roll Forming Machine for Ceiling Decoration

Product Description

Aluminium Ceiling Rolling Mill Steel Suspend Baffles Roll Forming Machine for Ceiling Decoration
We can provide customized roll forming machines service with clients,please give us the shape drawings (sizes) of metal profiles,we will send a best offer.
Description

Name		Ceiling Size Adjustable U Baffles Roll Forming Machine for Auto Cutting and Punching
Item		Aluminum Size Adjustable C/U Baffles Roll Forming Machine Ceiling Aluminum U Baffle Roll Fomer 30~600mm Adjustable C Linear Metal Roll Forming Machine
Model		LL-LZ-55-16
MACHINE LIST--WHOLE LINE
No.		Item	Unit	Qty
1		Decoiler	Set	1
2		Main forming machine	Set	1
3		PLC	Set	1
4		Hydraulic pressure pressure station	Set	1
5		Collector(Configurable)	Set	1
Main technical parameter
No.	Item		Parameters
1	Material width for production		400mm
2	Raw material		Hot-dip galvanization steel strip/ Aluminum strips
3	Raw material thickness		0.3-1 mm
4	I.D.		508-600mm
5	O.D.		1200mm
6	Electromagnetic speed motor		7.5kw
7	Working voltage		380v 50hz
8	Control voltage		24v
9	Forming steps		About 16 steps
10	Machine structure		Welded steel structure
11	Transmission mode		Gear wheel transmission
12	Roller shaft		45#steel, hardness of themodulation is HB250-280
13	Outer diameter		55 mm
14	Roller mould		Gcr15,salt bathquenching,hardness is HRC58-62
15	Production speed		0-45M/Min
16	Tolerance		0.50mm
17	Feed in material way		From left to right
19	Cutting form		45degree skew
20	Cutting frame		High structured frame welding
21	Cutting mould		Steel CR12, salt quenching hardness is HRC 60-62
22	Cutting length tolerance		1.5mm
23	Weight of production line		6 tons
24	Main machine (L*W*H)		5800mm*1650mm*1250mm
25	Length of production line(L*W*H)		14500mm*1650mm*1250mm

Application:
Shipping and Packing Photos:
4 kinds of Double Automatic-adjustable roll forming machines:
No.1 :Ceiling U Baffle Roll Forming Machine
Raw material: Aluminum/ galvanized sheets
Thikcness: 0.3~0.6mm
Web width: 200 ~550mm Automatic-adjustbale
Flange height: can be auto-adjustbale as your need
No.2 : Open Metal Ceiling U Baffle Roll Forming Machine
Raw material: Aluminum/ galvanized sheets
Thikcness: 0.3~0.6mm
Web width: 30 ~100mm Automatic-adjustbale
Flange height: 30~150mm Automatic-adjustbale
No.3 :Light steel stud and track roll forming machines for ceiling and drywall
Raw material: galvanized sheets
Thickness: 0.4~0.8mm
Web Width: 50~100mm / 100~200mm Automatic Adjustable
Flange Height: 29~65mm Automatic Adjustable
No.4 : Heavy steel C/U steel purlin roll forming machines
Raw material: galvanized sheets/Alu-zinc steel sheets
Thickness: 1.8~3.0mm
Web Width: 50~160mm / 130~250mm Automatic Adjustable
Flange Height: 30~65mm Automatic Adjustable
Patent Certificate
Main Types of Exported Machine
Advantage
1.We are manufacturer and have export entitlement.
2.We have more than 30 years' experience, our products have been exported to more than 80 countries all over the world.
3.We supply manufacturing, design, installation, after-sales and other services.
FAQs
1.Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.
We need your machines running in order to keep your business running.
2.How to visit your company?
a. Fly to Beijing airport, we can pick up you.
b. Fly to Tianjin Airport, we can pick up you.
3.How to get a quotation?
a. Give me the profile drawing and thickness, this is the important. If no, I will suggest you some.
b. Other specific requirements are welcome, such as the speed, power and voltage you want.
4.You are trade company or factory?
We are factory. Welcome to our workshop for visiting.
5.Can you be responsible for transport?
Yes, please tell me the destination port or address. We have rich experience in transport.
6.How long the machine could be made?
Normally speaking, common roll forming machine could be made within 45 working days.
If you need machines in a hurry, we can make it for you less than a month.

---
