US$500.00-5,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Hardness
Hardened Tooth Surface
Installation
Horizontal Type
Input Speed
750-2500r/Min
Reduction Ratio
1.87 2.04 2.54 3.00 3.53 4.10 4.47 4.61 4.94 5.44
Flywheel
12V135 12V150 SAE18 16 14
Housing
12V135 12V150 SAE0 1
Transport Package
Plywood Case
Specification
786mmX930MMX860mm
Trademark
Hangzhou Advance
Origin
Zhejiang, China (Mainland)
Production Capacity
1000 Sets/ Month
Packaging & Delivery
Package Size
78.60cm * 98.00cm * 104.10cm
Package Gross Weight
800.000kg
Product Description
Product Description
Description

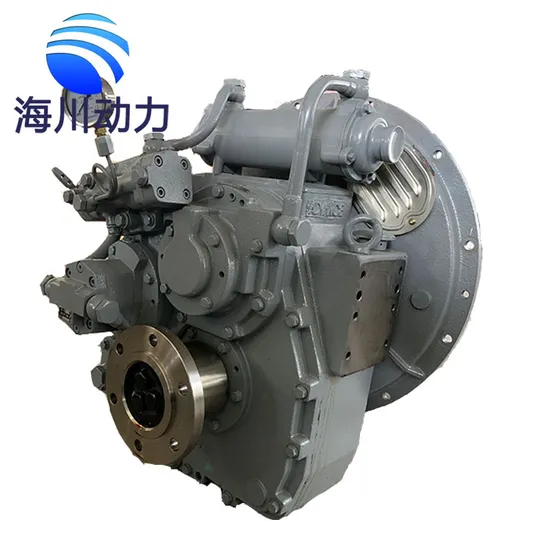

Marine Gearbox Advance 300 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and one-stage transmission, featuring in small volume, large ratio, light weight and easy dismantling, reassembly and maintainenance. It is suitable for fishing, tug, engineering and transport boats.
General Parameters
| Input speed (r/min) | 750 - 2500 |
| Reduction ratio (i) | 1.87 2.04 2.54 | 3.00 | 3.53 | 4.10 4.47 4.61 | 4.94 | 5.44 |
| Transmission capacity (kW/r/min) | 0.257 | 0.243 | 0.221 | 0.184 | 0.147 | 0.125 |
| Rated thrust (kN) | 50 |
| Center distance (mm) | 264 |
| Dimensions: L*W*H (mm) | 786*930*864 |
| Net weight (kg) | 740 |
| Operation control | Pull and push flexible shaft, electronically controlled, pneumatically controlled
|
| Flywheel | 12V135 12V150 SAE18 16 14 |
| Housing | 12V135 12V150 SAE0 1 |
Other Hot-sale Models ADVANCE HCD800 - 3,429:1 MEDIUM/HEAVY DUTY GEARBOX
| Reference number | A-HCD800-3,429 |
| Brand | Advance |
| Model | HCD800 |
| Ratio | 3,429:1 |
| Power | 1530 HP @ 1800 RPM |
| Max. Power | 1530 HP @ 1800 RPM |
| RPM Range | 1000-1800 |
| Rated propeller thrust | 110 kn |
| N/n | 0,85 hp/rpm |
FEATURES & OPTIONS
| Sae housing | Without/sae-00 |
| Controls | Mechanical |
| Pto | Not available |
| Coupling size | 21 /18 inch |
| Coupling type | Rubber block drive, with alu. ring |
DIMENSIONS
| Vertical offset | 450 mm |
| LxWxH | 1056x1280x1341 mm |
| Net. weight | 2200 kg |
AVAILABLE ARRANGEMENTS
| Ratio | 3,96:1 | 3,429:1 | 4,167:1 | 4,391:1 | 4,905:1 | 5,474:1 | 5,889:1 |
| Rate | 0,85 hp/rpm | 0,80 hp/rpm | 0,75 hp/rpm | 0,70 hp/rpm |
ADVANCE 135A - 5,06:1 MEDIUM/HEAVY DUTY GEARBOX
| Reference number | A-135A-5,06 |
| Brand | Advance |
| Model | 135A |
| Ratio | 5,06:1 |
| Power | 212,4 HP @ 1800 RPM |
| Max. Power | 236 HP @ 2000 RPM |
| RPM Range | 1000-2000 |
| Rated propeller thrust | 29,4 kn |
| N/n | 0,118 hp/rpm |
FEATURES & OPTIONS
| Sae housing | Without/sae-1 |
| Controls | Mechanical/ electrical |
| Pto | Not available |
| Coupling size | 14 inch |
| Coupling type | Rubber block drive, with alu. ring |
DIMENSIONS
| Vertical offset | 225 mm |
| LxWxH | 578x744x830 mm |
| Net. weight | 470 kg |
AVAILABLE ARRANGEMENTS
| Ratio | 2,03:1 | 2,59:1 | 3,04:1 | 3,62:1 | 4,11:1 | 4,65:1 | 5,06:1 | 5,47:1 | 5,81:1 |
| Rate | 0,134 hp/rpm | 0,125 hp/rpm | 0,118 hp/rpm | 0,103 hp/rpm | 0,094 hp/rpm |
ADVANCE HCD600A - 5,44:1 MEDIUM/HEAVY DUTY GEARBOX
| Reference number | A-HCD600A-5,44 |
| Brand | Advance |
| Model | HCD600A |
| Ratio | 5,44:1 |
| Power | 972 HP @ 1800 RPM |
| Max. Power | 1134 HP @ 2100 RPM |
| RPM Range | 1000-2100 |
| Rated propeller thrust | 90 kn |
| N/n | 0,54 hp/rpm |
FEATURES & OPTIONS
| Sae housing | Without/sae-00 |
| Controls | Mechanical |
| Pto | Not available |
| Coupling size | 21 /18 /14 inch |
| Coupling type | Rubber block drive, with alu. ring/(high) flexible coupling |
DIMENSIONS
| Vertical offset | 415 mm |
| LxWxH | 745x1094x1271 mm |
| Net. weight | 1550 kg |
AVAILABLE ARRANGEMENTS
| Ratio | 3,32:1 | 4,7:1 | 4,18:1 | 4,43:1 | 5,44:1 | 5,71:1 | 5:1 |
| Rate | 0,65 hp/rpm | 0,62 hp/rpm | 0,54 hp/rpm | 0,6 hp/rpm |
ADVANCE HC400 - 4,06:1 MEDIUM/HEAVY DUTY GEARBOX
| Reference number | A-HC400-4,06 |
| Brand | Advance |
| Model | HC400 |
| Ratio | 4,06:1 |
| Power | 684 HP @ 1800 RPM |
| Max. Power | 684 HP @ 1800 RPM |
| RPM Range | 1000-1800 |
| Rated propeller thrust | 82 kn |
| N/n | 0,38 hp/rpm |
FEATURES & OPTIONS
| Sae housing | Without/sae-0/sae-1 |
| Controls | Mechanical/ electrical |
| Pto | Not available |
| Coupling size | 18 /16 /14 inch |
| Coupling type | Rubber block drive, with alu. ring/(high) flexible coupling |
DIMENSIONS
| Vertical offset | 264 mm |
| LxWxH | 843x950x890 mm |
| Net. weight | 820 kg |
AVAILABLE ARRANGEMENTS
| Ratio | 1,5:1 | 1,77:1 | 2,04:1 | 2,5:1 | 3,25:1 | 3,38:1 | 3,42:1 | 3:1 | 4,06:1 | 4,61:1 | 4,94:1 |
| Rate | 0,45 hp/rpm | 0,38 hp/rpm | 0,25 hp/rpm |
ADVANCE D300A - 4:1 MEDIUM/HEAVY DUTY GEARBOX
| Reference number | A-D300A-4 |
| Brand | Advance |
| Model | D300A |
| Ratio | 4:1 |
| Power | 630 HP @ 1800 RPM |
| Max. Power | 805 HP @ 2300 RPM |
| RPM Range | 1000-2300 |
| Rated propeller thrust | 60 kn |
| N/n | 0,35 hp/rpm |
FEATURES & OPTIONS
| Sae housing | Without/sae-0/sae-1 |
| Controls | Mechanical/ electrical |
| Pto | Available |
| Note | If using flexible couping, rate will rise 8% |
| Coupling size | 18 /16 /14 inch |
| Coupling type | Rubber block drive, with alu. ring/(high) flexible coupling |
DIMENSIONS
| Vertical offset | 355 mm |
| LxWxH | 786x920x1040 mm |
| Net. weight | 940 kg |
AVAILABLE ARRANGEMENTS
| Ratio | 4,48:1 | 4:1 | 5,05:1 | 5,52:1 | 5,9:1 | 6,56:1 | 7,06:1 | 7,63:1 |
| Rate | 0,33 hp/rpm | 0,35 hp/rpm | 0,30 hp/rpm | 0,25 hp/rpm | 0,20 hp/rpm | 0,17 hp/rpm |
Main Data
| Input speed | 1000-2500r/min |
| Reduction ratio | 4.00 | Trans. capacity | 0.257kw/r/min |
| 4.48 | 0.243kw/r/min |
| 5.05 | 0.221kw/r/min |
| 5.52,5.90 | 0.184kw/r/min |
| 6.56,7.06 | 0.147kw/r/min |
| 7.63 | 0.125kw/r/min |
| Control way | Push-and-pull flexible shaft, electrically, pneumatically |
| Rated thrust | 60KN |
| Center distance | 355mm |
| L×W×H | 786×980×1041mm |
| Net weight | 940kg |
| Flywheel | 12V135,SAE18,16,14 |
| Bell housing | 12V135,SAE0,1 |
Company Profile
About Company
Located in Weifang City, Shandong Province, Weifang Haichuan Power Co., Ltd. is a professional manufacturer and sales company of diesel engines, generator sets, diesel pumps and relevant parts .
The Company has established business relationship with thousands of customers, and with high quality and perfect after-sales services, its products have been well received by all customers from Russia, Saudi Arabia, India, Sri Lanka, Philippines, Bangladesh, Singapore, Indonesia, Malaysia, Angola, Nigeria, etc.
On the principles of "quality first, reputation first" , Haichuan Power looks forward to creating a better tomorrow together with customers at home and abroad.
After Sales Service
SERVICES
Pre-Sales Service * Inquiry and consulting support.
* View our Factory. After-Sales Service * Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Warranty Period: One year or 1200 hours use.
Packaging: The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in plywood boxes.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: FOB, CIF.
Q4. How about your delivery time?
A: 15-20 working days upon receipt of the deposit.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers' benefit; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
