| parameter | Display: | 0.39 inch OLED |
| Resolution: | 800*600 | |
| Screen Ratio: | 4:3 | |
| Color Depth: | 24-bit input | |
| Viewing Angle: | 45° diagonal | |
| Video input: | Composite AV/CVBS | |
| Video Signal: | NTSC/PAL/SECAM automatic selection | |
| Working voltage | 3.7-5V | |
| Working current | 5MA | |
| power consumption | 0.1W | |
| Display frame frequency | 120HZ(NTSC),100HZ(PAL | |
| An exit pupil distance | 20mm | |
| An exit pupil diameter | 1-2m | |
| eyepiece | 16x optical | |
| bright adjustment | yes | |
| Diopter adjustment | yes | |
| Applications | ||
| 800*600 active matrix color 0.39 inch OLED panel module uses single crystal silicon transistor | ||
| The display module can be equivalent to 2 meters distance virtual 80 - inch screen, | ||
| VGA pixels of micro display chip, image as well as the light source system, high-performance optical engine, the drive control circuit | ||

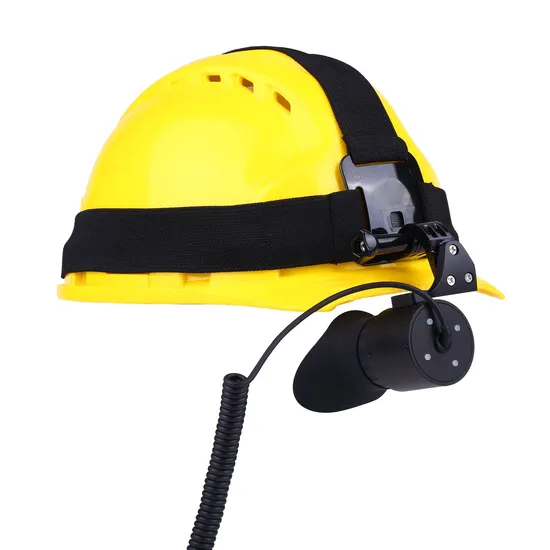

| FPV model aircraft display, easy to plug in both the user to carry and operate | ||
| Monocular display suite, night vision, medical, information, infrared detection, power monitoring electronic suite viewfinder | ||
| Metal case with internal fixing bracket, waterproof, dustproof and shockproof | ||
| Equipped with 38MM eyepieces, custom hoods, | ||
| User-friendly straps are comfortable and convenient, while supporting up and down adjustment | ||
| Accessories | ||
| Display*1 | ||
| bind*1 | ||
| User's manual×1 | ||
| Packing | Unit Dim(mm) | Unit GW (kg) |
| 18*8*9CM | 0.35 | |
