Basic Info.
Structure
Radial Drilling Machine
Controlling Mode
Artificial
Max. Drilling Diameter
50mm
Distance Between Spindle Axis and Column
350--1600mm
Distance Spindle Nose and Table Surface
320--1220mm
Rocker Arm Lifting Distance
580mm
Overall Dimension
2500X1070X2840mm
Transport Package
Plywood Box
Product Description
Product Description

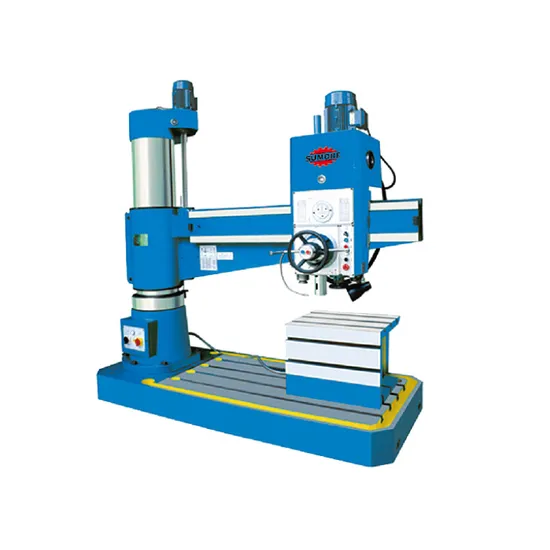

SP3127 Precision cheap radial drilling machine is one of our most economic and durable radial drilling machine. It is hydraulic radial drilling machine not mechanical radial drilling machine. And it is small in size and delicate in design. This radial drilling machine is made in China , but have the same quality with Japan radial drilling machine. The main features are as below:
1. Optimum design conforming to international standard.
2.Key precisely machined parts precision machining
3.Great Flexible radical drilling machine with reliable and perfect feature
4.This radical drilling machine has High precision; high strength.
5. This radical drilling machine has Economical cutting and long life.
6. Drilling, counter boring, reaming, boring, spotting, tapping
Product Parameters
Model No.
| SP3127
|
Max. drilling diameter:
| 50mm
|
Distance between spindle axis and column:
| 350--1600mm
|
Distance spindle nose and table surface
| 320--1220mm
|
Rocker arm lifting distance
| 580mm
|
Rocker arm lifting speed
| 0.02m/s
|
Spindle travel
| 315mm
|
Spindle taper
| MT5
|
Range of spindle speeds
| 25--2000 r/min
|
Number of spindle speeds
| 16 steps
|
Range of spindle feeds
| 0.04-3.2 mm/r
|
Number of spindle speeds
| 16 steps
|
Th maximum torque of the spindle
| 500 N.M
|
Spindle maximum feed resistance
| 600*500mm
|
The spindle box of horizontal moving distance
| 1250mm
|
Spindle Motor power
| 4 KW
|
Hydraulic clamping motor power
| 0.75kw
|
Cooling motor power
| 0.09kw
|
Arm lift motor power
| 1.5KW
|
Movement motor power
| 0.55kw
|
machine weight
| 3500kg
|
Overall dimension
| 2500x1070x2840mm
|
Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
FAQ
1.Q: What is your payment terms?
A:Our payment term is 30% T/T in advance, 70% T/T before shipment.It is negotiable.
2.Q: What is your delivery time?
A:Usually, one machine takes 20-40 days. If we have in stock, we can arrange
shipment as soon as we receive the payment.
3.Q:Where is your factory?Can we go to your factory and learn how to use the machine?
A:Our factory is loacted in yancheng,jiangsu Province.
We sincerely welcome you come to our factory.
4.Q: Do you have CE certification?
A:yes, we have CE certification, machine quality is guaranteed.
5.Q:Can you accept OEM order?
A:Sure,we accept OEM with your logo print on the machine and package with your design.
>>
