US$4,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Tool Milling Machine
Milling Cutter Type
Various Cutting Tools
Milling Cutter Structure
Various Structures
Controlling Mode
Artificial
Certification
CE, ISO 9001
Transport Package
Negotiate
Specification
1770*1680*2150mm
Product Description

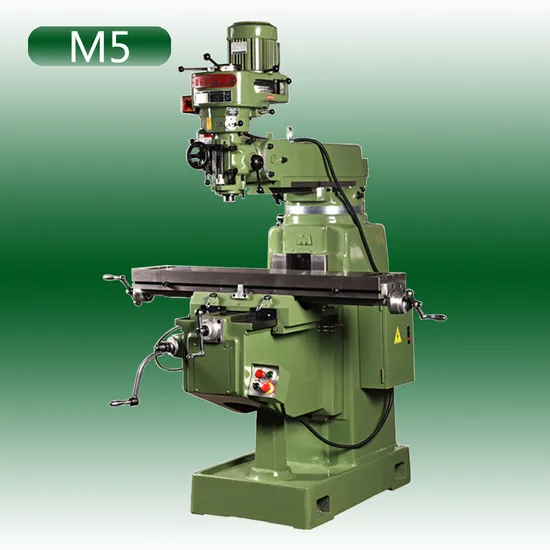

Vertical Milling Machine
This product series has a wide range of uses, including millingboring, drilling, tapping, etc, With a slideable worktable along theX,Y, Z axies and a milling head rotating around all three axes, thisproduct has an outstanding machining performance whileprocessing any angle or surface of the workpiece. This productseries is basically used in machine shops and tool rooms ofvarious industries., especially for manufacturing tools,clampsmolds, etc.
High-precision and high-speed headThe head has high speed and wide rangeof speed, which is able to make the mostof tool. The spindle sleeve is automaticallyfed and stopped.The head is equippedwith fine-tuning and overload protectiondevice,ensuring the accurate positioningof the tool and depth of cutting
Compact structure,small size and high flexibilityThe head is able to rotate 360 degree in the X-axisdirection,+90 deqree in the yaxis direction,and+45 degree in the Z direction,therefore the size ofworkpiece is allowed to be larger than the worktable
Apply centralized lubrication structure to worktableand lifting plateThis product is equipped with an oil pump to lubricatethe guide rail and the screw
| Standard Models | | M3 | M4S | M4 | M5 | M6 | SD6 |
| Table Size | mm | 254x1270(10"x50") | 254x1270(10"x50") | 254x1270(10"*x50") | 254x1370(10"x54") | 305x1370(12"x54") | 305x1370(12"x54") |
| Travel | X-axis | mm | 800 | 800 | 800 | 900 | 785 | 820 |
| Y-axis | mm | 380 | 380 | 405 | 405 | 405 | 385 |
| Z-axis | mm | 370 | 370 | 390 | 390 | 500 | 500 |
| Guideway | Y-axis | mm | Dovetail | Square | Square | Square | Square | Double Dovetai |
| Z-axis | mm | Dovetail | Dovetail | Square | Square | Square | Square |
| Spindle | Spindle Taper | | R8/NT30 | R8/NT30 | R8/NT30 | R8/NT30 | NT40 | Side Break R8/(NT30jNT40 |
| Spindle Quill Tiavel | mm | 127 |
| No.of Spindle Speed | rpm | 16 Speed |
| Spindle Feed | mm/rev | 0.076/0.003";0.038/0.0015";0.203/0.008" |
| Spindle Min. Speed | rpm | 66/110/175/270/550/930/1460/2270 |
| Spindle Max. Speed | rpm | 132/220/350/540/1100/1860/2920/4540 |
| T-Slot | Slot No.* Width | mm | 3x16 |
| T-Slot Interval | mm | 65 |
| Motor | Voltage | V | 380/415 |
| Frequency(HZ) | hz | 50 |
| Main Motor | | 3HP | 3HP | 3HP | 3HP | 5HP | 3HP/5HP |
| Coolant Motor | | 1/8HP | 1/8HP/90W |
| Knee Motor | | / | / | / | / | 1/2HP | 1/2HP/400W |
| Max weight on Table | kg | 300 | 300 | 300 | 300 | 350 | 350 |
| Saddle(W*H) | mm | 285x510 | 285x510 | 285x510 | 285x510 | 335x650 | 305x550 |
| Ram Travel | mm | 510 | 510 | 510 | 510 | 620 | 510 |
| Sleeve Diameter | mm | Ф85.70 | Ф85.70 | Ф85.70 | Ф85.70 | Ф105 | Ф85.70 |
| Spindle Center To Column | Min | mm | 230 | 230 | 220 | 220 | 195 | 220 |
| Max | mm | 600 | 600 | 590 | 590 | 675 | 590 |
| Spindle Nose To Table | Min | mm | 50 | 105 | 85 | 85 | 90 | 90 |
| Max | mm | 420 | 475 | 475 | 475 | 590 | 590 |
| Machine Size | mm | 1670x1680x2060 | 1670x1680x2110 | 1670x1680x2150 | 1770x1680x2150 | 1770x1780x2300 | 1800x1680x2280 |
| Mass of Machine | kg | 1100 | 1300 | 1380 | 1400 | 1500 | 1480 |
| Special Models | | M4SA | M5A | M5T | M5AN | M5TN |
| Table Size | mm | 305Ax1370 | 305Ax1370 | 305x1370(12"x54") | 305Ax1370 | 305x1370(12"x54") |
| Travel | X-axis | mm | 900 | 900 | 900 | 900 | 900 |
| Y-axis | mm | 380 | 405 | 380 | 405 | 380 |
| Z-axis | mm | 370 | 390 | 390 | 390 | 390 |
| Guideway | Y-axis | mm | Square | Square | Square | Square | Square |
| Z-axis | mm | Dovetail | Square | Square | Square | Square |
| Spindle | Spindle Taper | | R8/NT30 | R8/NT30 | R8/NT30 | NT40 | NT40 |
| Spindle Quill Tavel | mm | 127 |
| No.of Spindle speed | rpm | 16 Speed |
| Spindle Feed | mm/rev | 0.076/0.003";0038/0.0015";0.203/0.008" |
| Spindle Min.Speed | rpm | 66/110/175/270/550/930/1460/2270 |
| Spindle Max Speed | rpm | 132/220/350/540/1100/1860/2920/4540 |
| T-Slot | SlotNo.*Width | mm | 3x16 |
| T-Slot Interval | mm | 65 |
| Motor | Voltage | V | 380/415 |
| Frequency(HZ) | hz | 50 |
| Man Motor | | 3HP | 3HP | 3HP | 5HP | 5HP |
| Coolant Motor | | 1/8HP |
| Knee Motor | | / | / | / | / | / |
| Max Weight on Table | kg | 300 | 300 | 300 | 300 | 300 |
| Saddle(W*H) | mm | 285x510 | 285x510 | 305x510 | 285x510 | 305x510 |
| Ram Travel | mm | 510 | 510 | 510 | 620 | 620 |
| Sleeve Diameter | mm | Ф85.70 | Ф85.70 | Ф85.70 | Ф105 | Ф105 |
| Spindle Center To Column | Min | mm | 230 | 220 | 220 | 195 | 195 |
| Max | mm | 600 | 590 | 590 | 675 | 675 |
| Spindle Nose To Table | Min | mm | 105 | 85 | 85 | 90 | 90 |
| Max | mm | 475 | 475 | 475 | 480 | 480 |
| Machine Size | mm | 1770x1680x2110 | 1770x1680x2150 | 1770x1680x2150 | 1770x1680x2200 | 1770x1680x2200 |
| Mass of Machine | kg | 1320 | 1420 | 1450 | 1440 | 1470 |
*As the appearance of the product may be updatedthe pictures in this atlas are for reference only,please refer to the actual product.
*Division i reserves the right to make anytechnical parameters without notice.
>>
