500*250 Precision Sumore 500X250mm Table China Cylinder Head Grinding Machine

Product Description

Product Description

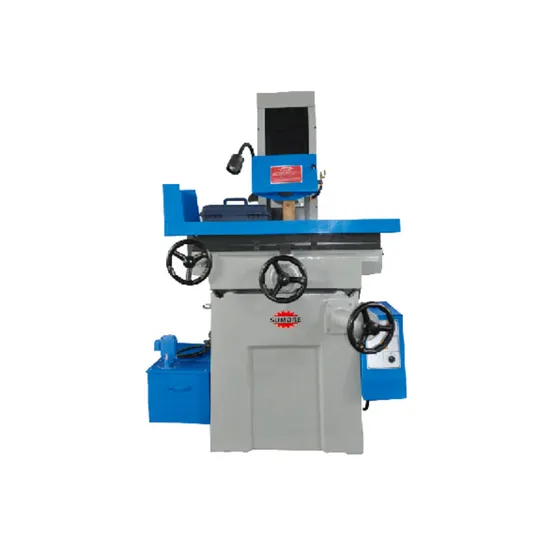

Factory vertical surface grinders surface grinding machine manufacturers SP2504 Surface Grinder(hydrulic grinding machine) is a good quality metal surface grinding machine, which is made in China, but have similar quality as Japan surface grinder. It has good design and high quality.
Quick details
1.Table size:500*250mm
2.Max grinding length:560mm
3.Wheel size:200*20*31.75mm
4.Spindle motor:1.5KW
Featurs/Advantages
High rigidity & high sealing ensure no vibration- Accuracy
Digital size controller -Longer machining Accuracy
Simple operation
Suit for fine Grinding, Lapping and Polishing etc
Pre, main and post load position can be controlled by simple setting.
Operator gets more space for loading from upper wheel Swivel device. It can be equiped with semi or full automatic Loading or Unloading device.
Product Parameters

Product Specifications
Model	SP2504
Max. workpiece to be Ground(L*W*H)	560*250*490mm
Max. Grinding Length	560mm
Max. Grinding Width	250mm
Distance from Table to Surface to Spindle Center	490mm
Slide way	V-type rail with Steel-ball
V-type rail with Stell-ball	250kg
Table Size(L*W)	500*250mm
Number of T-slot	14*1mmxn
Cross Feed on Handwheel	0.02/Graduation 2.5/revolution
Vertical Feed on Handwheel	0.01Graduation 1.25/revolution
Wheel Size(dia x width x bore)	200*20*31.75mm
Spindle speeds 50Hz	2850rpm
Spindle motor	1.5kw
Coolant Pump	0.04kw
Paraller level	300:0.005mm
Gross/Net Weight	1100/1000kg
Packing size	1280*1250*1880mm
