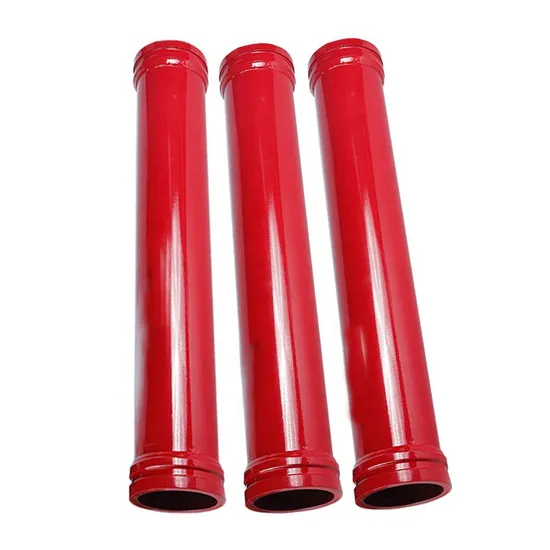

DN125 3m Length Concrete Pump Parts Twin Wall Pipe

Product Description

DN125 3m Length Concrete Pump Parts Twin Wall Pipe
TWIN WALL BOOM PIPE DN125 4.85mm

Nominal Diameter	DN125
Wall Thickness	4.85mm (3.25mm+1.6mm)
Inner Wall	3.25mm
Outer Wall	1.6mm
Heat Treatment	Induction Hardened
Weld-Ends	SK
Length	3000mm
Working Pressure	85 bar
Hardness	Up to 68 HRC
Surface coating	Electrostatic Powder Coating
Color	Customized
Model No	XMTW480

Twin wall boom pipes have an inner resistant pipe lining with an outer steel shell. The internal liner is made of special anti-wear steel, hardness up to HRC68. The induction hardening process and high-quality welding process ensure that pipes achieve a service life that is several times longer than common ST52 pipes with the same wall thickness.
Hebei Ximai Machinery has over 20 years of experience in boom pipes and other concrete pump parts production. Our production strictly follows the industry standard, such as the flange welding, induction hardening, rust removal and the surface coating (Electrostatic Powder Coating). The strict quality control ensure that we offer the best products and service to our clients. The Our pipes have been exported to all over the world, USA, Germany, Australian, South America, Southeast Asian and North Africa.
Contact Us: sales@ximai.group
Inner surface induction hardening
Electrostatic powder coating
Pipes exported to all over the world
FAQ
Question : Is your company manufacturer or trade company?
Answer : Manufacturer.
Question : Is samples order available?
Answer : Yes.
Question : Is OEM or ODM available?
Answer :Yes.
Question : What is your production lead time?
Answer: 2~3 weeks.

---
