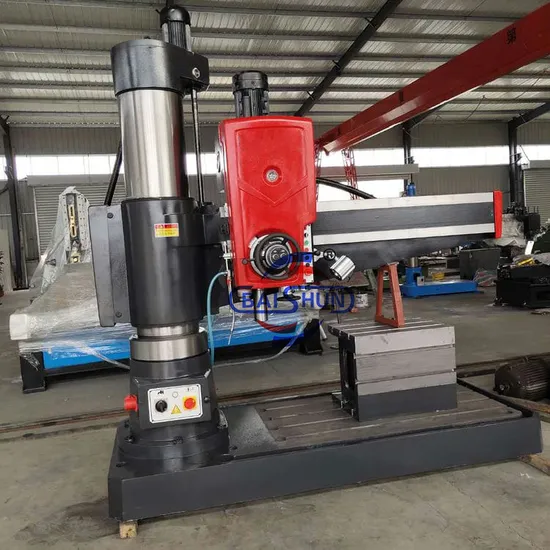

Big Size Vertical Radial Drill Machine Z3050 Z3040 Radial Bench Drilling Machine for Metal

US$6,500.00-9,800.00 1 Set (MOQ)

Basic Info.

Model NO.
Z3050
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Mechnical/Hydraulic
Number of Shaft
Single
Hole Diameter
50mm
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Product Name
Hydraulic Radial Drill Machine
Type
Z3050*16
Max Drilling Diameter
50mm
Spindle Travel
350mm
Radial Ratation Angle
360°
Main Motor
4kw
Power Supply
220V/380V/415V
Function
Tapping Holes
Application
Metal Drilling
Color
Green/Red
Transport Package
Export Standard Wooden Case
Trademark
BAISHUN
Origin
China
HS Code
8459290000
Production Capacity
50set/Month

Product Description

Product Description
Radial drilling machine is widely used in single piece and small and medium batch production to process holes of workpieces with large volume and weight. The radial drilling machine has a wide processing range and can be used to drill various screw holes, threaded bottom holes and oil holes of large workpieces. The radial drilling machine is used to process small and medium-sized holes on heavy or porous workpieces. It is mainly composed of a base, a column, a rocker arm, a spindle box, a spindle worktable, etc. When the radial drilling machine works, the radial arm can rotate around the column, and the spindle box can move radially on the radial arm. In this way, the drill can be aligned with the axis of each hole to be machined for hole processing. It is flexible to use. Generally, the workpiece is clamped on the workbench when drilling. When machining large workpieces, the workpieces can be clamped on the base of the drilling machine. According to the different heights of the workpiece, after loosening the locking device, the rocker arm can move up and down along the column to make the headstock and the drill at the proper height.
Product Parameters
Specification Z3032X10 Z3040X14 Z3050X16 Z3063X18 Z3080X20
Max drilling diameter (mm) 32 40 50 63 80
Distance between spindle axis and coulumn(mm) 170-1100 260-1210 350-1500 400-1600 550-1600
Spindle travel(mm) 120 260 350 400 450
Spindle taper(morse) MT4 MT4 MT5 MT6 MT6
Number of spindle speeds 6 12 12 16 16
Steps of spindle feeds 3 3 4 16 16
Radial ratation angle 360 360 360 180 180
Main motor (kw) 1.5 2.2 4 5.5 7.5

Detailed Photos
Company Profile
FAQ
Q: Why Choose Us?
1). We are manufacturer with own factory for many years with CE Certification
2). With professional design and sales team, we can serve you perfect solution with competitive direct factory price.
3). Our machines are popular among customers around the world ( India, Pakistan, Spain, Italy, Korea, Mexico, UK etc).
Q: What Is Our Service?
1). Pre-Sale Service
According to the customers' special requirements,we provide the most suitable project design, process design and the purchase program. Guide customers to choose the best and economical plant, recover investment within short time.
2). Sales Service
You are welcome to visit our factory to test the machine. And we will customize the equipment strictly according to your special requirements and arrange the timely delivery.
3). After-Sale Service
We will provide one year warranty for our machine.According to your need,we will dispatch our engineers to your factory to guide the installation,commissioning and training your workers.
Q: How About The Motor?
A: We use domestic Chinese-famous motors,but you can choose Siemens or other brand motor as your requirement.
Q: How long does it take to make a product?
A: It depends on size and type of machine.Normally, small size machine takes around 7-30 days, larger one takes around 30-60 days.
A:Yes, we provide testing videos in factory for each machine before shipment.
For more detail specification please ph: +86 17838375098
