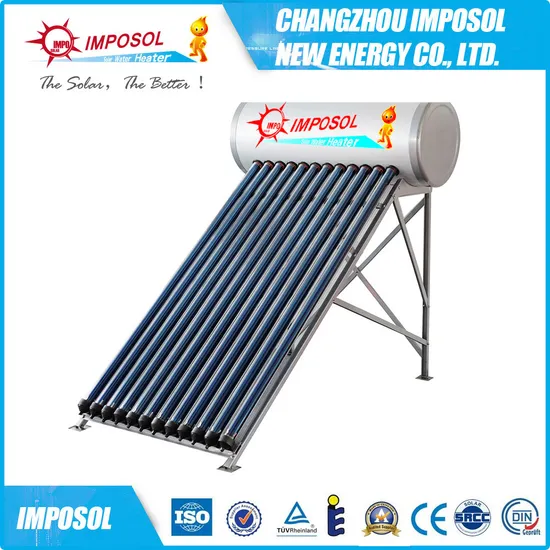

Heat Pipe Pressurized Solar Hot Water Heater System (ChaoBa)

Product Description

Heat Pipe Pressrized Solar Hot Water Heater (ChaoBa) Technical Specifications :
Inner Tank : SUS304-2B food-grade stainless steel - 1.2mm thickness , laser welding technology .
Vacuum Tube : High efficient ALN/ALN-SS/CU coating , 58 x 1800mm vacuum tube - 1.6mm thickness , resist 25mm hail .
Heat pipe : OD.8mm*0.6mm Oxygen free copper anti-freeze heat pipe OD.14mm*1mm condenser, Total length 1700mm ,with 0.25mm pure aluminium fin
Outer Tank : SUS304-2B food-grade stainless steel - 0.4mm thickness , free-welding technology .
Insulation Layer : High density polyurethane - 50mm thickness , 72 hours efficient thermal insulation .
Frame support : SUS 201BA stainless steel - 1.2mm thickness or Aluminum alloy 2.0mm thickness, anti-corrosive and anti-ultraviolet .
M8 Stainless steel SUS 304 bolts and nuts .
58mm Silicone seal ring and dust ring
Stainless steel SUS304 - 2.0mm thickness 3/4' or 1/2' inlet, outlet, air vent
Pressure&temperature valve
Magnesium anode rod
Pressure relief valve with check valve
Optional accessories :
Aluminum component reflectors
Electrical heater
Solar Controller

Model	Light Area(m2)	Vacuum Tube			Capacity (Liters)	20GP/40HQ Loading Qty
		Ø(mm)	L(mm)	NO.
IPCB 100 SS	1.4	58	1800	10	100L	63/152
IPCB 120 SS	1.68	58	1800	12	120L	55/135
IPCB 150 SS	2.1	58	1800	15	150L	47/114
IPCB 160 SS	2.24	58	1800	16	160L	44/106
IPCB 180 SS	2.52	58	1800	18	180L	40/97
IPCB 200 SS	2.8	58	1800	20	200L	37/89
IPCB 240 SS	3.36	58	1800	24	240L	32/77
IPCB 250 GS	3.5	58	1800	25	250L	31/75
IPCB 300 SS	4.2	58	1800	30	300L	26/64
IPCB 360 SS	5.04	58	1800	36	360L	22/54

Company introduction:

Jiangsu Imposol New Energy Co., Ltd. Is top ten in china for exportation.with more and more customers from Europe,Australia,Africa and Asia joinning us.
With products' high performance and reasonable price backing us, With products'quality and company's credit supporting us,We believe that we are turning the world greener day by day-together!

As an OEM factory in china,We specialize in manufacturing various types of solar water heater,solar collectors and vacuum tubes.Our product range include;compact and split,low pressure and high pressure vacuum tube solar water heater;thermosyphon;heat pipe,Upipe and SCHMV tube solar collector;flat plate solar water heater and solar collector.
We have also designed and carried out some wonderful solar water projects for hospitals, schools,factories and familieS as well as our own design for new products.

Inner Tank	304/316L Stainless steel or Porcelain enamel
Outer Shell of Tank	Galvanized steel Sheet or Stainless steel sheet
Supporting Frame	Galvanized steel Sheet or Stainless steel sheet
Insulating Layer	Foaming polyurethane, Thickness:55mm
Working Pressure	Normal working pressure: 7bar Test pressure: 11bar
Electric Booster	1500W

Why Choose Us?

1.Our Product is economic and environmental;

2.Our Product is durable and has a long service life;

3.We have rich production experience.The quality of Product is reliable;

4.We have a perfect production process and strict quality control system;

5.We have perfect service system and will give you the best service.

6.Professional Production Line
Exhibition
Package and shipping
