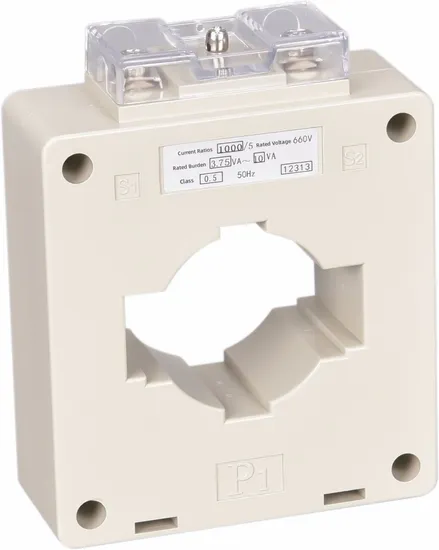

0.66kv Copper Current Transformer (CT) Mutual Inductor Current Sensor OEM ODM

US$2.20-18.00 2 Pieces (MOQ)

Basic Info.

Model NO.
LDBH
Type
Square Core, Circle Core
Current
5A - 5000A
Voltage
0.66kv
Class
0.5
Φ
60-120
Transport Package
Carton, Wood
Origin
China

Product Description

The current transformer, commonly referred to as a CT, serves the essential function of converting a larger primary current value into a smaller secondary current value through a specific ratio. CT is utilized for various applications, including protection and measurement. For instance, a current transformer with a ratio of 400/5 is capable of transforming a primary current of 400A into a secondary current of 5A.
A current transformer consists of a closed core and winding. The primary winding has a limited number of turns and is connected in line with the current to be measured, allowing it to carry the entire current flowing through the line. Conversely, the secondary winding comprises a greater number of turns and is connected in series with measurement instrumentation and protection circuits. During operation, the secondary circuit remains closed, resulting in a very low impedance in the series coil of the measurement and protection circuits. Consequently, the operational condition of the current transformer is akin to that of a short circuit.
In the context of power generation, substations, transmission, distribution, and electricity utilization, the current levels can range from a few amps to tens of thousands of amps. To facilitate measurement, protection, and control, it is necessary to convert these currents into more manageable values. Additionally, direct measurement of high line voltages poses significant safety risks. Current transformers thus play a critical role in current conversion and electrical isolation.
Model Rated current primary/secondary A B C D E F G H
LD-BH-30I 30/5A-300/5A 60 36 67 17 60 31 10 59
LD-BH-40I 150/5A-800/5A 75 43 82 17 60 31 10 71
LD-BH-60I 400/5A-1200/5A 101 44 111 17 60 31 10 71
LD-BH-80I 600/5A-1000/5A 125 40 102 17 60 32 11 72
LD-BH-100I 800/5A-3000/5A 145 45 139 17 60 31 10 72
LD-BH-120I 1500/5A-5500/5A 196 46 210 17 60 34 11 72
