Yhdc 36mm Hole Split Core Current Transformer, Current Clamp Sct036ts

Product Description

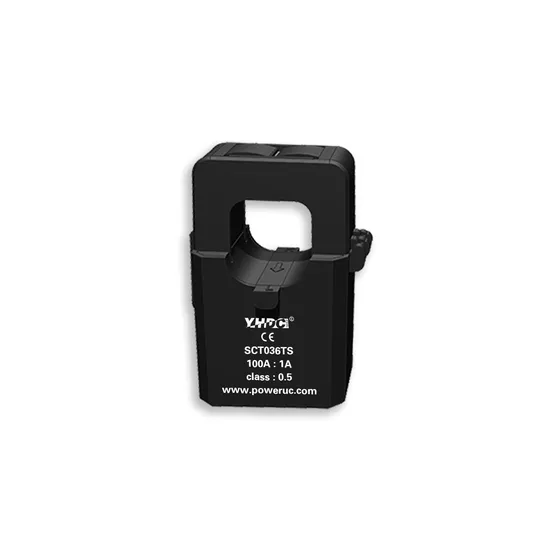

YHDC 36mm hole Split Core Current Transformer, Current Clamp SCT036TS
Split core current transformers are usually installed on current intensive power lines or equipment, and output the measured current signals to users for monitor measurement or protection.
Introduce:
YHDC brand of SCT type split core current transformers have been specifically designed to be small CT and easy to open and yet maintain the accuracy required for kwh meters. The benefit of a split core current transformers is that it can be placed into position easily and without disturbing or disconnecting the main cables it is monitoring.
Application:
Current measurement, monitoring and piotection for electrical wiring and equipment.
Current and power measurement for electric motors, lighting, air compressor, heating and ventilation system,air-condition equipment and automation-control system.
Current, power and energy monitoring device.
Relay protection device.
Charging pile
Data center Characteristic:
Safety lock buckle, easy installation, screw terminal output.
Technical index:
Mounting type: Free hanging (In-Line)
Material of core:Laminated silicon steel
Applicable standards: GB20840-2014
Operating temperature: -25ºC ~ +60ºC
Storage temperature: -30ºC ~ +90ºC
Frequency range: 50Hz-60Hz
Waterproof grade: IP00
Dielectric strength: 3.5KV 50Hz 1min
Product Parameters:

Model	SCT036TS
Input	100A		200A		300A	400A			500A		600A
Output	1A

Model	SCT036TS
Input	100A	200A	300A	400A	500A	600A
Output	5A

Model

SCT036TS

Input

100A

200A

300A

400A

500A

600A

Output

50mA

100mA

50mA

100mA

50mA

100mA

50mA

100mA

50mA

100mA

50mA

100mA

Model	SCT036TS
Input	100A	200A	300A	400A	500A	600A
Output	0.333V/1V/3V/5V

Dimensions in mm
FAQ Q: Do you provide samples? Can the product be customized?
A: Yes.
Q: How long is your delivery time?
A: 5-7 working days .
Q:Are you trading company or manufacturer?
A:We are factory.
Q:How can I place an order?
A: You can contact us by email about your order details, or place order online directly.

---
