Basic Info.
Model NO.
Concrete Batching Plant
Machining Process
Vibrating Mixing
Vibrating Amplitude
1.2mm
Certification
ISO9001: 2000, CE
Batching Control Meter
Made in China
Connecting Cable and Accessories
Made in China
Hoisting Mixer System
Discharge Height 1.7m
Aggregate Hoisting and Measuring System
Made in China
Transport Package
Naked in Container
Production Capacity
5000PC/Year
Product Description
Product Detail 1,Planetary reducer; 2,Easy-operation with imported SCHNEIDER and SIEMENS components in PLC+PC model; 3,High efficiency with 120m3/h productivity; 4,Stable pneumatic system; 5,Feeding method: belt feeder; 6,Cement silo:60ton-200ton, split for shipping conveniently; 7,High-resistant manganese steel alloys; 8,Produce JS2000 concrete mixer in our own workshops.

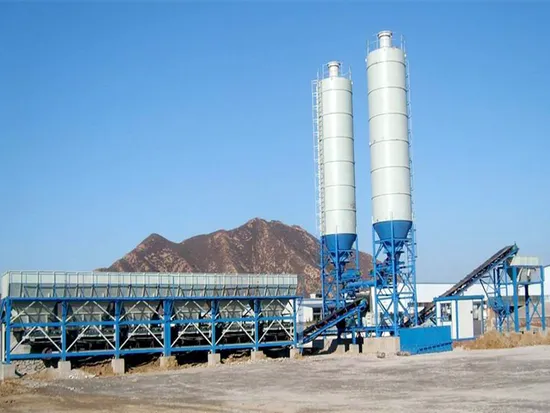

| Product Name | Heavy Duty 120m3 ready mixed concrete batching plant with sicoma mixer |
| Application | Building,Road,Railway,Bridge etc.Construction Project |
| Productivity (m3 /h ) | 120 |
| Mix Recycle Time(s) | 60 |
| Mixer Model | JS2000 Concrete Mixer |
| Batching Machine Model | PLD3200 Batching Machine |
| Discharging Way | Auto Hydraulic |
| Aggregate Feeding Method | Belt Conveyor |
| Control System | Centralized Computer Control |
| Cement Silo | 100T/200T/As Requirement |
| Product Keywords | 120 m3/h wet ready mixed concrete batching plant |
Parameter
| | Type | HZS120 |
| The whole plant | Theoretical productivity (m3/h) | 120 |
| Standard discharge height(m) | 4 |
| Working cycle time(s) | 120 |
| Outline dimensions(L*W*H mm) | 55885*20200*21600 |
| Total installed power | 210 |
| The mixer section | Type | JS2000 |
| Batching machine section | Type | PLD3200 |
| Pneumatic system | Air compressor model | 1.8-7 |
| Rated exhaust volume(m3/min) | 1.67 |
| Rated exhaust pressure(MPa) | 0.8 |
| Motor power(KW) | 15 |
| Weighing system | Gravel metering accuracy range (kg) percentage | +_2% |
| Cement metering accuracy range (kg) percentage | +_1% |
| Water metering accuracy range (kg) percentage. | +_1% |
| Additive metering accuracy range (kg) | +_2% |
| Model | HZS25 | HZS35 | HZS50 | HZS60 | HZS90 | HZS120 | HZS180 |
| Capacity (m3/h) | 25 | 35 | 50 | 60 | 90 | 120 | 180 |
| Mixer | JS500 | JS750 | JS1000 | JS1000 | JS1500 | JS2000 | JS3000 |
| Aggregate batcher | PLD1200 | PLD1200 | PLD1600 | PLD1600 | PLD2400 | PLD3200 | PLD4800 |
| Discharge height (m) | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | 4 | 4 |
| Cycle time (s) | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Weighing accuracy | Aggregate | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 |
| Cement | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 |
| Water | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 |
| Additive | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 |
