LED Video Wall Processor Novastar Vx400s-N All-in-One Controller

Product Description

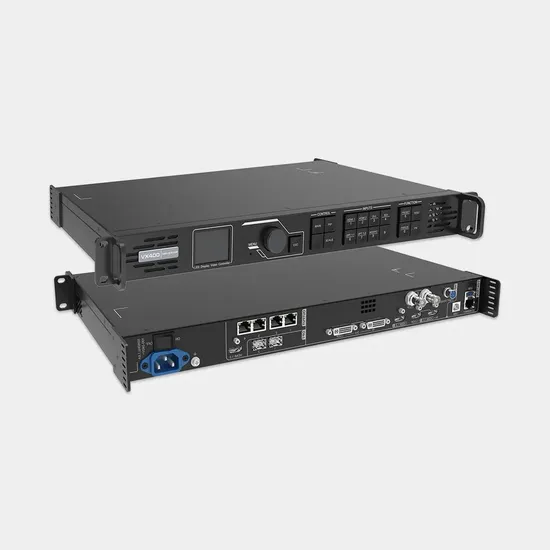

NovaStar VX400s-N Processor

The VX400s-N is a new all-in-one controller that integrates video processing and video control into one box. It features 4 Ethernet ports. A VX400s-N unit can drive up to 2.3 million pixels, with the maximum output width and height both up to 3840 pixels. The VX400s-N is capable of receiving a variety of video signals and processing high-resolution images. In addition, the device features stepless output scaling and chroma calibration and more, to present you with an excellent image display experience.


The VX400s-N is NovaStar's new all-in-one controller that integrates video processing and video control into one box. It features 4 Ethernet ports. A VX400s-N unit can drive up to 2.3 million pixels, with the maximum output width and height both up to 3840 pixels.
The VX400s-N is capable of receiving a variety of video signals and processing high-resolution images. In addition, the device features stepless output scaling and chroma calibration and more, to present you with an excellent image display experience.
Thanks to its powerful video processing and sending capabilities and other outstanding features, the VX400s-N can be widely used applications such as rental, stage control systems and fin-pitch LED screens.
Further features:
- Input connectors 1x HDMI 1.3 (IN & LOOP) 1x HDMI 1.3 1x 3G-SDI (IN & LOOP) - Output connectors
4x Gigabit Ethernet ports
A single device unit drives up to 2.3 million pixels, with a maximum width of 3840 pixels and a maximum height of 3840 pixels. - Audio input and output
Audio input accompanied with an HDMI input source Audio output via a multifunction card Output volume adjustment supported - 2x layers
Adjustable layer size and position Adjustable layer priority - Output synchronization
An internal input source can be used as the sync source to ensure the output images of all cascaded units in sync.
- Powerful video processing
Based on SuperView III image quality processing technologies to provide stepless output scaling One-click full screen display Free input cropping - Easy preset saving and loading
Up to 10 user-defined presets supported - Multiple kinds of hot backup
Backup between devices Backup between Ethernet ports - Up to 4 units cascaded for image mosaic
Output image quality management
Brightness, saturation, contrast and hue adjustment - Pixel level brightness and chroma calibration
Working with NovaLCT and NovaStar calibration software to support brightness and chroma calibration on each LED, effectively removing color discrepancies and greatly improving LED display brightness and chroma consistency, allowing for better image quality.
- Multiple operation modes
Control your device as you wish via NovaLCT or device front panel knob and buttons.

Company information:
JINGCAN led factory's main products areconsist of rental led display, advertising led screen,
football stadiumperimeter, stage background video wall, traffic guiding display, special-shaped display like curve and round, led moving light, led Par light, led modules andlaser light, etc.
The outstanding features of our led products areenvironmental-friendly, energy-saving and long life-span. All of our LEDproducts have approved by CCC, CE, ROHS, FCC, ISO9001 quality certificates authorities.
Furthermore, our LED products were exported to more than 90countries till now such as Sweden, USA, Brazil, France, Japan, Thailand, Italy,Australia, Spain and etc. Those LED products were widely used in both indoorand outdoor places like hall, hotel, exhibition room, public square, symbols,building and TV stage background and etc.
JINGCAN LED FACTORY Main LED Display Product Lines - Automatical Machines
Qualification Honor:
Product Project:
Packing and Shipping:
Packing: Anti-shaking wooden cabinet/Air flight case/strong carton
Shipping port: Shenzhen, China
Shipping way:Air;Express;Ocean;Land Transportation
Delivery time: 7-15 working days after confirm receipt payment in advance.
Long working life: In the Maintenance period, free of all maintenance charge.After maintenance period only charge the material costs fees.
FAQ:
Q1. Can I have a sample order for led Screen? A: Yes, we welcome sample order to test and check quality. Both for LED moduel or
a whole screen.
Q2. What about the lead time? A:About 7~10 working days.
Q3. Do you have any MOQ limit for led light order? A: Low MOQ, 1 square meter or a moudle checking is available
Q4. How do you ship the goods and how long does it take to arrive? A: We mostly accectp FOB train term, but we can help you order and arrange shipping agent.
It usually take 20 30 day on sea. a few days for customer clearance
Q5. How to proceed an order for led Screen? A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products? A: Yes, we offer 2 years warranty to our products.
Q7: How to deal with the faulty? A: Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Our service:
1. Your inquiry about our products or the price will be replied within 24 hours!
2. We provide 2 years for warranty and lifelong maintaining, you will appreciate our warm after-sale service.
3. We will delivery goods as you demand, you can choose the cheaper and more convenient way!
4. Apart from the Outdoor LED Display, Visionled also can offer you LED Pharmacy Cross Display,
LED Flexible Display, Indoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs

---
