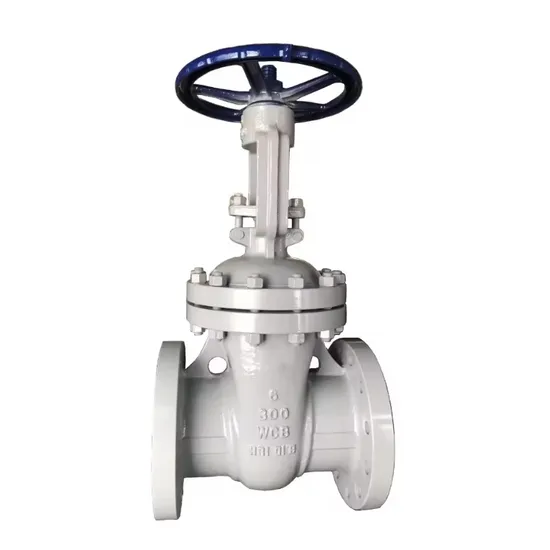

API/ANSI 150lb Cast Steel Flange Flexible Wedge Wcb Gate Valve Stainless Steel Industrial Valve Gate Valve

Product Description

Product Description

ANSI API6d 150# 300# 600# Wcb Gate Valve main material of parts
Body,Bonnet	ASTM A216 WCB/ASTM A351 CF8/ASTM A351CF8M
Stem	ASTM A76 420/ASTM A182 F304/ASTM A182 F316
Stem Nut	Brass
Disc	ASTM A216 WCB
Seat	13Cr/STM A351 CF8/STM A351 CF8M
Hand wheel	ASTM A47
Gasket	Graphite
Packing	Graphite
ANSI API6d ASME Class 150LB 300LB 600LB Wcb Gate Valve Standard
Design Standard	API600,API6D
Face to Face	ASME B16.34
Flange Standard	ASME B16.10
Testing Standard	API598

Company Profile Chengxin Valve Co.,Ltd. is a great factory specializing in manufacturing and selling valves and castings. It is located in Weizhuang industrial zone, which covers an area of more than 7000 square meters and a staff of over 400 people including various types of engineering,technical staff and senior management of more than 60 pesons. The annual out put is over 20000 tons. Both national and international standard products are produced. The national standard has 12 series,more than 3000 specifications. The products covers gate valve, globe valve, check valve, ball valve, butterfly valve, strainer, balancing vlave, safety valve, exhaust valve, drain cover, etc. The international standard include DIN, GOST(Russian standard), BS, ANSI, JIS. Many prodcuts have been exported to many countries such as Ireland, Peru, Russia, Pakistan, Korea, Vietnam, Indonesia and so on. A complete quality control system is set for each working procedure from raw material to finish products. Totally 28 tests are run through to ensure stable quality. Currently the modern physical and chemical laboratories has been built. The well-provided testing equipment has meet the exact quality standard requirement. We passed the authentication of ISO9001:2008 quality management system and ISO14001:2004 environment management system, EAC and WRAS certificats.
We passed the authentication of ISO9001:2008 quality management system and ISO14001:2004 environment management system, EAC and WRAS certificats. Exhibition OUR SERVICE
1. We promise that we will ship the goods on time.
2. We can customize your company logo on valve body.
3. We can do different colors according to your requirements.
4. We can produce different standards valves to different markets.
5. We provide perfect after-sales service and technical support. Our Advantages 1. 20 years of manufacturing and developing experience;2.A Strong R & D team;3.Service experience for thousands of customers at home and abroad;4.Export to 30 countries including Southeast Asia, East Asia, Eastern Europe and Central Asia;5.Three casting production lines with stable casting quality, high production efficiency and fast delivery time. Packaging & Shipping

Packing Details:	Plywoodcase ,Pallet	Customized
Delivery Details:	Generally it is 5-10 days if the goods are in stock. Or 20~45 days after receiving the payment.

FAQ 1.Can I have a sample order for valve?
A: Definitely Yes. We welcome your sample order for test and quality check. Mixed samples are acceptable.
2. Can you provide OEM or ODM service?
A: Yes, we have professional research & development team. The products can be manufactured as per your request.
3. Can you provide the relevant documentation and certificate?
A:Yes, we can provide you with the documentation and certificate you need , ISO9001:2000 international quality system certification, Of course we can also provide you the test Report; Certificate of Material Analysis; Certificate of Origin; and other export documents if required.
4. What is your terms of delivery?
A: We accept EXW, FOB, CIF, DAP etc. You can choose the one which is the most convenient for you.
5. What's the package and how do you ship the goods?
A: Usually sea worthy plywood cases. We usually ship by sea. Train and air delivery are also optional.
6. How to deal with after sales ?
A: warranty time : 12 months from the shipment ; and we will be responsible for all the quality problems. Longer warranty period could be provided with detailed request and discussion.
7. What is the average lead time?
A:For samples, the delivery time is about 2-5 days. For batch production, the lead time is about 15-30 days after receiving the deposit payment. We can provide production schedule and related photos every two weeks. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for production drawings. If our lead times do not work with your deadline, please send your requirements with your sale. In all cases we will try to accommodate our production plan to your needs.
8. Why choose us?
A:1 Genuine products with excellent quality and competitive price.
2,Cooperating with customers all over the world from more than 60 countries and regions, knowing the markets very well.
3,We have been specializing in flow control area for more than 18 years. Everyone can be rest assured working with us. 4,After-sale services will be highly-satisfying. Any problem and feed backs will be answered in short time.
9: How can I trust your company?
A: We are verified Golden supplier and creditable company on Made-In-China, we are focusing on the long term relationship with customers, we have worked with thousands of customers since company built 20 years ago, Including Fortune 500 companies. Customers always make highly complementary remarks.
10: How can I Contact you get photos and drawings?
Lisa
WhatAp:+86 18831965202
WeChet:+18831965202

---
