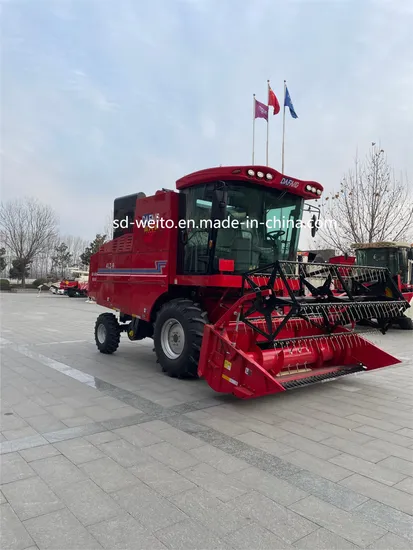

Combine Harvester Agriculture Machinery Wheat Harvester Harvesting Machine for Rice, Wheat, Soybean

Product Description

Agricultural Machinery Reaper Binder 4LZ-9 Wheat /soybean Combine Harvester

Model		4LZ-9
Type		Wheel self-propelled
Feed Rate		9 kg/s
Width of Cutting		2560/2750 mm
Stubble height		≤100 mm
Productivity		0.6-1.2 hectare/hour
Total Weight		5740 kg
Working Dimensions(L×W×H)		6700 ×3400 ×3380 mm
The model of engine		YC A05190-T300
Engine		diesel engine
Power		190HP
Oil consumption		25-35kgs/ hectare
Rated speed		2200 r/min
Gear-box		Mechanical (3+1)*2
Steering		Hydraulic
Running speed	I Gear	1.84-4.06km/h
	II Gear	4.42-9.79km/h
	III Gear	11.86-20km/h
	Back gear	3.94-8.74km/h
Minimum ground clearance		335mm
Unloading grain height		1750mm
Unloading type		Discharger Auger
The header auger		Platforms auger
Diameter of header auger		Ø500
The style of reel		Eccentric spring-tooth
Diameter of reel		Ø1000
Threshing roller		rasp bar and tooth bar
Minimum turning radius		4200-6500mm
Wheel track front/wheel track rear		1900-1810mm
wheel base		2800mm
Oil tank		235L
Hydraulic tank		32L
Grain tank		2CBM

Product Description

Production Introduction of harvester

1.strong threshing power

2.convenient maintenance

3.reasonable design structure

4.Self-propelled wheel type grain combine harvester

5.can harvest wheat ,rice,soybeans,rapeseed,corn kernel

Main Featuer of harvester

1.	Double-layered stepwise sieve for better cleaning , no grass,no chaff.
2.	Adopt 200HP engine and new transmission components,powerful and durable.
3.	Widen elevator,smoothly feeding,faster speed and more efficiency.
4.	Improve the power output components,the transmission is reliable and good quality.
5.	Optional sealed front axle can be installed to make the traveling system more reliable.
6.	Adopt visual images system to monitor grain tank and reversing,convenient,clear and safety.

Advantages of harvester
1.The header can be equipped with a quick-hook header, which is more convenient to connect the header and can be completed independently.
2.An anti-wrapping device is added on the right side of the reel, which greatly reduces the maintenance time of the product during the operation and improves the operation efficiency.
3.The engine power is increased to 200 horsepower and a multi-function switch is added. The horsepower can be varied between 125 and 200 horsepower to meet more needs of users; the power output pulley is changed from Φ248 to Φ272, and the walking speed is increased by 10%, and the work efficiency is higher.
4.The power output belts, walking belts, and threshing drum belts all adopt red label belts, which can increase the service life, reduce the replacement cycle, and improve the work efficiency.
5. The key parts such as the intermediate shaft, drum shaft, fan, and active and passive shafts of the bridge adopt Piler maintenance-free bearings to reduce user maintenance time and increase work efficiency.
6. The repeater adopts a disc-type repeater, equipped with impellers for harvesting rice and soybean repeater, which realizes multiple functions in one machine and creates higher profits for users.
7 Adopt a new type of arc cab, a new front face of the cab, increase the space of the cab, the cab is dust-proof, noise-proof and sealed, improve the quality of the cab seat, and improve driving comfort.
8. The use of a new type of control box, optional electronically controlled one-rod control, the electronically controlled control device integrates the lifting of the header, the lifting of the reel, the stepless speed change, and the electro-hydraulic assisted shifting in one, making driving easier and more comfortable Higher.
High Producity

1.Powerful engine

2.Modified gearbox

3.Wider conveyor

4.Long threshing drum

5.Efficient harvesting

Product Detailes of harvester
Packaging & Shipping
Delivery Time
1.10 to 20 working days after receipt of balance payment
2.The 40ft frame container should be used for harvester shipping.

Q'TY IN 40 HC
Qty' of Loading: 1 Sets/40'HQ
Loading into Container photos
OUR CERTIFICATE
ISO 90001 &CE Approval .
8.our main products :
it includes walking tractor (power tiller)8-25hp ,wheeled tractor ,driven by single cylinder diesel engine 15-30HP;crawler tractor (40-110HP),Wheel tractor driven by multi-cylinder diesel engine (20
-240hp).can match kinds of farm implements .
9.kinds of farm implements and tools
10.Questions
1)how long is the warranty time ? it is 12 months since the date of B/L ;
2)how long is the delivery time ? it is about 20-30days normally since the date of 30% deposit.
3)what is the payment terms? the L/C at sight or Payment in Cash by T/T is acceptable .
4)what is the service life ?it is more than 8 years ,if the baler has a good maintanence as the manual .
5)how to order the baler? if you need it ,contact with our business manager who will take you a good solutions as your requirements .
6)how about the spare parts ? can get the spare parts from the local dealer or agent ,or directly order it from our factory .

---
