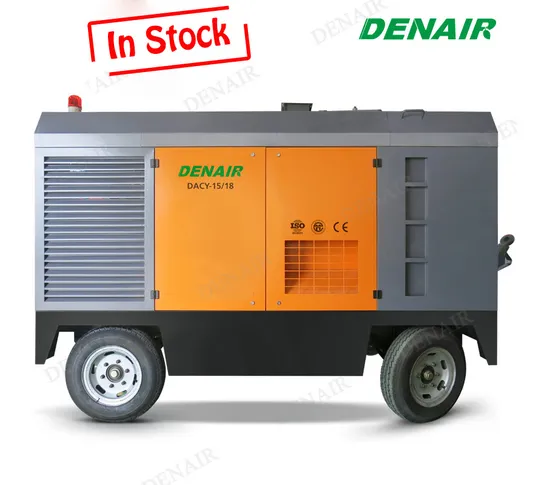

Portable Mobile Diesel Engine Driven Screw Air Compressor Mining Rock Drills

Product Description

Diesel Driven Portable Air Compressor Advantages
1.Use Germany KAPP machine and German manufacturing technique to process the compression element, the components manufactured to the highest standards and precision aligned roller-bearings ensure long service life with maximum reliability.

2.Heavy-duty CUMMINS diesel engine for extended operation.

3.Excellent components, for example, Germany MANN oil filter and Siemens electronics for high performance.

4.Automatic operation system helps the operator to master the operating skills quickly, unattended operation and remote control are available.

5.Conform to CE, ISO9001 and energy saving certification, etc.

6.Applications: mining, hydropower, oil and gas exploitation, borehole, shipyard, construction, chemical industry, quarry, sandblasting, pipeline pressure test, public works, etc.

Technical Parameters Of Diesel Driven Portable Air Compressor

DENAIR hot sale series diesel portable air compressors
Model	Machine						Diesel Engine
	Free Air Delivery		Normal Working		Dimensions	Weight	Manufacturer	Model	Rated
			Pressure		(without towbar)				power
	m3/min	CFM	bar(g)	psig	L*W*H(mm)	kg			KW
DACY0507	5.00	185	7	102	2210*1450*1365	900	Yanmar	4TNV94L	34.6
DACY0513	5.00	185	13	189	3020*1650*1730	1300		4TNV98T	64
DACY0707	7.50	265	7	102	3020*1650*1730	1300		4TNV98T	64
DACY0710	7.00	265	10	145	3020*1650*1730	1300		4TNV98T	64
DACY1008	10.00	375	8	116	3240*1880*2100	1800	Cummins	QSB3.9-C110-31	81
DACY1010	10.00	375	10	145	3240*1880*2100	1800		QSB3.9-C130-32	97
DACY1207	12.00	425	7	102	3240*1880*2100	1800		QSB3.9-C130-32	97
DACY1208	12.00	425	8	116	3240*1880*2100	1800		QSB3.9-C150-31	110
DACY1013	10.00	375	13	189	3240*1880*2100	1800		QSB3.9-C150-31	110
DACY1110	11.00	400	10	145	3240*1880*2100	1800		QSB3.9-C150-31	110
DACY1313	13.00	460	13	189	3500*2050*2300	2400		QSB5.9-C190-31	142
DACY1610	16.00	565	10	145	3500*2050*2300	2400		QSB5.9-C190-31	142
DACY1708	17.00	600	8	116	3500*2050*2300	2400		QSB5.9-C190-31	142
DACY1320	13.00	460	20	290	3500*2050*2300	2700		QSB5.9-C210-30	154
DACY1713	17.00	600	13	189	3500*2050*2300	3000		QSB5.9-C210-30	154
DACY1518	15.00	530	18	260	3500*2050*2300	3000		QSB5.9-C210-30	154
DACY2013	20.00	710	13	189	4230*1850*2280	4000		QSC8.3-C260-30	194
DACY2110	21.00	750	10	145	4230*1850*2280	4000		QSC8.3-C260-30	194
DACY2508	25.00	885	8	116	4230*1850*2280	4000		QSC8.3-C260-30	194
DACY2114	21.00	750	14	203	4230*1850*2280	4000		QSB8.3-C260-30	194
DACY2710	27.00	950	10	145	4520*2000*2350	4400		QSL8.9-C325-30	242
DACY2420	24.00	850	20	290	4520*2000*2350	5500		QSL8.9-C360-30	264
DACY2712	27.00	950	12	174	4520*2000*2350	5500		QSL8.9-C360-30	264
DACY3210	32.00	1130	10	145	4520*2000*2350	5500		QSL8.9-C360-30	264
DACY2325	23.00	815	25	363	4520*2000*2350	5500		QSL8.9-C360-30	264
DACY3425	34.00	1200	25	363	4275*2100*2205	6000		QSZ13-C550-30	410
DACY3330	33.00	1160	30	435	4275*2100*2205	6000		QSZ13-C550-30	410
DACY4510	45.00	1600	10	145	4480*2160*2980	6000		QSZ13-C550-30	410
DACY3335	33.00	1160	35	508	5100*2200*2870	7000		KTA19-C700	522
DACY3925	39.00	1375	25	363	5100*2200*2870	7000		KTA19-C700	522
*)Free air delivery in accordance with ISO 1217 :2009, Annex C: Absolute intake pressure 1 bar(a), cooling and air take tempetature 20 ºC.
Note: Skid-mounted type is available.
Tier-4 standard engine is also available to tailor.

*) Specifications are subject to change without prior notice

DENAIR Factory
DENAIR Hannover Messe 2017
FAQQ1: Are you factory or trade company?
A1: We are factory.
Q2: What the exactly address of your factory?
A2:No. 366, YangzhuangBang Street, Pingxing Rd., Xindai Town, Pinghu, Zhejiang Province, China
Q3: Warranty terms of your machine?
A3: Two years warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the Air Compressors?
A4: Yes, of course.
Q5: How long will you take to arrange production?
A5: 380V 50HZ we can delivery the goods within 10 days. Other electricity or other color we will delivery within 22 days
Q6: Can you accept OEM orders?
A6: Yes, with professional design team, OEM orders are highly welcome.

---
