Cloth Label Flexo Printing Machine

Product Description

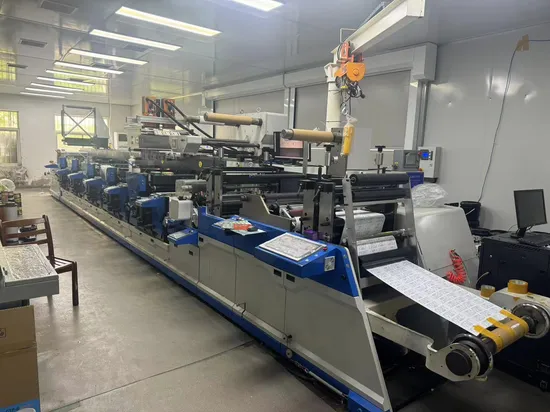

JD-P+ 330 combined machine with 5 offset units+2 flexo unit Detailed Photos
JD-P+ customized version combination printing machine
"Offset-flexo combination" offers the best solutions for label printing
* Combination of offset and flexo printing - for maximum versatility
* Developed from the sheet-fed offset press - for optimal print quality
* Flexo unit is suitable for a variety of substrates - for greater flexibility
* Flexible application of inline technologies - offers comprehensive solutions
* Pre-registration and auto registration system - easier to operate
JD-P+ customized version 520/420/330-series combination printing machine is the perfect combination of offset and flexo printing. The modules are specifically designed for the label printing industry to ensure extremely high print quality and have the ability to print on a wide variety of materials.
Substrate This machine is ideal for a variety of substrates from 0.02mm to 0.35mm including Cardboard,film, self-adhesive label, metal foil,cotton paper and etc. The wide range of acceptable substrates makes this a very versatile machine.
Product Description 1 Automatic web guide system
The ultrasonic sensor automatically corrects the left and right position when feeding paper or film.
2 Unique adjustment mechanism is designed to handle the most demanding registration requirements.
3 Quick change cylinder
4 Adjustment handles with servo drives
5 Inline flexo printing (option)
6 Optimized design of the offset ink unit
Our Advantages 1 Offset-flexo combination
Offset and flexo printing units can be customized upon request.
The offset printing unit was developed from the sheet-fed offset printing machine. The unique design of the ink unit allows for the ink and water to be balanced and stabilized quickly.
2 Get the highest print quality
Pre-registration system and auto registration system - With the pre-registration system, the plate roller will automatically search for the zero position for registration. Consequently, this system makes it possible to achieve faster changeover time and reduce material loss. The printing process needs no manual adjustment to ensure the best registration. The automatic registration has an accuracy tolerance of 0.01 mm.
Flexible application of inline technologies - Cold foil stamping, laminating and coating can be used for different product requirements.
3 Higher degree of automation makes it operator friendly
JD-P+ series machine automation components include: pneumatic roll lift on unwind station, automatic web guide, web break monitoring, automatic adjustment of printing pressure, automatic calculation of the plate length and automatic print registration. In addition, the ink-water balance can also be adjusted to the machine speed automatically.

Technical Parameter:

Model	JD-P+ 330
Printing Speed	120m/min
Printing Colors	5 offset units+2 flexo units
Max. Printing Repeat length	600.075mm(189 Teeth).
Min. Printing Repeat length	428.625mm(135 Teeth).
Max. Web Width	330mm
Max. Printing Width	315mm
Printable Thickness	0.02-0.35mm
Max. Unwind Roll Diameter	1000mm
Max. Rewind Roll Diameter	1000mm
Cold Foil Stamping: Max. Unwind Roll and Rewind Roll Diameter	400mm
Offset Plate Thickness	0.30mm
Flexo Plate Thickness	1.14mm
Blanket Thickness	1.95mm
Margin	3mm

Remarks: 1 Basic machine and equipment

No.	Equipment	Qty.
1	Unwind unit	1
2	Web-guider	1
3	Tension control	1
4	Video inspection	1
5	Rewind unit	1
6	Master control cabinet	1

2 Offset printing units

No.	Equipment	Qty.
7	Offset units	5
8	Auto registration for printing	5
9	Remote ink control	5

3 Flexo printing units

No.	Equipment	Qty.
10	Flexo units	2
11	Auto registration for printing	2

4 Drying equipment

No.	Equipment	Qty.
12	Dryer UV (traditional UV)for flexo units	2
13	Dryer UV (LED) for offset units	5

5 Ancillary Equipment

No.	Equipment	Qty.
14	Alcohol box	1

6 Options

No.	Equipment	Qty.
15	Bending Machine	1
16	Plate installation machine	1
17	Corona	1
18	Dust remover	1
19	Turn bar	1
20	Cold foil	1
21	Delam/relam	1
22	Sleeves for offset units	3 sets
23	Anilox rollers for flexo units	4 pcs

Company Profile Warmly welcome to visit our factory!
FAQ 1 Price or Quotation of this machine
It is custom machine!
So,please directly tell us:
the pictures of your label;
Printing material;
All related requirements!
Then,
we quote according to your requirements!

---
