Fb673PV MPPT LCD Current Voltage Multimeter Digital Meter 800W Solar Module Maximum PV Solar Panel Tester

US$75.00
1-99 pieces
US$36.50
100-499 pieces
US$34.50
500-999 pieces
US$32.50
1,000+ pieces

Basic Info.

Model NO.
FB673PV
Accuracy
0.5%~1%
Power Source
DC
Range Conversion Type
AUTO RANGZ
Display
Large LCD (52 * 66mm)
Ovecategory
Cat 0 60V
Product Name

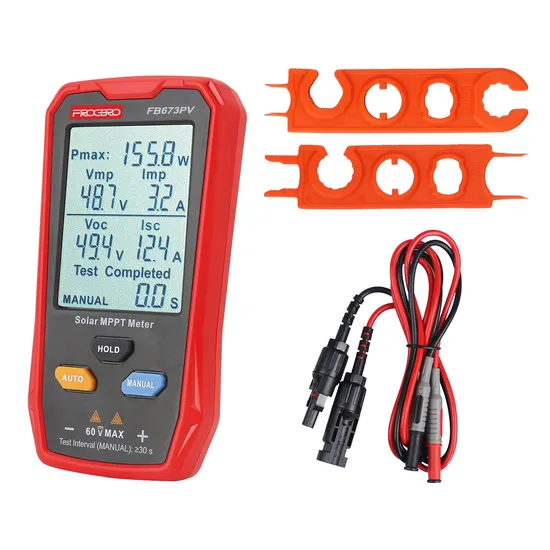

Fb673PV 800W MPPT LCD Solar Panel PV Tester
OEM
Yes
Controller Type
MPPT
Voltage
12-60V
Color
Red+Grey
Max Power Measurement
5~800W
Power Supply
No Battery Needed, Powered by Solar Panel
Current
0-35A
Customized Support
OEM, ODM
Transport Package
Color Box
Trademark
FROGBRO
Origin
China

Product Description

Product Description FB673PV solar MPPT meter can effectively identify any abnormalities in solar panels by testing their maximum power, peak power voltage, peak power current, open circuit voltage, and short circuit current. Featuring a spacious screen and automatic measurement capabilities, this device conveniently displays all measurement results simultaneously. Its portable design enables easy carrying, greatly enhancing the operational and maintenance efficiency for photovoltaic manufacturers, installers, and end users.
Max power measurement 5800W ±(1.0%10)
Max power current(DC) 035A ±(1.5%5)
Max power voltage(DC) 1260V ±(1.5%5)
Open circuit current(DC) 1260V ±(1.5%5)
Short circuit current(DC) 035A ±(1.5%5)
Display Display
Reverse polarity
connect Protection
√
Over voltage protection √
Over current protection √
Over temperature protection √
Over power protection √
Manual/Auto MPPT test √
Data hold √
Power supply No battery needed, powered by solar panel
Ovecategory CAT 0 60V
Certificate CE, cETLus, RoHS
1. Large LCD with multiple readings:
A single measurement that displays all essential test values can significantly enhance work efficiency. 2.Portable and lightweight design:
With its portable and lightweight design, this meter provides operators with convenience and ease of use, making it an incredibly versatile and indispensable tool for a wide range of tasks. 3.Equipped with MC-4 solar panel connector:
With the MC-4 connector already included, there is no need for additional solar panel connectors. This enables quick and efficient measurements to be performed effortlessly. 4.Power supply:
There is no requirement for batteries as the measurement can be effortlessly performed for extended periods. Packing & Delivery Company Profile FAQ 1. who are we?
We are based in Zhejiang, China, start from 2009,sell to Western Europe(35.00%),North America(30.00%),South America(20.00%),Southeast Asia(10.00%),Oceania(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Multimeter; Soldering Iron; Remote Control; Pyrography Machine; Smart Home Products, PCBA
4. why should you buy from us not from other suppliers?
We have 20 years' experience in electronics production. We have our own engineering team. We have our own factory. We understand the market very well and always offer you competitive products. We are frank people doing frank business.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,DDU,Express Delivery
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
