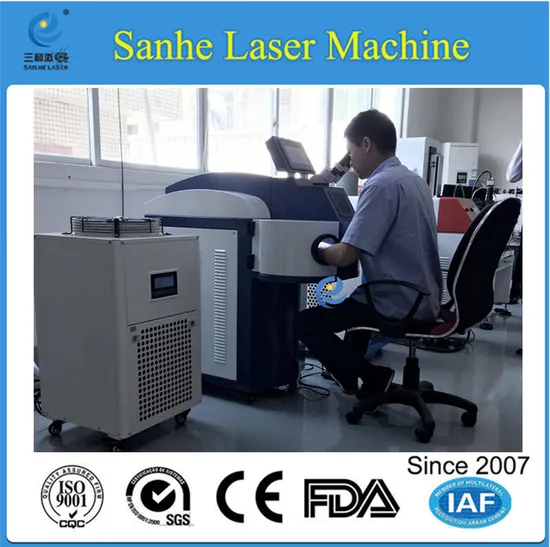

200W Jewelry Laser Welding Machine and Silver Earring Laser Spot Welder

Product Description

Manual jewelry laser welding machine for metal
1. With 24 hours of continuous operation, stable performance of the whole machine, electric adjustable beam ex pander,
2. The user-friendly design, in line with ergonomic, working long hours without fatigue.
3.10Xmicroscpoe system based on pioneered the use of high definition CCD observation system to ensure spot effect in appearance.
4. Use7-inch LED screen, able to switch in Chinese and English freely, pace with the international market.
Technical Parameters

Model	3HE-SS200W
Laser power	200W
Laser wavelength	1064nm
Single pulse maximum energy	90J
Laser types	YAG
Laser welding depth	0.1-3mm
Pulse width	0.1-20mm
Combo laser welding frequency	0-50Hz
Spot size adjustable	0.2-3mm
Machine power consumption	≤6kw
Electrical requirement	AC220V±10%/50Hz30A
Cooling method	Water cooling
Observing system	CCD10xmicroscope
Protective gas	Argon
Host system size	1220×1000×600mm

Laser welding machine video link:

Gold/Silvery jewelry laser spot welding	https://sanhe-laser.en.made-in-china.com
Laser welding stainless stell plate	https://sanhe-laser.en.made-in-china.com

PAYMENT 1. The TT, Western Union, LC, Cash payment is available.
2. We have the machine in stock. Due to the voltage and mold difference, we need around 7-15 days to send out the machine.
We will notice you if there is the special circumstance. DELIVERY TIME 1. We can send out the machine within 7-15days after received the first payment.
2. The machine will be ship to you by sea shipping or plane. Please tell us your sea port or air port name so that we could quote you the freight.
3. You can also buy the insurance for the transportation.
4. We can also provide you door to door service, including custom clearance and tracking transportation in your country.
WARRANTY 1. All our machine have 1 year free warranty, during the warranty time, all the broken parts(not caused by man factor) can be changed free.
2. We can send our engineer go over sea for adjusting the machine and training your worker in your plant.
3. We have 24 hours hot line and email to help you to resolve the problem within 3 hours.
