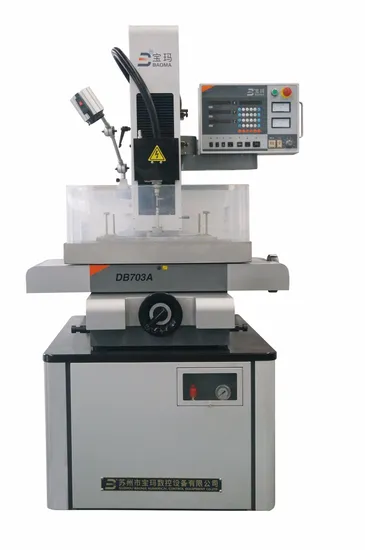

Small Hole EDM Machine Bmd703-400

Product Description

Table Size: 590x410mm
Table Travel: 500x400mm
Drilling depth: 0-300mm
Drill Diameter: 0.2-3.0mm
Drill Speed: 60mm/min
Small Hole Drilling EDM Machine (BMD703-500) characteristics:
* Can drill deep hole with diameters 0.3mm ~ 3mm (the depth-diameter ratio is 300: 1)
* The speed of drilling hole is 30mm~60mm depth per minute (it is different for different material)
* Can drill wire-cut starting hole, filter hole, jet hole, gas hole, group holes and hole of super depth etc.
* Can drill small holes on the various conductive materials, even semiconductor material, especially stainless steel, chilled steel, copper, aluminium and hard alloy etc
* Can drill on oblique and curved surface directly
* Can easily erode the drill and screw tap etc which is broken in the workpiece and not destroy the screw thread of the holes
* The working water can be normal water or saponification fluid and no pollution is brought
* The operation is easy and convenient
* X, Y, Z axes have digital display devices
* Z axis has the function of setting depth
Main performance indexes and technical requirements.
2. Basic configuration:
A. Three axes have digital displays; It is consistent with operation
B. Z axis uses linear guide rail (driven by the step motor with 5 phases 10 beats), it is driven by DC motor
C. The rotary head is of straight gear transmission, its volume is small
D. The super large scales integrate circuits make the impulse power supply reliable
E. The multiple power supply of high and low voltage and high-power VMOS field -effect transistor
F. The double Z is moved by motor
G. The operate-control box is adjustable, it is fully considered to convenience of operator
H. It contains the operation and control mode of BMD703-400
I. The specialty plunger pump, thread gap filter
J. The marble working table
K. The stainless fixtures
L. The accessories and consumable parts
M. The processing polarity can be changed
N. The processing stability is adjustable

Item	Unit	BMD703-400
Worktable size (L×W)	mm	486×310
Table travel(X×Y)	mm	300×400
Z axis travel	mm	300+320
Max. drilling depth	mm	0~300
Max. drilling speed	mm/min	60
Max. working current	A	30
Electrode diameter	mm	0.2~3.0
Load of table	Kg	300
Working solution		water/saponification
Working reservoir capacity	L	25
Power supply		380V/50Hz
Max Power consumption	KVA	3.5
Machine dimensions (L×W×H)	mm	1060×750×1700
Package dimensions (L×W×H)		1300×1040×2030
Machine weight	Kg	900
Controller type		Automatic Z axis
Digital display		X, Y, Z axis
Function of setting depth		have

---
