China Automatic MDF Electrostatic Powder Coating Equipment MDF Powder Coating Line Manufacturer

US$45,000.00-90,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
XT-MPCL2023
Type
Coating Production Line
Coating
Powder Coating
Substrate
Steel
Certification
CE, ISO, SGS
Condition
New
Advantage
High Effective
Feature
Automatic
Keyword
MDF Powder Coating Line Manufacturer
Usage
for MDF Powder Coating
Yield
Over 99.8%
Transport Package
Container/Carton/Wooden Case
Specification
customized
Trademark
XINTU
Origin
Jiangsu, China
HS Code
84243000
Production Capacity
5 Sets/ Month

Packaging & Delivery

Package Size
55.00cm * 55.00cm * 70.00cm
Package Gross Weight
50.000kg

Product Description

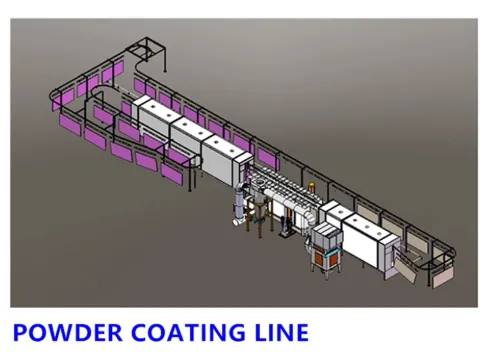

Automatic MDF Powder Coating Line Manufacturer
1.BRIEF INTRODUCTION
The MDF powder coating line is new invented instead of painting line for it is much more environmentally friendly and the technology is becoming much more advanced.
2.TECHNOLOGY PROCESS
Loading>Preheating>Powder coating>Powder curing>Cooling>Unloading
3.TECHNOLOGY INTRODUCTION
3.1PRE-HEATING OVEN
Voltage and Frequency AC 380V 50/60HZ(CUSTOMIZED) 3 phase
Oven body Inner:Galvanized sheet
Outside:Galvanized sheet with powder coated
insulation 100mm Rock Wool
Size according to your MDF board size and conveyor speed
Heating Infrared lamp heating
Heating tempreture 80-120ºC(adjustable)


3.2 Powder coating system
Material cold-rolled sheet/stainless steel/PP(Customized choice/PP is the best choice)
size depends on the MDF board size and conveyor speed
Input Voltage and frequency AC 380V 50/60HZ 3 Phase
Powder coating gun WX-101 Automatic powder coating gun
reciprocator 1500/2000/2500mm stroke height
recycle mono-cyclone system with secondary filter recycle
Control PLC control
powder supply powder center(with feeding and recycle two functions)


3.3powder curing oven
Material gavalnized sheet
size according to MDF board size and conveyor speed
Powder curing method Infrared lamp curing
Tempreture 100-150ºC(adjustable)
Rock wool 100mm/100kgs

3.4Conveyor system
size according to your need
type QXG series(according to your products' size and weight)
Driving device High effective( speed adjustable)
Accumulation chain available according to customer's requirement
Control automatic control

4.MDF FINISHING PRODUCTS
5.Packaging and shipping
Packaging:sea-worthy packing including carton,wooden case,wrapping film and your expected one
Shipping:by sea to your nearest seaport or your expected way
6. Our Service
Engineer are available for serve machinery install and train overseas.
7.Company information
Jiangsu xintu machinery Co.,Ltd is professional powder coating line manufacturer with over 10 years export experience and is always learn from world's advanced technology.
We have over 25000 spuare meter area and have 10 production lines and over 100 workers.
Our machines have passed the CE, SGS ISO9001 certificate that can meet customer from all over the world requirement.
If you have any need for the line, please don't hesitate to contact with us and we are willing to make design drawing to you for free.

CONTACT
Jiangsu Xintu Machinery Co.,Ltd
Contact :Tom Feng(SALES MANAGER)
TEL/:0086 17131159740
Website : xintu2011.en.made-in-china.com
Add : JiangFeng Rd15, Binhai District, Qidong,Jiangsu,China
