Welcome to visit

Galvanized Steel Aluminium Zinc Window Panel Door Frame Roll Forming Machine

US$15,000.00 1 Set (MOQ)

Basic Info.

Model NO.
XB-DB
Tile Type
Glazed Steel
Certification
CE, SGS
Condition
New
Customized
Customized
Usage
Door
Transmission Method
Machinery
Raw Material
PPGI
Control System
PLC(Imported Brand)
Color
Client′s Request
Core Selling Point
Easy to Operate
Cutting Blade Material
Cr 12 MOV
Transport Package
Bare Covered, with Waterproof Cloth and Stow-Wood.
Specification
5.8*1*1.2m
Trademark
XINBO
Origin
China
HS Code
8455221000
Production Capacity
500sets/Year

Product Description

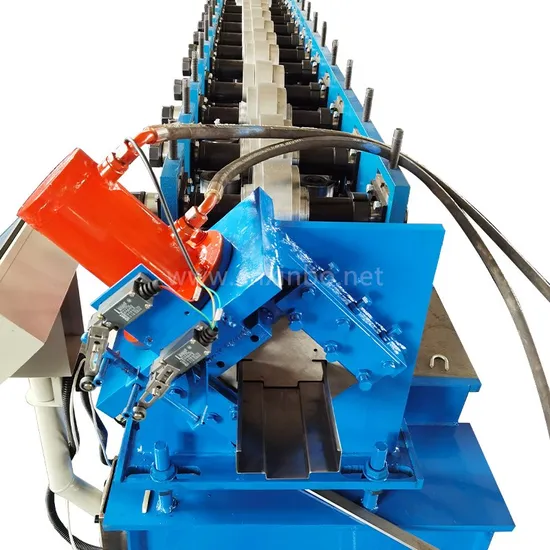

Door Frame Machine
Product Description
The door frame roll forming machine consists of a series of rollers that gradually bend and shape the metal sheet into the desired profile. It is designed to work with a range of different materials, including steel, aluminum, and copper. It is highly customizable, allowing manufacturers to produce door frames of various sizes and shapes.The door frame forming machine is capable of producing door frames of various sizes and shapes. The machine is highly customizable, with the ability to adjust the settings to produce frames of different thicknesses, widths, and lengths.
Main Parameter of Roll Forming Machine
Processing Material PPGI,GI,Aluminium
Input Width as customer needing
Formed Width as customer needing
Processing Thickness 0.6-1.5mm
Material of Rollers 45# steel,with hard chrome coated
Diameter of Shaft ะค70-80mm
Production Speed 0---15m/min
Roller Driven Decelerating Motor+Chain Transmission
Cutting Model Hydraulic Profile Cutting
Length Measurement Encoder
Control Style PLC
Operation Model Button + Touch Screen
Total Power 7kw
Voltage 380V 50HZ or at buyer's request

Detailed Photos

Certifications
Packaging & Shipping

Packaging Details
1. whole line is nude pancking with waterproof cloth in container2. computer control cabinet with card board and waterproof cloth3. accessories with card box
PortXINGANG.TIANJIN. CHINA
Payment Terms
30% deposit by T/T, and the rest 70% should be balanced by T/T before loading into container and delivery.
Company Profile
Botou Xinbo Machine Making Co.,Ltd, is a manufacturer of roof/wall panel roll forming machine, C&Z interchange purlin machine, decking floor machine, EPS sandwich panel machine, shutter door and door frame machine, and all kinds of steel plate making machines products with well-equipped testing and strong technical force.
Xinbo machine making company is a 100% manufacturer which established since 2014We are a leading manufacturer for steel plate coiling machinery, roll forming andautomatic production lines. The mainly products are used in steel structure industry andconstruction industry. such as C&z shape purlin roll forming machine. load-bearingbuildina deckina plate roll formina machine. wall and roof rollforming machine used forhigh-grade steel structure residences; glazed roof panels roll forming machine, ridge captile roll forming machine. all kinds of C and U shaped channels roll forming machine, dooframes roll forming machine. roller shutter door forming machine. as well as differentkinds of decoilers, bending machine, cutting machine, slitting machine and so on.
Trade Show

FAQ
Q1.How about your price?A:Although we are brand name products,but our prices are very favorable andcompetitive.?Customer from all over the world to purchase our products, becauseour best price.
Q2: What's your payment?
A: Our Payment could be
(1) 100% T/T
(2) 30% in advance,others before shipment.
(3)Advance, others letter of credit.
Q3.Could you special design and produce for you?A: Sure,we have all kinds of professional engineers,Could design and produce special product according to customer requested.Such as: special Size, special control, or OEM,etc.
Q4.Do you looking for Agent?A: Yes, we're looking for the agent all over the world, please contact us forfurther discussion.
