Z3040X13 Mechanical Radial Drilling Machine Radial Rotation 360 Degree Arm Rocker Drill

Product Description

Product Description

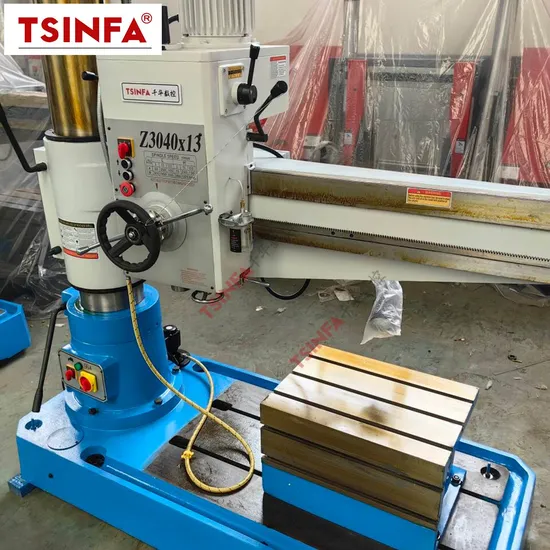

Application Z3040x13 Mechanical Radial Drilling Machine is mainly composed of base, inner column, outer column, rocker arm, spindle box and worktable. The inner column is fixed at one end of the base, and the outer column is sheathed outside, and the outer column can rotate 360 degrees around the inner column. One end of the rocker arm is a sleeve, which is set to move up and down the outer column. Because the screw and the outer pillar are connected together, and the lifting nut is fixed on the rocker arm, the rocker arm cannot rotate around the outer column, and can only be rotated with the outer column. The spindle box is a compound part, which is composed of main drive motor, spindle and spindle transmission mechanism, feed and speed changing mechanism, and operation mechanism of machine tool. The spindle box is mounted on the horizontal guide rail of the rocker arm and can be operated by the Handwheel to move along the rocker arm in the horizontal guide rail.

Motion Form: When processing, by the special tightening device will be fastened to the spindle box on the rocker arm guide, the outside column fastening inside the column, the rocker arm fastening on the outer column, and then drilling processing.
When drilling, the bit is rotated and the side is vertically advanced, the movement is as follows:
(1) The main movement of the radial drilling machine is the rotational motion of the spindle
(2) The longitudinal feed motion of the spindle
(3) auxiliary movement is: The rocker arm moves vertically along the outer column, and the spindle box moves along the direction of the rocker arm length, The rotary motion of the rocker arm and the outer column around the inner column.

Product Parameters

Specification	Unit	Z3032×10	Z3040×10	Z3040×13	Z3050×16
Max. drilling diameter	mm	Cast iron 32	Cast iron 40 Steels 32	Cast iron 40 Steels 32	Cast iron 50 Steels 45
Locking mode		mechanical	mechanical	mechanical	mechanical
Distance between spindle nose and working surface of base plate	mm	450-900	450-1000	600-1100	650-1100
Distance between spindle axis and column	mm	350-900	350-900	350-1100	360-1400
Spindle travel	mm	120	120	200	220
Spindle taper	morse	MT.4	MT.4	MT.4	MT.5
Range of spindle speeds	r.p.m	108-1000	108-1000	78-1200	78-1100 or 34-1200 (optional)
Number of spindle speeds		6	6	6	6 or 12 (optional)
Steps of spindle feeds		-	3	3	6
Radial rotation Angle	°	360°	360°	360°	360°
Main motor	KW	2.2	2.2	2.2	4
Lifting motor power	KW	0.75	0.75	1.1	1.5
N.W /G.W	KG	500/550	750/850	1300/1400	1700/1800
Overall dimensions	mm	1350*600*2000	1500*650*2100	1800*750*2400	2200*900*2430
Packing Size	mm	1450*700*2250	1600*750*2250	1950*900*2250	2280*1000*2380

Specification	Unit	Z3050×16	Z3063×20	Z3080×20	Z3080×25
Max. drilling diameter	mm	Cast iron 50 Steels 45	Cast iron 60 Steels 55	Cast iron 80 Steels 75	Cast iron 80 Steels 75
Locking mode		hydraulic	hydraulic	hydraulic	hydraulic
Distance between spindle nose and working surface of base plate	mm	700-1220	850-1580	850-1580	850-1580
Distance between spindle axis and column	mm	400-1600	500-2000	500-2000	500-2500
Spindle travel	mm	315	400	400	400
Spindle taper	morse	MT.5	MT.6	MT.6	MT.6
Range of spindle speeds	r.p.m	25-2000	16-1250	16-1250	16-1250
Number of spindle speeds		16	16	16	16
Steps of spindle feeds		16	16	16	16
Radial rotation Angle	°	360°	360°	360°	360°
Main motor	KW	4	5.5	7.5	7.5
Lifting motor power	KW	1.5	1.5	1.5	1.5
N.W /G.W	KG	2500/2800	5500/6000	5600/6100	7500/7900
Overall dimensions	mm	2500*1060*2800	3000*1250*3300	2980*1250*3300	3700*1450*3300
Packing Size	mm	2600*1100*2550	3250*1100*2250 3100*1280*1500	3250*1100*2250 3100*1280*1500	3750*1500*1850 3830*1150*2250
