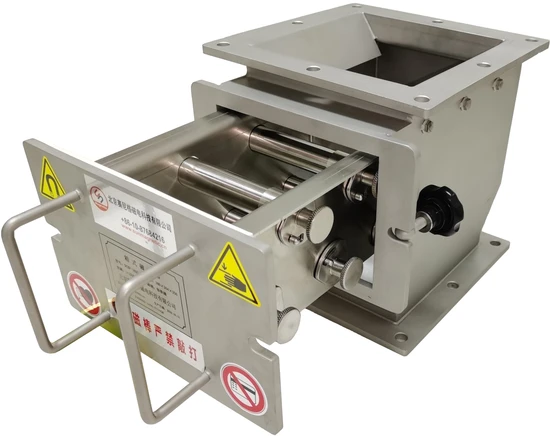

Advanced Drawer Magnetic Separator for Food and Feed Industry-Manual Cleaning Type

Product Description

Product Description
Drawer magnets used in gravity flow lines, quipped with the most powerful magnetic grid to maximize range of separation, Zig-Zag pattern forcing the products flow to contact the magnetic tubes.

Detailed Photos
Product Parameters
1) Magnetic Performance:8'000-12'000GS
2) Material of housing and other parts: 304 stainless steel/316 stainless steel
3) Surface finish: Sand blasting
4) Inside magnets: Strong permenent rare earth magnets
5) Working Temp.<: 80ºC, 100ºC, 120ºC, 150ºC,
Standard version

Model No.	Capacity(t/h)		Inlet	Dimension
	Volume-weight		BXBmm	Amm	Cmm
	r=0.25	r=0.50
SCXF-18S	6.0	12.5	180X180	465	400
SCXF-24S	11.5	23	240X240	530	500
SCXF-28S	15.5	31	280X280	530	500
SCXF-30S	17	34	300X300	572	600
SCXF-34S	18.5	37	340X340	612	600
SCXF-37S	21	42	375X375	642	600

Drawer version

Model No.	Capacity(t/h)		Inlet	Dimension
	Volume-weight		BXBmm	Amm	Cmm
	r=0.25	r=0.50
SCXF-18S	6.0	12.5	180X180	465	400
SCXF-24S	11.5	23	240X240	530	500
SCXF-28S	15.5	31	280X280	530	500
SCXF-30S	17	34	300X300	572	600
SCXF-34S	18.5	37	340X340	612	600
SCXF-37S	21	42	375X375	642	600

Certifications
Packaging & Shipping
SunMag provide different packing methods to protect the magnetic separator in good condition to suit for Air, Internationa express, Sea shiping methods.
Goods will be packed into carton, wooden pallet, or wooden case.
Or if the customer has specific requirements of packing, we will arrange the packing according to this.
Company Profile
Sun Magnetic Sys-Tech Co., Ltd founded in 2001 by the founder Mr. Sun Jianguo in Beijing, China, as a professional and well equipped manufacturer of permanent magnetic system, we have more than 20 years of experience in R&D, design and manufacture.
SunMag foucus on design an manufacture of magnetic separators to remove ferrous contaminants from dry solids(powder & granule), liquids and slurries in the processing industry, and provides customers with professional solution, top quality and great service.
With quality assurance of ISO9001 certification, our products are mainly exported to Southeast Asia, Europe, North and South America and Australia, and widely used in food industry, pharmaceuticals Top quality and continuous improvement are perpetual commitment to customers in the entire process of service.
Exhibitions Attended:
Domestic market:Lithium battery exhibition, Packing exhibition, Food processing exhibition, Plastic exhibition Pharmaceuticals exhibition, and so on.
Abroad market: GEAPS(USA), IAOM(USA & Southeast Asia),IPPE(USA), VICTAM(Europe & Thiland), IDMA(Türkiye), Eurotier(Europe),
For more specific information of our all kinds magnetic separator, you could visit our website.
Our Advantages
1) Strong rare earth magnets
2) Single, double and multiple drawer options
3) Food grad and sanitary grade options
4) Manual and pneumatic easy-clean options
5) Air-actuated and remote control options
6) Customized transitions and flanges

FAQ
Q1:How about the cleaning effect of SunMag Magnetic Separators?
A: ABOVE 99%.
Q2: How about your delivery date?
A: 15-40 days.
Q3: Do you test all your magnetic separtor before delivery?
A: Yes, we have 100% test before delivery
Q4: What is the usual payment method?
A: T/T, L/C, VISA, or other payment .
Q5: Could the magnetic separator be customized?
A: All the magnetic separator could be customized according to the customer's specific requirements.
Q6: Do you have a factory?
A: We are a manufacturer, all the magnetic separators are designed and produced by ourselves, and we have our own technical R&D team.
Q7: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

---
