Automatic Hourdis Cinder Kerbstone Holland Cement Manual Block Concrete Paver Brick Machine

Product Description

Product Description

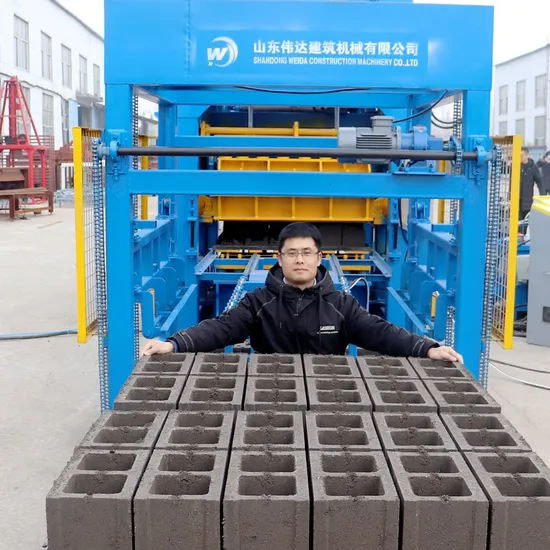

WEIDA QT4-24B Brick/Block Making Machine

WEDA QT4-24B Brick Machine---Main Parts
A	Mould: it can be changed when you want to make other bricks.
B	Brick receiver: it will transfer the brick out when the brick finished.
C	Hopper: its valume is equal mixer's valume
D	Pallets: it's made in fiber glass or wood and very important; The pallets will be loaded by man
E	Control station: all movement parts on this machine can be controlled on it.
F	Vibration box: the vibration box vibrate the mould and make brick.(35.5KN0

WEIDA QT4-24B Brick/Block Making Machine
Production Line

Main Parameter
Dimension of host machine	1860x1730x2580mm	Total power	19.7kw
Pallets size	850x550x20/25mm	Vibration force	35.5KN
Mixer model	JQ350	Voltage	220/380/415/440V
WEIDA QT4-24B Brick/Block Making Machine Production Line---Main advantages 1.This type is 2021 new design simple semi-automatic concrete block production line. 2.Compared with big automatic machine, it no need big area,operate very easy and much lower cost. 3.The capacity for standard hollow block about 4800 pcs per day. 4.Also can make hourdis block,color paver block,kerb stone,etc.easily by change mould.It is a multifunction concrete brick making machinery. 5.The hollow blocks machine motor all use famous brand.That to sure the bricks machine runs smoothly and extend the life.

Product pictures
WEIDA QT4-24B Brick/Block Making Machine Production Line
testing pictures
Brick/block mold and capacity
WEIDA QT4-24B Brick/Block Making Machine
Mold
This machine can make many kinds of block/brick as bellow:
1. hollow block
2. solid block
3. color paver
4. porous brick
5. road kerb
6. grassing brick
7. ring tree brick
8. hourdis block
and also our engineer can design your brick or block mold according to your request.
The material can be cement, sand, fly ash , cinder , coal gabgue and other industrial residue .
Add the color material feeding machine (color system ) can produce colored products .

WEIDA QT4-24B Brick/Block Machine Capacity
WEIDA QT4-24B Brick/Block Making Machine
Brick/block pictures
Pallet for brick/block machine
WEIDA QT4-24B Brick/Block Making Machine
Pallet
We have many kinds of pallet use for brick/block machine
1. fiberglass pallet
2. bamboo pallet
3. PVC pallet
If your local have pallet, that will be great; and we can give your few pallets free, you can get them from your local. Company Profile

After Sales Service
1) Send the technicians to carry out the installation and debugging of equipment for the foreign users with compensation.Countries or regions with unstable political situation or in the throes of wartime are not included in our plan.2) Train the users to command the equipment and guide them for safe production.3) Explain the routine maintenance of equipment carefully and remove common faults.4) We are responsible for all the repairs that caused by our quality problems within two year's warranty. 5) For some countries whose visas are difficult obtained, customers can also send their technicians to our company to receive free guidance and training.6) Accept suggestions for improvement put forward by customers an earnest way. In accordance with changes of the market, provide the products and services to meet the user's needs and create value for them.7) We will make every effort to solve your problems, and your success will add new glory to you.
8) We can also give you the videos and instruction about insallation and operation and you can give us video call when the machine faults you can't handle it.

---
