Mach3 Operated Granite Engraving Machine

Product Description

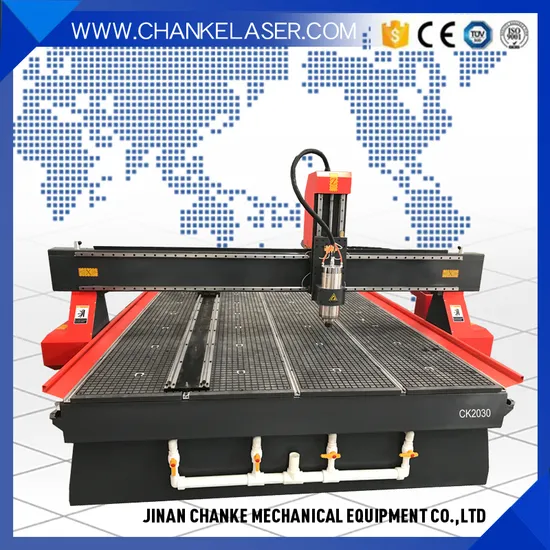

Introducing the 1300x2500mm CNC Marble Engraving Machine, expertly designed for precision stone and marble carving.
1. Featuring a T-slot mesa, our lathe bed provides unparalleled stability for seamless operation.
2. Equipped with a state-of-the-art water cooling system, this machine ensures extended cutter longevity.
3. Includes breakpoints and power failure continued carving functions for uninterrupted precision.
4. Incorporates a dust oiling structure, effectively guaranteeing long-term mechanical performance.
5. Powered by a high-power water-cooled brushless motor, it offers exceptional cutting capability and durability.
6. Main components sourced from top-tier international brands ensure stable and reliable performance.
7. Boasts high compatibility with CNC software such as Type3, Artcam, Castmate, Pore, Wentai, and various CAD/CAM programs.
8. Equipped with a sink and automatic water supply system for optimal cooling during stone and metal machining.
9. Built with a robust industrial-grade, heavy-duty all-steel welded structure treated for durability and non-deformation.
10. Exclusive triaxial dust protection and waterproof technology safeguard the guide rail, gear, and rack from dust and debris, extending the lifespan of essential parts.
Applicable Industry
Ideal for use in the stone industry, stone processing, arts, advertising, decoration, ceramics reliefs, and more.
Technical Parameters

Working size	1300×2500×200mm cnc stone machine
Spindle power	Water cooling 3000W
Spindle rotation	6000--24000rpm
Motor driver	Stepper motor driver(Chinese servo motor and Japan servo motor is optional)
Tool diameter	3.175, 4, 6, 12.7mm
Machine structure	Industry square tube structure
Transmission	High accuracy gear rack
XYZ rails	PMI square rails
Dust-proof system	XYZ high quality dust cover
Mechanical accuracy	0.03/300mm
Engraving speed	12000mm/min
Data transmission	PC connect directly
Support format	G code or HPGL
Working voltage	AC220V/50Hz or 380V/50Hz
Net weight	1500kg

Each stone CNC router machine is meticulously packaged with inner plastic wrap, a steel structure, and an outer plywood case. The inner package securely contains all parts, while the sturdy plywood case ensures the machine's protection during shipping.
The Advantages of Plywood Case Packaging:
Firstly, the plywood case offers superior compressive strength and bearing capacity, making it the preferred choice for heavy goods.
Secondly, its large board area and excellent structural integrity provide enhanced leakproof and waterproof qualities, simplifying operational processes.
Thirdly, the plywood case is fumigation-free, streamlining the import process with minimal hassle.

---
