US$500.00-3,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Throughput
200 Tests/Hour
Analysis Method
End-Point, Fixed-Time, Rate(Kinetic)
Sample Positions
37 Sample Positions
Reagent Position
28 Reagent Positions
Probe
Coating, with Anti-Collision Function, Liquid Leve
Probe Washing
Automatic Washing Interior and Exterior
Reagent Cooling
Refrigerated Tray with Independent Switch
Temperature Control
37+0.1ºC, Real-Time Monitoring
Cuvettes
48 Reusable Cuvettes, Optical Length 6mm
Mixer Probe
Independent Stirring
Washing
Automatic Cuvettes Washing
Transport Package
Cartons or Wooden Cases, Standard Export Packing
Specification
37 sample position 28 reagent position 48 reaction
Production Capacity
1000units/Month
Product Description
Product Description

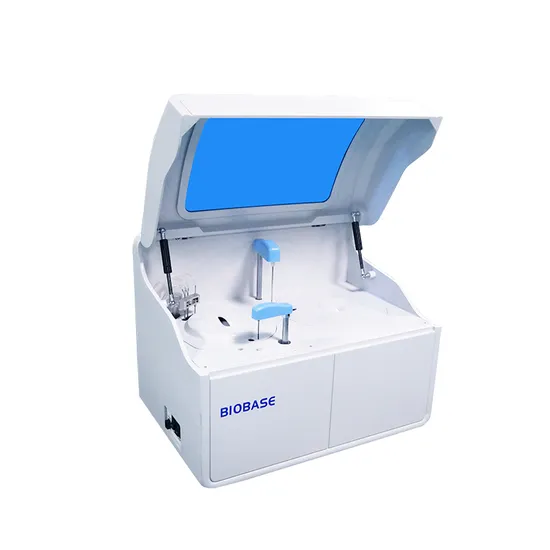

BIOBASE Chemistry Analyzer Support Languages Software Customization for free!
Real and detailed pictures as follow:
Reaction Module
Long lifetime halogen lamp,stable light source.
340,405,450,510,546,578,
630, 700nm eight wavelength filters.37'ºC stable incubation system.Reaction Module
Long lifetime halogen lamp,stable light source.
340,405,450,510,546,578,
630, 700nm eight wavelength filters.37'ºC stable incubation system.Accurate Sample &Reagent Adding System
Accurate sampling pump, sample adding0.1ul stepping, reagent adding 1ul stepping.Sample & reagent probes with liquid levelsensor and anti-collision functions.Functional Software
Sample information batch and combination input quickly and easily.24 hours working, with STAT function.Special designed software surface forengineer to monitor whole instrumentstatus clearly.
LlS system available.
Product Parameters
| Model | BK-200 |
Overall Performance | Throughput | 200 Tests/hour |
| Analysis Method | End-point, Fixed-time, Rate(Kinetic) |
| | |
| Sample & Reagent System | Sample Positions | 37 sample positions |
| Reagent Position | 28 reagent positions |
| Sample Volume | 2~70μl |
| Reagent Volume | 20~350μl |
| Probe | coating, with anti-collision function, Liquid level detection function. |
| Probe Washing | Automatic washing interior and exterior |
| Reagent Cooling | Refrigerated tray with independent switch |
| Reaction System | Temperature Control | 37+0.1ºC, real-time monitoring |
| Cuvettes | 48 reusable cuvettes,optical length 6mm |
| Mixer Probe | Independent stirring |
| Washing | Automatic cuvettes washing |
| STAT function | YES |
| Optical System | Light Source | 6V/10W halogen lamp |
| Spectrophotometry | Post-spectral spectrophotometry |
| Wavelength | 340,405,450,510,546,578,630,700nm |
| Absorbance | 0~3.0Abs |
| Calibration & QC | Calibration | Linear: K factor, 1-point, 2-point and multipoint linear Non-Linear: Spline, Polygon, Index, Ogarithm, Logit-4P, Logit-5P |
| Quality Control | Real-time QC, Westgard multi rule, Cumulative Sum Check, Twin Plot (2D) |
| Data Management | Software | Windows 7/8/10, 32or 64bit |
| LIS System | Bi-direction, support HL7 protocol |
| Interface | LAN port access |
| | Printer | External, multiple reporting mode available |
| Working Conditions | Power Supply | AC220V±10%,50/60Hz, 110V±10%,60Hz, 300W |
| Temperature | 10~30ºC |
| Water Consumption | Deionized water:7L/H |
| Humidity | 30-80% |
| Size & Weight | External Size (W*D*H) | 625*425*460mm |
| Net Weight | 36kg |
| Package Size (W*D*H) | 721*531*855mm |
| Gross Weight | 50kg |
