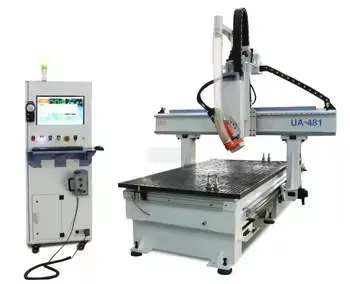

Rotary Spindle Ua 4-Axis Atc CNC Woodworking Machine with Sturdiest Bed Frame

Product Description

Rotary Spindle UA 4-Axis ATC Cnc Woodworking Machine With Sturdiest Bed Frame
Product Description
Rotary Spindle UA 4-Axis ATC Cnc Woodworking Machine With Sturdiest Bed Frame, adopts a heavy-duty bed, which has been tempered to enhance the load-bearing capacity and stability of the bed. Utilizing rotation and rotation, with a maximum rotation of 180 degrees, 2D, 3D, and 4D precision engraving can be performed. Due to the heavy weight of the rotation and the convenience of its rotation, the z-axis has been raised to allow for flexible arc cutting and engraving.
Product Parameters

SPECIFICATION
X-Y-Z axis working area	1220 x 2440x 200mm
Repositioning resolution	0.02mm
X-Y-movement	Rack and pinion, gear drive
Z movement	Ball screw drive
Guide	Linear 30 square/Taiwan
Max. speed	80m/min
Max. cutting speed	50m/min
Spindle power	9.6kw HSD air cooling
Spindle speed	18000- 24000 RPM
Inverter power	11KW
Tool Type	Linear tool changer with 8 tools
Drive motors	850W Yaskawa servo motor
Working voltage	AC380V/50-60Hz,3-phase
Command code	G code
Computer interface	USB 2.0
Table	Vacuum table
Control system	SYNTEC system
Pump	7.5kw wind pump
software	Artcam ,Alphacam copy
Dust system	dust hood for spindle
Standard enquipment included	1. Auto tool length compensation device 2. Manual oil lubrication system 3. Dust hood 4. Tool shanks 5.Position pins
Optional	1)Carousel tool magazine 2)Drilling boring system 3)Double working stations 4)Auto Loading&Unloading system 5)Becker pump

Detailed Photos
1) Most of the spare parts are imported :such as 9.6kw Italy HSD spindle, Taiwan sysntec 21A coontrol system,Japan Yaskawa servo motor,Taiwan original guide rail and rack .
2) The spindle can rotary 180 degrees.
3)The lathe is founded by high-quality heavy duty steel that ensures the high stability.Material is Stress relieved and welding,annealed for deformation free.The machine usually use for more than ten years.
4)Y axis uses double-motor in-phase drive that ensure the machine equality and smoothly running.
5)Spindle adopts Yaskawa servo motor made in Japan, which is very powerful and with little noise .It can work continuely without maintaining.
6)Intelligent protection for working table that can prevent misuse or software errors from damaging the surface. Its protection of step beyond the boundary avoids crashing while design area beyond processing area.
Our Advantages
1. Taiwan leading control system: The embedded numerical control system based on windows platform can upgrade the functions infinitively. Anti-interference design of the hard and soft ware synchronistically make sure of the reliable operation. Advance 3D space curve prediction algorithm can make sure of the evenness of polyline and the speed and precision of curve lines. Advanced file pretreatment function can correct the error in the files and is compatible with the process codes of multiple national and international software. (such as Mastercam, Typ3, UG, Artcam).
2. Its advantage is that this machine is durable and has high processing precision. Using this machine will greatly improve work efficiency. The gantry is welded by a thick seamless steel structure; it is treated by high-temperature tempering and vibration stress relief (VSR) to reduce residual stress; ensure good stability and not easy to deform. The machine bed and frame are welded with 12mm thickness of steel tubes. heavy-duty machine bed. Heated with 650 degrees temperature treatment and will not be deformed for 20 years and ensure stale moving. Welded steel T type structure as a whole,six-legged heavy-duty body, large bearing capacity with vibration Temper aging treatment ensures no deformation for a long time, avoid the broken knife, more stable, durable.
After Sales Service
Our service
1)One year for the whole machine without consumable parts.
2)We will provide the consumable parts at an agency price..
3)24hours online service, free technical support by whatsapp/wechat/call/emails.
4)Machine has been adjusted before delivery,operation disk is included in the delivery,if there is any other questions,please kindly contact us.
5)We have manual instruction and CD (Guiding videos) for software installation ,operation and machines using maintenance.
6)Engineers are avaliable to service machinery overseas.
Special services
(1)If customer have a specific request ,we can according to the clients parameters to customized machine .such as working area,optional accessories ,OME services.
(2)We are Made in china Trade Assurance Supplier.Place orders online ,get full protection under MIC third party guarantees.

FAQ
A. Communication:
1.We recommend the product that suits you in time, you only need to respond, we will give you a satisfactory answer.
2. 24hours online service, free technical support by whatsapp/wechat/call/emails.
B .Technical support:
1. Technical support by phone, email or whatsapp/Skype 24 HOURS
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas C. Quality assurance:
1. Machine Testing: To ensure the quality and stability of the machine, we use the most advanced production and testing equipment, to check the quality and performance of our industrial cnc equipment in each production step to ensure our equipment quality and stable performance.
2. Quality: In order to guarantee the performance and quality of our products, we strictly control all processes, assembly, our equipment quality, and delivery.
D. After sales services:
1. The machine has a one-year warranty, with spare parts provided within one year, and lifetime maintenance
2. Normal machine is properly adjusted before dispatch.You will be able to use the machines immediately.
You will be able to get free training advice towards our machine in our factory.
You will also get free suggestion and consulting, technical support and service by email/whatsapp/tel and lifetime technical support.
Packaging & Shipping
1.Whole film packaging machine
2.Anti-collision package edge
3.Fumigation-free plywood wooden box with iron binding belt
4.According to customer's requirements for loading the whole container or LCL at Qingdao port.
Company Profile
1. Jinan QUICK specializes in the research and development of woodworking engraving machines. It has been manufacturing for 14 years. Our company covers an area of 1600 square meters and has more than 200 employees. It has independent machine body processing workshops and machine assembly workshops. QUICK is a powerful company. Every production process of our machine has strict quality inspection and has obtained CE, ISO and other certifications.
2. Our woodworking engraving machines are sold to more than 90 countries worldwide, and we have agents in many countries such as the United States, Canada, Mexico, Malaysia, Indonesia, Russia, the United Kingdom, South Korea......

---
