Basic Info.
Product Name
4 Axis Foam Cutting CNC Router Machine with Rotary
Rotary Working Size
1000mm Diameter ; 2500mm Length
Flat Working Size
1500mm X 3000mm X 500mm
Table
Removable Flat Table
Rotating Spindle
0-180 Degree
Spindle
9kw Air Cooling Atc Spindle
Motor and Driver
Japan Yaskawa Servo Motor and Driver
Control System
4 Axis Ncstuidio (Weihong) with Screen
Transport Package
Wrapped with Protection Film,Fasten by Metal Wires
Specification
4300*2700*2400mm
Product Description

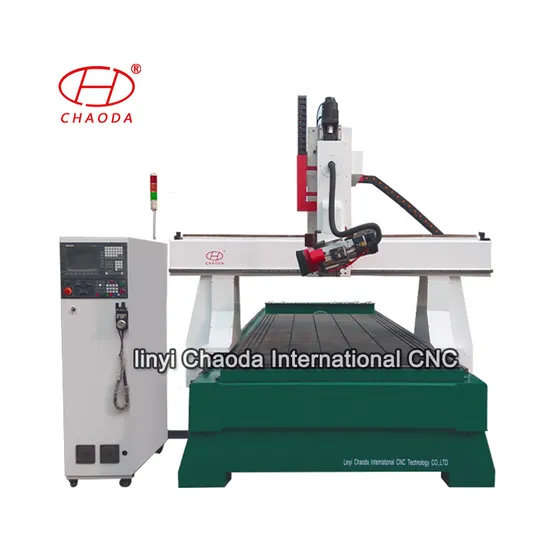

4 axis foam cutting cnc router machine with rotary axis
All machine parts adopt high configuration and top quality from all over the world, to make machine with high performance and durability. Machine is with a big rotary device, can make different kinds of 3d sculptures, statues, figures, idols, landscapes, stage props, park designs, etc. Machine is with a flat table, can do deep flat works, like 3d reliefs, 3d molds, door furniture, acrylic words/letters, landscapes , etc. Spindle rotate from 0 to 180 degree, can make arc-surface milling, bending surface machining for 4D jobs, like special shaped arts, bended doors or cabinets, also can make horizontal milling, cutting and drilling works. With linear type automatic tool changer, spindle change tools automatically,no need manual work,keep good working accuracy and increased working speed.
| Model No. | JCF1530L ATC |
| Flat working size | 1500*3000*500mm*180 degree |
| Rotary working size | 1000mm diameter, 2500mm length |
| Lathe bed structure | T-extrusion, Thick Steel frame |
| Table | Removable, T-slot with clamps |
| X structure | Rack and pinion, linear square rail |
| Y structure | Rack and pinion, linear square rail |
| Z structure | Ball screw, linear square rail |
| Reposition accuracy | ±0.02mm |
| Max. travelling speed | 0-60000mm/min |
| Max. working speed | 0-30000mm/min |
| Spindle | 9kw air cooling ATC spindle |
| Tool magazine | Linear type auto tool changer, 8 tools ability |
| Driving system | Japan YASKAWA servo motor and driver |
| Operating system | 4 axis Ncstudio with Screen |
| Operation language | G code |
| Working voltage | AC380V, 3-phase, 50Hz |
| Working materials | Eps foam, Styrofoam, Woods, MDF, Composite boards, Alucobond, PVC, Rigid plastics, Polyester, Fiberglass, Acrylic, Organic glass, Aluminum, etc. |
1. Sample testing before shipment
2. Provide 2 days free training for each machine
3. 12 months warranty for each machine
4. Friendly English version manual and operation videos for studying
5. Free technical support by phone,email,chatting or remote
6. Engineers available to service machinery overseas
>>
