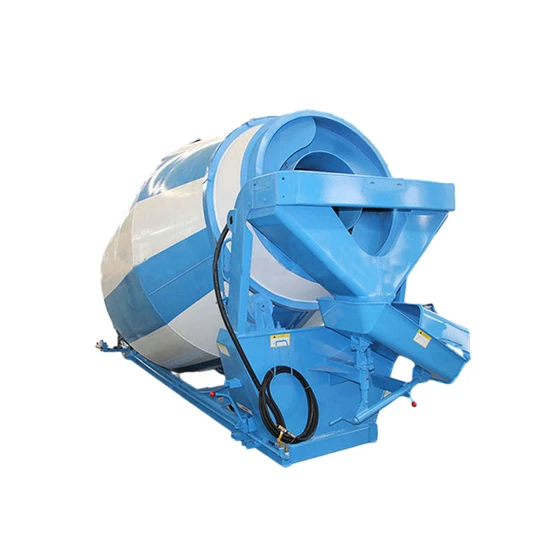

6m3 8m3 12m3 Mixing Tank Body Concrete Mixer Truck Cement Mixer Drum

Product Description

6/8/10/12/14/16cbm: Tailor Your Own Volume with Our Customizable Mixing Drum Solutions
1. Configuration:
The parameters provided below serve as a standard guide and are not set in stone. Should you find the configuration
suitable, you can proceed with your order directly. If you have specific requirements, we offer customization to ensure the product meets your unique needs.
2. Price:
The price listed in our product introduction represents a range. The final price will be calculated based on the
specific configuration you select and the quantity of your order. This allows us to offer you a tailored solution that fits your budget.
3. OEM & ODM:
We proudly support both OEM and ODM services. If you wish to brand the product as your own, we are here to assist. Additionally, if you're
curious about our capabilities or potential collaborations, we warmly invite you to explore these opportunities with us.
4. Service:
Regardless of whether you choose to purchase from us, we are committed to offering you exceptional service. Whenever you have inquiries, our team is ready
to provide clear and thorough answers to any questions you may have.

Mixing Capacity	12CBM
Geometrical capacity (m³)	20.5
Body thickness of cover / middle / rear(mm)	8\6\6
Concrete charging speed (m³/ min)	3
Concrete discharging speed (m³/ min)	2
Tank rolling speed (r/min)	0~14
Discharging residual ratio (%)	<0.9
Water Tank Capacity (L)	440
Model/Brand/Origin of hydraulic pump	089 / ARK / Italy
Model/Brand/Origin of hydraulic motor	090 / ARK / Italy
Model/Brand/Origin of reductor	P75S / TOPUNION / Italy
Other	With diesel engine
Recommended Wheelbase of chassis	6x4:4000mm+1350mm 8x4:1800mm+3200mm+1350mm
Color	according to the customer's request

Additional Information:
1. The product parameters mentioned above are common configurations and not fixed. Your specific requirements will dictate the final product configuration.
2. The final cost of all products hinges on the configuration you choose. For this reason, if you're interested in making a purchase, please reach out to us promptly.
About the Details:
To manufacture a superior product, attention to detail is paramount. We utilize top-tier components, such as
engines, hydraulic pumps, and speed reducers, sourced from renowned brands both within China and worldwide.
About the Factory:
Equipped with state-of-the-art machinery, our factory ensures high production efficiency that matches your order needs. As illustrated,
our production process is meticulously detailed. Moreover, our dedicated workforce is both serious and
efficient, providing reliable and assured quality.
First:
We request that you provide Auto CAD format drawings for the chassis.
Second:
Please provide the direction of the PTO flange turning (when facing it), the dip angle of the PTO flange, and its relative
position compared to the main beams. Additionally, refer to the attached drawings.

TIP: Regarding the direction of the turning(please face to it), dip angle, relative position and size of the PTO flangedisc.please you have to let your customer supply us,or the body will not work because of the wrong match. Since the PTO flange for each type of the chassis maybe different even the same Brand.There are two flange discs-one is on the transmission shaft,the other is on the PTO mouth.If you need us to supply the transmission shaft,please you have to ask your customer supply the above information to us,or you can let your customer buy locally.

Third:
Kindly supply the measurements for L1, L2, L3.
L1 measures from the rear of the cabin to the end of the main beam.
L2 extends from the PTO mouth to the end of the main beam.
L3 represents the usable length of the main beam.

TIP: Regarding L2 size,please you have to let your customer supply us,since we must design the transmission shaftaccording to L2 size(we have not found it on the drawings).As for the L1,L3,we can calculate them approximately,but can not be exact,since the sizes marked on the drawings are not the amplification of the same proportion when we enlarge it.So if your customer can measure it for us,it'svery helpful for us to design the good matched body.

Fourth:
For the EFI throttle connection of the engine, please share relevant photos.

TIP: Please it's better for you to ask your customer if their engine is the EFI throttle of the engine.If not, we should supply the matched accessories accordingly.Or please just let your customer to take the photos of it,our engineer can judge it from the photo.

Fifth:
We request additional photographs of the actual chassis, focusing on the area behind the cabin, from the cabin's rear to the end of
the main beam. These details will assist in ensuring precise customization.

TIP: Please it's better for you to ask your customer to take more photos of the chassis,it's very helpful for us to design and make the body.And then you can save more trouble when your customer install the body.

---
