Basic Info.
Application Area
Food, Food
Powder Mixing Machine
200L-2000L
Mixing Drum Shape
Circular Groove
Operating type
Continuous Operating
Transport Package
Plywood Wooden Carton
Production Capacity
30units/Month
Product Description
Robbion Mixer, Robbon Blender, Mixer , Blending machine,Horizontal Robbon mixer
Starbulks vanilla Bean powder Coffee bean Powder Ribbon mixer Blender

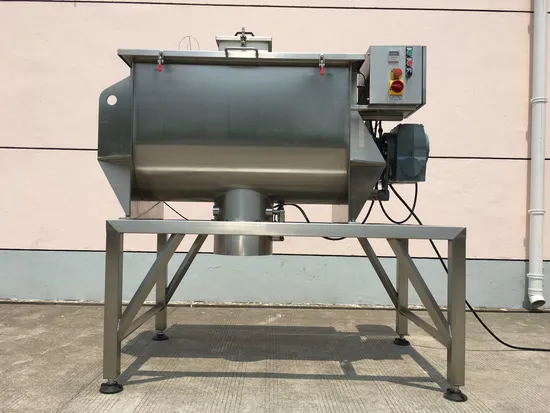

The ribbon blender mixes free-flowing raw materials within a U-shaped trough. A horizontal agitator consisting of precisely pitched inner and outer helical ribbons moves materials in a well-balanced axial and radial flow pattern. High-quality ribbon blenders feature tightly controlled clearances between the through surfaces and agitator tips. Good design and expert fabrication ensure fast repeatable mixing, easy clean-up, low maintenance, and long service life
Ribbon Blenders consist of U shape horizontal trough and specially fabricated ribbon agitator.Effective mixing load(40%-80%) High mixing speed and short uniform time. Mixing speed is around 5-15min
All stainless steel 304 material Full Mirror polished mixing tank inside, as well as ribbon and shaft
Safety switch, safety grid Discharge gate can be manual or pneumatically operated for direct filling in bags or dumping into storage bin
Standard Specifications:
| Model | DH-JD-200 | DH-JD-300 | DH-JD-500 | DH-JD-1000 | DH-JD-1500 | DH-JD-2000 |
| Full Volume | 200L | 300L | 500L | 1000L | 1500L | 2000L |
| Turning Speed | 46rpm | 46rpm | 46rpm | 46rpm | 46rpm | 46rpm |
| Mixing Vessel | 3mm | 3mm | 3mm | 4mm | 5mm | 6mm |
| Wall Plate | 6mm | 8mm | 8mm | 8mm | 8mm | 12mm |
| Main Shaft | 57*6 | 76*6 | 76*8 | 89*8 | 102*8 | 114*10 |
| Mixing Blade | 6mm | 6mm | 6mm | 8mm | 10mm | 12mm |
| Whole Length | 1400 | 1530 | 1700 | 2000 | 2400 | 2600 |
| Whole Width | 900 | 1000 | 1200 | 1300 | 1400 | 1500 |
| Total Height | 1450 | 1550 | 1700 | 1960 | 2050 | 2200 |
| Total Weight | 250KGS | 350KGS | 500KGS | 700KGS | 1000KGS | 1300KGS |
| Total Power | 4KW | 5.5KW | 7.5KW | 11KW | 15KW | 22KW |
| Air Consumption | 4-6Bars |
| Power Supply | 3 P AC208-415V 50/60HZ |
>>
