Sterilizing Grade 0.2 um PES Membrane Filter Cartridge For Sartorius Filter Water Filter PP Filter Cartridge PP folding filter element for water treatment

Product Description

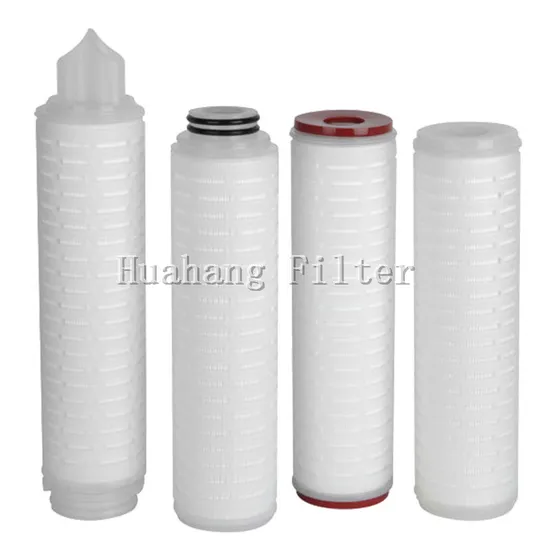

Sterilizing Grade 0.2 um PES Membrane Filter Cartridge For Sartorius Filter
Product Description:
Industrial PP/PTFE/PES/NYLON pleated membrane cartridge filter for SS water filter housing (10-50 inch)
Microporous pleated filter element, the main filter material is : Stainless steel wire mesh, sintered wire mesh,Polypropylene, Hydrophobic PTFE, Hydrophilic PTFE,Polyether sulfone, Nylon, etc.
Most of the raw materials are imported from abroad.Pleated filter element is a kind of deep filtration filter,
it is usuaslly used as liquid overheating,clarification, filtration and terminal filter.It has the following characteristics: the superfine polypropylene fiber membrane as the filtration medium, low pressure differential, high flux, good filtration precision, lower economic cost. The whole structure of polypropylene, end cover, housing and center pole adopts polypropylene material; It adopts the hot melt welding process, PP and PP melt bonding,without any binder. It has wide range of chemical compatibility, and also has a series of pore size and form a variety of interface.Material: Pleated filter, Support layer, End-cover, Inside & Outside cylinder are polypropylene.
Welding: It adopts the uniquehot melting methods, no glue, no foreign body fall off.
Typical use: Pharmaceutical, Food, Chemical, Electronics, Environmental protection, etc.
Microporous membrane pleated filter cartridge main features: High interception rate, high liquidity, low pressure differential and a wide range of chemical compatibility;
The production process adopts unique hot melting process technology, no any adhesive,
no foreign body release.
It can meet the food,beverage, beer, chemical, pharmaceutical and other industries production
requirements.
Specifications

aterial of Construction	Filter Media	Hydrophilic Polyethersulfone
	Support Layers	Polypropylene
	Micron Rating	0.1,0.2,0.45μm
	Inner Core	Reinforced Polypropylene
	Outer cage, End Cap	Reinforced Polypropylene
	Seal Method	Thermal Bonded, No Adhesives
	O-ring/Gaskets	EPDM, Silicone, Buna, Viton
Cartridge Dimensions	Outer Diameter	69mm (2.75")
	Inner Diameter	28mm (1.10")
	Length(Based on DOE END Cap)	5", 10", 20", 30", 40"
	Filtration Area (m2)	0.65m2 per 10"
Operating Conditions	Normal Operating Temp.	Up to 65ºC (140ºF )
	Max. Operating Temp.	85ºC(185ºF) at P<1.0 bar (14.5 psi)
	Forward Flow Direction	4.8 bar (70psi) at 25ºC (77ºF)
	Reverse Flow Direction	2.7 bar (40psi) at 25ºC (77ºF)
	PH Value Compatibility	2-13
	Sterilization Temp. Time	Steam Sterilization for 30minutes at 121+_2ºC, 100 cycles, Cumulative time: 8
Cartridage Safety	Endotoxin	<0.25 EU/ml
	Extractables	0.03g/10"

Application:
1. Micro-filtration in ultrapure water system
2. Beverage, wine, draft beer and other drinks
3. Plating solutions
4. Pharmaceutics
5. Chemical industry

6. Photoelectric industry
Polypropylene microporous membrane filter
Using the polypropylene composite membrane filter as the filtration material,
this filter is a kind of advanced and fixed type deep filtration filter cartridges,
the filtration micron is from 0.1um to 60um. The filtration membrane is not affected
by feed water pressure. Its unique advantages for low pressure differential, high flux,
good filtration precision, and low economic cost, it is favored by the users.

Hydrophobic PTFE filter
The filter medium is Hydrophobic PTFE microporous membrane filter: Strong hydrophobicity,
High holding rate, excellent chemical resistance and thermal stability, good strength,
impact resistance of the forward & reverse pressure.

Hydrophilic PTFE filter
The filter element medium for hydrphilic PTFE microporous membrane filter: The hydrophilic
stability, high entrapment rate, excellent chemical resistance thermal stability, good strength,
impact resistance of the forward & reverse pressure.

Polyether Sulphone Filter
The filter element is advanced in the world, the PES membrane micro opening rate is more than
80%, it has the unique microporous geometry type, it improves the filter cartridge filtration
efficiency and liquidity of the difficult solution. It is composed by PES membrane and the
polypropylene support material hot melting, it is no dung, also applicable for the strict chemical
and pharmaceutical industries.
The main features: Unique hydrophilic,not included the activated surfactant and surface
lubricant, it is provided high level filtration precision and flow rate for the filtration liquid.
It is applicable for wide PH range, low adsorption for the protein and the valuave heavy metal
biological, high entrapment rate, excellent chemical resistance and thermal stability,
good strength, impact resistance of the forward & reverse pressure.

Nylon filter
The filter medium is hydrophilic nylon microporous membrane filter, It is composed by nylon
membrane and the polypropylene support material hot melting, it is no dung, also applicable
for the strict chemical and pharmaceutical industries.
Main features:Hydrophilic stability, strong flexibility, high entrapment rate, excellent chemical
resistance, especially suitable for filtering of the organic solvent. Forward and reverse pressure
shock resistance.
Connection type
If you are intereated in our PP pleated filter cartridge or have any questions, please feel free to contact me.

ITEM	PRECISION	ADAPTOR	O-RING	LENGTH	METERIAL
	0.2UM	222	SILICON	10"	PP
	0.45UM	226	EPDM	20"	PTFE
	1UM	DOUBLE	VITON	30"	PESU
	5UM	OPEN END		40"
	10UM
	20UM

FEATURES 1. 100% pure polypropylene construction 2. Wide chemical compatibility 3. No lubricants or anti-static additives 4. Higher dirt holding capacity 5. Consistent filtration over the life of the cart ridges 6. Low pressure drop APPLICATIONS 1. Residential and commercial water treatment 2. Fine chemical, reagents, solvents, resins 3. Coatings 4. Edible oils 5. Liquors, juices, sugars 6. Make-up water Recommend products
