Basic Info.
Application
Enterprise, SOHO
Performance
Line-Rate Router
Architecture
Crossbar System
Antenna
2*2 4G LTE Antenna; 1* WiFi Antenna
Working Temperature
-40~+80
European Frequency Band
LTE-FDD B1, 3, 5, 7, 8, 20; LTE-Tdd B38, 40, 41
American Frequency Band
LTE-FDD B2/B4/B12
SIM Card
1 SIM Card 4G Router
Transport Package
Box&Carton
Specification
size: 115*73*23mm
Production Capacity
50000/Month
Product Description
modbus protocol industrial modem 4G module wireless DTU with RS232 RS485 GPIOs port for M2M IOT use
Product introduction

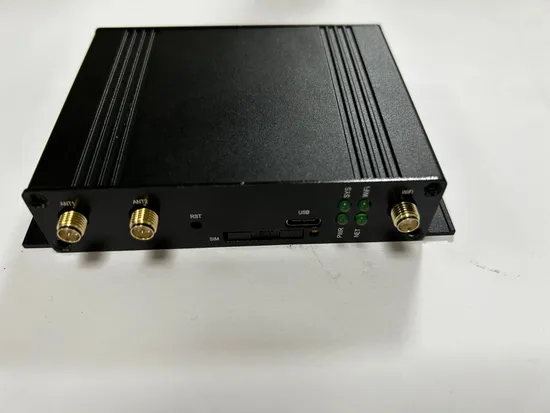

HDRM100 industrial wifi router/DTU Products support 2G/3G/4G LTE data access. It supports LAN/RS485/GPIOs interfaces.It provide stable and reliable data channels for industrial control and remote device management applications.
The HDRM100 L1 series of industrial grade routers/DTU products support frequency bands in major regions of the world. Meet industrial temperature,voltage and anti-static requirements,built-in watchdog and data link maintenance functions to ensure reliable system and data connections.
4G wireless router feature • Support downstream equipment, sensor ,and other protocol analysis, dirty data cleaning, edge computing Cloud management; • 1*RS232 or RS485,1*RS485, GPIOs(Digital or Analog),SPI,I2C etc (Optional);
• WIFI/GPS (Optional);
• SD card storage(Optional);
• 1 * LAN port.
• 1*RS232 or RS485,1*RS485, GPIOs(Digital or Analog),SPI,I2C etc (Optional);
•Support modbus protocol
| Item | Product specification |
| CPU | Qualcomm MDM9X07, 1.2GHz, ARM Cortex A7 |
| MEMORY | FLASH 512MBytes, DDR2 256MBytes |
| Embedded system | Linux 3.18.20 |
Net work | FDD LTE,TDD LTE,WCDMA,EVDO,GPRS,GSM,CDMA 1X 4G: CAT 4 DL 150Mbps , UL 50Mbps |
| Data rate | WCDMA HSPA+: DL 42Mbps, UL 5.76Mbps GPRS DL/UL 85.6Kbps |
| WIFI Rx Sensitivity | <-70 dBm@54Mpbs |
| WIFI Tx Power | 14 dBm(11g),17 dBm(11b),14dBm(11n) |
2G/3G/4G Transmitting Power | GSM/GPRS: Class 4 (2W): GSM850,EGSM900 Class 1 (1W): DCS1800,PCS1900 EDGE: Class E2 (0.5W): GSM850,EGSM900 Class E1 (0.4W): DCS1800,PCS1900 UMTS: Class 3 (0.25W): WCDMA Class 3 (0.25W): CDMA2000 Class 2 (0.25W): TD-SCDMA LTE: Class 3 (0.25W) |
| GPS (Optional) | GPS/GLONASS/BD,Protocol: NMEA |
| WIFI Frequency (Optional) | 2.4GHz, 802.11 b/g/n, 150Mbps,Wifi sharing for 10 users |
2G/3G/4G Frequency bands | Version CE LTE FDD: B1/B3/B5/B8 LTE TDD: B38/B39/B40/B41 WCDMA: B1/B8 TD-SCDMA: B34/B39 CDMA 1X/EVDO BC0 GSM: 900/1800MHz Version E. LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 Version J LTE FDD. B1,B3,B8,B18,B19,B26 "LTE TDD. B41 WCDMA. B1,B6,B8,B19 GSM. 900/1800MHz" Version AU. LTE-FDD . B1,B2,B3,B4,B5,B7,B8,B28 LTE-TDD . B40 WCDMA. B1,B2,B5,B8 GSM. B2/B3/B5/B8 |
Hardware interface | • 1*LAN 10M/100M/1Gbitbps, • 1*RS232 or RS485,1*RS485, GPIOs(4*Digital or 2*Analog),SPI,I2C (Optional) |
| RF connectors | SMA connector , 4G(female),WIFI(male),the characteristic impedance 50Ω |
| Security Encryption | Support WEP,WPA,WPA2 encryption ways |
| Protocol | PPTP,L2TP,IPSEC VPN, GRE, Open VPN, HTTPS, SSH,SNMP,TCP,UDP, DHCP,HTTP,DDNS,TR-069,Modbus,MQTT etc. |
| LED Indicator | "SYS", "Net", "LAN",RSSI |
SIM/UIM | Standard draw card interface, support 1.8V/3V SIM/UIM card, built-in ESD protection |
| Standard Power | DC 12V/1A |
| Power Supply | DC 6V/2.5A~36V/0.5A |
| Working current | 2A (Max Current) |
Temperature | Operating Temperature -40ºC~+80ºC Storage Temperature -45ºC~+85ºC |
| Environment humidty | 5%~95% |
| Case | Aluminum Alloy Shell |
| Weight | 160g |
Why choose us? 1. Professional , our team have high ability to parse Protocol of different instrument such as inverter ,sensor,ammeter,etc. We have fulfilled several projects for industry and electrical company in South of China , and device and system all have been running well . 2. Save labor cost and efficient, you needn't send staff to the site to check the status of the machine . 3. Save Maintenance costs . 4. Customize solution for different site 5. with alarm for power-fail.
Company profile
Ex-link Corporation Founded in 2011, as the leading provider of 3G/4G/5G CPE/ LTE router, wireless M2M products and systems solutions, we have experienced technical teams and professional implementation of industry solutions. and independently developed 4G /5G wireless router, CPE,4G DTU ,tracker, traveling recorder, we are the professional industrial 3G/4G LTE router,3G/4G CPE,2G/3G/4G LTE modem manufacturer and 2G/3G/4G LTE wireless module distributor. Our products and solutions are widely used in finance, transportation, telecom, electricity, power meter, water conservancy and other industrial applications. Up to now, we have exported our products more than 70 countries and regions world widely.
Production Line of 4g wireless router
>>
