Changlin 21 Ton Excavator Crawler

Product Description

Product Description

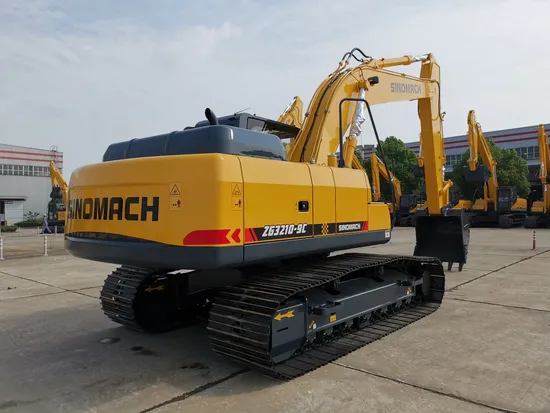

ZG210 21 ton excavator
CHANGLIN ZG210 Equipped with top brand engine, strong power, high efficiency, energy saving, reliable and durable; advanced negative flow hydraulic system, comfortable operation, high operating efficiency, excellent cost performance; full power control, four power modes to adapt to different working conditions; stepper motor accurately controls the throttle , Significantly reduce fuel consumption; full 3D modeling and finite element analysis technology to ensure the reliability and stability of structural parts.Based on the above advanced technology, CHANGLIN ZG210 has been widely using in construction sites such as building construction, mining engineering, water conservancy project and etc.
Product Description
SINOMACH-HI Shanghai International Trade Co.,Ltd. presents a top-of-the-line engine-equipped machinery designed for high load resistance, high horsepower output, and exceptional reliability. With low fuel consumption, our product significantly reduces overall use and maintenance costs.
Our machinery features an advanced negative flow hydraulic system that ensures superior system stability and reliability. It offers faster compound action speed and higher operating efficiency, making it a valuable asset for various applications.
Constructed with high-strength reinforced box-type side beams and X-shaped middle frames, along with high-reliability towline wheels and track rollers, our machinery can withstand impacts from excessive loads, ensuring durability and longevity.
Additionally, our product is equipped with an intelligent electronic monitoring system that provides real-time monitoring, self-diagnosing fault alarms, and maintenance information prompts, allowing for efficient and proactive maintenance.

ITEM		UNIT	Specifications
Operating weight		Kg	21000
() Rated bucket capacity		m3	1.0
Overall length	A	mm	9660
(600mm) Overall width(600mm track shoe)	B	mm	2800
Overall height	C	mm	3030
Trunable width	D	mm	2700
Cabin height	E	mm	2958
Groundclearance of counterweight	F	mm	1025
Engine cover height	G	mm	2338
Min. ground clearance	H	mm	470
Tail length	I	mm	2800
Turning radius of turnable	I'	mm	2800
Wheel base of track shoe	J	mm	3370
Chassis length	K	mm	4160
Chassis width	L	mm	2800
Track shoe gauge	M	mm	2200
Standard track shoe width	N	mm	600
Max. traction		KN	204
(/) Travelling speed (H/L)		Km/hr	5.8/3.3
Swing speed		rpm	13.9
Gradeability		Degree(%)	35(70%)
Ground pressure		Kgf/cm2	0.47

Packaging & Shipping

---
