US$500.00-15,000.00
|
1 Set
(MOQ)
|
Basic Info.
Application
Granules, Liquid, Liquid with Suspended Solids, Powder, Viscous Fluid
Application Area
Chemical
Control System
PLC Control
Cooling Method
Water Cooling
Heating Method
Electric Heating
Speed Range
60 R/min & Above
Voltage
220V/110V/380V etc
Operating Type
Continuous Operating
Transport Package
Plywood Case
Specification
Titanium Alloy
Production Capacity
50sets/Day
Product Description

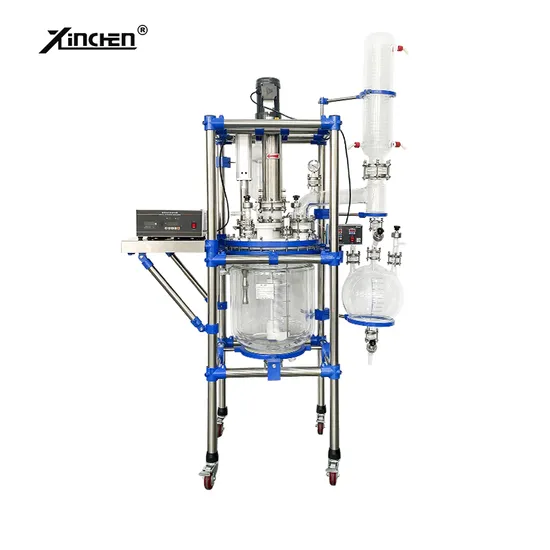

Product Description Ultrasonic reactor is the use of ultrasonic dispersion, crushing, activation and other multiple effects to destroy the solvent structure, improve the reaction activity, disperse crushed particles, to futher reduce the diameter of the wire.
The test proved that: ultrasonic reactor play a significant role in the superfine grinding, oil emulsification extraction and dispersed in nano scale for the powder material in liquid phase. At the same time, it can accelerate the reaction, emulsifying reaction and homogeneous reaction of powdery substance.
Product Parameters
| Model | XC-1L | XC-2L | XC-3L | XC-5L | XC-10L | XC-20L |
| Volume (L) | 1 | 2 | 3 | 5 | 10 | 20 |
| Jacket Volume (L) | 0.3 | 0.6 | 0.9 | 1.5 | 3 | 6 |
| Lid Diameter (mm) | 150 | 150 | 150 | 180 | 265 | 265 |
| External diameter of the inner vessel (mm) | 113 | 135 | 150 | 180 | 230 | 290 |
| External diameter of the outer vessel (mm) | 150 | 180 | 200 | 230 | 290 | 330 |
| Vessel height (mm) | 250 | 280 | 300 | 400 | 450 | 550 |
| Motor power (W) | 90 | 90 | 90 | 120 | 120 | 140 |
| Vacuum degree(Mpa) | 0.096 |
| Rotation Speed (rpm) | 50-800 | 50-800 | 50-600 | 50-600 | 50-600 | 50-600 |
| Torque (Ncm) | 30 | 30 | 30 | 162 | 162 | 210 |
| Dimensions(mm) | 330*350*800 | 320*350*800 | 320*350*900 | 450*450*1100 | 500*500*1200 | 500*500*1450 |
| Power | 220V 50Hz |
| Model | XC-30L | XC-50L | XC-80L | XC-100L | XC-150L | XC-200L |
| Volume (L) | 30 | 50 | 80 | 100 | 150 | 200 |
| Jacket Volume (L) | 10 | 16 | 24 | 30 | 45 | 60 |
| Lid Diameter (mm) | 265 | 265 | 340 | 340 | 340 | 340 |
| External diameter of the inner vessel (mm) | 330 | 365 | 410 | 460 | 550 | 600 |
| External diameter of the outer vessel (mm) | 365 | 410 | 460 | 500 | 600 | 650 |
| Vessel height (mm) | 730 | 850 | 950 | 950 | 980 | 1200 |
| Motor power (W) | 140 | 180 | 250 | 250 | 400 | 750 |
| Vacuum degree(Mpa) | 0.096 |
| Rotation Speed (rpm) | 50-600 |
| Torque (Ncm) | 210 | 300 | 350 | 350 | 400 | 400 |
| Dimensions(mm) | 500*500*1600 | 600*600*1800 | 700*700*2400 | 700*700*2600 | 800*800*2800 | 1200*900*3200 |
| Power | 220V 50Hz |
Product Features 1. Ultrasound function increase in reaction speed.
2. Greatly increase in reaction output.
3. More efficient energy usage sonochemical methods for switching of reaction pathway.
4. Performance improvement of phase transfer catalysts.
5. Avoidance of phase transfer catalysts.
6. Use of crude or technical reagents.
7. Activation of metals and solids.
8. Increase in the reactivity of reagents or catalysts.
| Model | NKG-05KW | NKG-1.0KW | NKG-1.5KW | NKG-2.0KW | NKG-3.0KW |
| Resonant frequency(KHZ) | 20±1 |
| Power(W) | 500 | 1000 | 1500 | 2000 | 3000 |
| Input Voltage(V) | 220±10% |
| The highest withstand temperature | -80ºC~250ºC |
| Emission head diameter | 50 | 50 | 50 | 50 | 50 |
| The ultrasonic generator | 1.Fuzzy program intelligent control |
| 2.DDS frequency automatic detection and tracking |
| 3.DSP control circuit |
| 4.Ultrasonic power putput adjustable |
| 5.Power device IGBT |
| 6.Continuous ultrasonic time up to 99hours |
Project Photos
We professional manufacture different kinds of glass reactor systems.
We have strong design, manufacture and site installation ability.
As a manufacturer not trading company, we can supply you with high quality , best price and fast delivery service.
1.Packing method: Standard export wooden box or base on your requests.
2. Shipping method: By Express door to door, or by ship, based on your choice.
1) If delivery goods by Express, door to door service , generally about 5-7 working days reach.
2) If by air, deliver goods to your destination airport, about 5 working days reach.
3) If by sea, deliver goods to your local seaport, specific days and cost is based on different shipping line.
3. Warranty
Any broken or damages of glass parts caused by delivery, will be afforded by Nanjing Ningkai company.
>>
