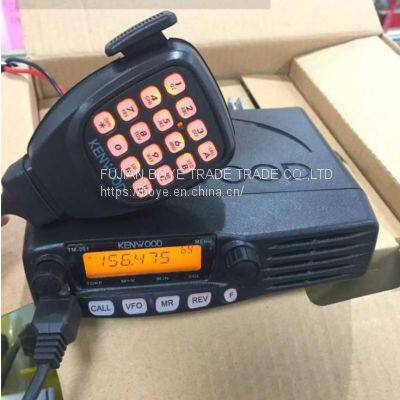

kenwood walkie talkie TM281 TM281A kenwood car radio ham radio hf transceiver 65W 10-50KM VHF 136-174MHZ

Product Details

Product Description

Product Description
kenwood walkie talkie TM281 TM281A kenwood car radio ham radio hf transceiver 65W 10-50KM VHF 136-174MHZ
Specification

General
Number of channels	Up to 200
TX frequency range	136-174MHz/400-470MHz
RX frequency range	136-174MHz/400-470MHz
Mode	F3E(FM)
Antenna impedance	50Ω
Usable temperature range	-20°C±60°C(-4°F±140°F)
Power supply	13.8V(DC)±15%(11.7-15.8V)
Grounding method	Negative ground
Current Transmit(max)	13A(or less)
Receive(at 2W output )	1.0A(or less)
Frequency stability(-20°C±60°C)	within ±2.5ppm

Transmitter
Power output	High:55W
	Low:Approx25W
Modulation	Reactance
Spurious emissions		Maximum frequency deviation	Wide:±5kHz Narrow:±2.5kHz
Audio distortion(at60% modulation)		Microphone impedance	600Ω

Receiver
Circuitry	Double conversion superheterodyne
Intermediate frequency(1st/2nd)	499.95MHz/450kHz
Sensitivity(12dB SINAD)	Wide:<0.2μV Narrow:	Selectivity(-60dB)	Wide:>12kHz Narrow:>10kHz
Selectivity(-60dB)	Wide:<30kHz Narrow:	Squelch sensitivity		Audio output(8Ω,5% distortion)	>2W
Audio output impedance	8Ω

Packing & Delivery
1 x Radio
1 x Microphone
1 x DC Cable
1* Bracket Mount
1 x User manual
1.We not only offer our own stock, but also help clients to search the parts in Chinese market.
2.We have implemented a strict and complete quality control system which ensures that all parts we offer are of good quality.
3.We have experienced workers and professional equipment to inspect the parts before shipment and always inform clients the true conditions of the parts.
4.We would appreciate the opportunity of serving your needs. You will be pleased to do business with us for our best services and high quality components.

---
