5kVA Voltage Stabilizer for Home Price

Product Description

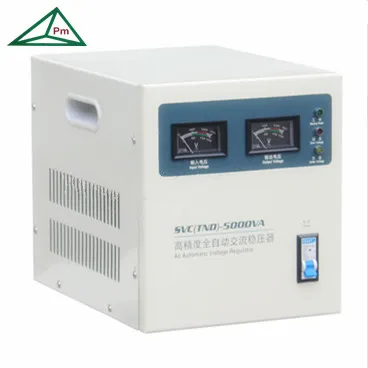

Introduction of products.PM series single-phase high-precision automatic AC voltage regulator consists of contact auto-connected voltage regulator, servo motor, automatic control circuit, etc. When the power grid voltage is unstable or the load changes, the automatic sampling control circuit sends out The signal drives the servo motor to adjust the position of the carbon brush of the auto-regulator, so that the output voltage is adjusted to the rated value and reaches a stable state.This product has the characteristics of undistorted waveform, reliable performance, long-term operation, etc., with delay, over Pressure, undervoltage protection, etc. It can be widely used in any place where electricity is needed for stable voltage, and it is an ideal regulated power supply to ensure normal operation of your electrical equipment. Technical parameters

Input voltage	150V-250V
Output voltage	220V/110V(0.5kVA-3kVA) 220V(5kVA-30kVA)
Voltage regulation accuracy	Phase voltage 220V±3% 110V±6%
frequency	50Hz/60Hz
Overvoltage protection	246V±4%
Adjust the time	<1 second (when input voltage changes by 10%)
Ambient temperature	-10ºC~+40ºC
Temperature rise	<60ºC
Waveform distortion	No additional waveform distortion
Load power factor	0.8
Dielectric strength	1500V/1min
Insulation resistance	>2MΩ

Outer size/Packaging
Model/Specifications	Size (cm)	Package (cm)		Package Quantity (piece)	Gross Weight (kg)
PM-1005	19 × 17 × 13.5	44 × 24.5 × 35		4	15
PM-101	22 × 20.2 × 16	49 × 28.5 × 40		4	20
PM-101.5	22 × 20.2 × 16	49 × 28.5 × 40		4	26
PM-102	24.5 × 25.8 × 19.5	60.5 × 35 × 25.5		2	17
PM-103	23.5 × 29 × 23	61.5 × 38.5 × 29		2	23
PM-105	23 × 31.5 × 27.5	39.5 × 32 × 35		1	13
PM-110 (ultra-low pressure)	31 × 34.5 × 53.5	45 × 42.5 × 62		1	33
PM-110K	31 × 34.5 × 53.5	45 × 42.5 × 62		1	36
PM-115K	28 × 38 × 77	49 × 40 × 86.5		1	52
PM-120K	32.5 × 38 × 77.5	49 × 44.5 × 88.5		1	59
PM-130K	37.5 × 41.5 × 78.5	53 × 49 × 88.5		1	74

Packaging & Shipping After Sales Service Warranty: 1 year.
If the part was broken because of quality problems, we'll delivery the parts free of charge and arrange the guidence.
About us
Shenzhen Xin Poming Power Equipment Manufacturing Co., Ltd is established in Guangdong Province of China in 2007, which manufactures and sells voltage regulators, transformers, UPSs, frequency converter, DC power sources and other power products and can provide systemic power solutions for customers with it's complete product list For clients around the world .
Clients
FAQ Q 1. what's the payment terms?
A. We accept T/T, Western Union. If others, we can discuss.
Q 2. how's the delivery time ?
A. usually it will take about 3-10 days after order confirmed.
Q 3. tell me the standard of package?
A. For the small capacity, we will use carton, but for big capacity, we should use strong non-fermigated wooden case(composite material box) for protection.
Q 4.Could you offer Form A or C/O ?
A. No problem. We can prepare relative documents to origin affairs office or other office to apply for related certificates.
Q 5.Would you accept to use our logo ?
A.If good quantity, it absolute no problem to do OEM.
Q 6.We want to know month capacity.
A. It depends on which model.For example for relay type capacity , month capacity can reach near 5000pcs/month while big capacity near 2000pcs/month.
Q 7.Where is your market?
A. We were focused on Chinese domestic market before. Since 2018, we started to expand our overseas market, and our products won good reputation in Mid East, Africa, South American, South and North Aisa by its high quality.
Q 8. what kind of certificates you have ?
A. Our company already achieve ISO9001, and for products, we have CE,ISO9001, some products have obtained patent for the appearance and utility.
You're welcomed to contact us for any questions.

---
