High Performance PP Rigid Thermoforming Machine for Industrial Use

Product Description

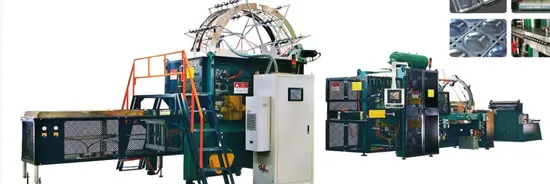

Automatic Thermoforming machine for the rigid sheet
This is the thermoforming machine designed for rigid sheets such as PP, PET, PLA, and more. It features a two-station setup: one for thermoforming and the other for cutting. Driven by servo motors, this machine is fully automatic and ideal for producing fast food containers like PP containers.
Machine Features:
- Boasts a clap-type chain and a pioneering W-type transmission system - Equipped with a high-power oven and a precise temperature control system - Integrated with an advanced plug system for superior performance
- Features a waste crusher with efficient belt transmission - Capable of handling large-area, high-pressure forming tasks with ease
Main Technical Specification
Model Parameters Unit HLRCH-850
Max. Forming area mm2 850X1060 (33.5"X42")
Max. Forming depth mm 127 (5")
Mould clamp force t 70
Oven length mm 4500
Max.Forming speed cycles/min 25
Installed power kw 430
Installed size (LxWxH) m 14 x 2.2 x 2.6
Main Technical Specification
Model parameters Unit HLZCZ-850
Max. Efficiency area mm2 850 x 400 (33.5" x 15.8")
Max.Trim height mm 130 (5.1")
Dry speed cycles/min
Installed power kw 20
Installed size (LxWxH) m 5 x 4.5 x 3.5

---
