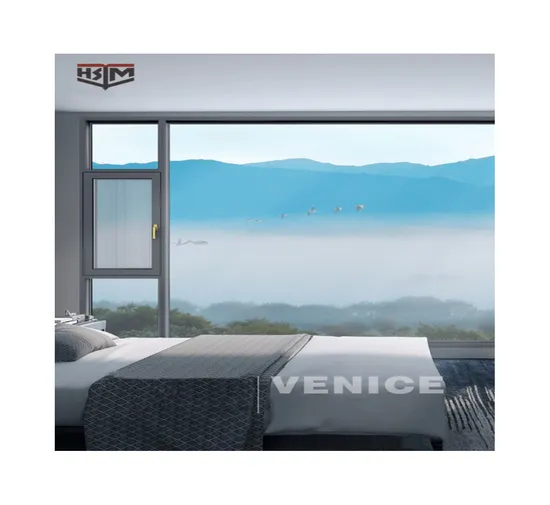

H110 Broken Bridge Window Screen Integrated External Opening Windows

Product Description

HSTM outward-opening windows utilize a multi-cavity structure, combined with glue injection, to make the overall frame structure more stable than ordinary outward-opening windows. At the same time, they adopt integral built-in Roman crimping and europium aluminum corner codes, which are suitable for different processing habits and processing equipment. HSTM has developed three types of large and small buckles, which can effectively realize the buckle conversion of over-large glass. The glass adopts a middle sealing structure to eliminate the hidden danger of water leakage from the buckle strips and ensure air tightness, heat insulation and sound insulation.
Product Features
Made of 6063-T5 titanium magnesium silicon alloy primary aluminum profile.
The wall thickness of the main load-bearing material is 1.8mm, the 5-cavity hook design, the window frame glue injection process, the profile structure is stronger, and it can bear 500-600 kilograms of glass.
The standard configuration is 5G+20A+5G tempered hollow double white glass, the glass can be upgraded to 10G+10A+10G, and the standard configuration is fluorocarbon black hollow aluminum strips.
Exclusively developed and designed, the fixed crimping line adopts a clamping type and the integral embedded crimping line uses EPDM EPDM rubber strips in the fixed position, which has better weather resistance. The open position uses EPDM composite sealing strips, which has better sealing performance.
Three seals, supported by vertical isotherms, provide better sound insulation, heat insulation and waterproof effects.
The inner and outer flat frames of the window sash adopt an open drainage function to make drainage smoother and prevent water from pouring back.
Imported 24MM multi-cavity PA66GF25 thermal insulation nylon strips are used.
The screen fan adopts arc chamfering to prevent bumps and scratches. 304 stainless steel diamond mesh is rust-proof and more durable.
Opening method: outside flat opening, outside top hanging, outside opening top hanging.
Optional guardrails: fixed guardrail, fixed minimalist guardrail, open guardrail.

Main Profile wall thickness (mm)	Dimensions of Front-view surface (mm)		Frame wall-mounting Size (mm)	Glass thickness (mm)	Window panel
1.8mm	frame:28	Glass profile: 75	External frame: 109	5G+20A+6G	W: 400mm-800mm
	Strengthen mullion:28	Screen Panel: 65	Screen Panel: 30		H: 400mm-1600mm
	Subframe: 53		Glass panel: 41.5		Weight limit: 60kg

FAQ: What Is The Thermal Insulation And Waterproof Performance? Using 20mm national standard PA66 cavity-type nylon insulation strips, it effectively blocks indoor and outdoor heat transfer channels and brings stable thermal insulation performance to the entire window. The open drainage function design, combined with the external windshield drainage cover, avoids the phenomenon of water backflow and makes drainage smoother. What are the advantage of casement window? Open or close window with hinge easily. Casement window offers large area air circulation and unobstructed view. It can show excellent sound and heat insulation function. What Material Of Aluminum Is Used? Made of 6063-T5 titanium-magnesium alloy raw material, the wall thickness of the main load-bearing material is 2.0MM Does the casement window have screen? Yes, you can order casement window matching with built-in screen, which can increase your window functionality. Is the casement window safe? Yes, HSTM® casement window is equipped with anti-falling rope to prevent damage window sash from falling by accident.A child lock can be customized and a safety glass guardrail can be designed indoors for all-round protection. Can I customize the glass type for the casement window? Yes, you can select different types of glass for your casement windows to meet the requirements of sound insulation, heat insulation or safety protection. You can get more information in detail pages. What Are The Colors Of casement Windows? There are various colors such as sand gold black, black gold stone, sand grain gray, sand grain coffee, titanium empty gray, golden teak, etc. At the same time, you can customize it according to your personal needs. For details, you can communicate with us through the HSTM contact information. What's the price of casement window? The price range of casement window can vary depending on factors, such as dimension, model, glass type and additional features. We will recommend you to consult with HSTM team to get free quotation.

---
