Atlas Copco Multifunctional Portable Mobile Air Compressors Are Light Enough to Be Towed by a Car

Product Description

Atlas Copco Introducing the 8 Series
The 8 Series compressor range is the result of over a decade of continuous development. For the first time, its possible to transport behind a normal passenger car, with no special driving license, a compressor that can produce up to 5.3 m3/min of air, with a full size fuel tank, aftercooler and integrated generator all incorporated into a compact and lightweight package.
Best in class efficiency
Efficiency can mean many things, such as reduced service time, fuel consumption or increased utilization. The 8 Series ticks all the boxes when it comes to delivering outstanding performance in all of these categories.
Product Parameters

model		XAHS 38KD	XAS 58KD	XATS 68KD	XAS 78KD	XAS 88KD	XAS 98KD	XAS 98KDG
Working pressure	bar (g)	12	7	7 / 10.3	7	7	7	7
Volumetric Flow	m³/min	2.3	3	3.5	4.5	5	5.3	5.3
Oil volume	L	8	8	8	8	8	8	8
venting valve	Quantity Size	3*3/4″	3*3/4″	3*3/4″	3*3/4″	3*3/4″	3*3/4″	3*3/4″
ultimate temperature	ºC	50	50	50	50	50	50	50
Minimum starting temperature	ºC	-10/-20	-10/-20	-10/-20	-10/-20	-10/-20	-10/-20	-10/-20
static	dB(A)	101	101	101	101	101	101	101
Engine
model		V 1505	V 1505	V 1505 T	V 1505 T	V 1505 T	V 1505 T	V 1505 T
branding		Kubota	Kubota	Kubota	Kubota	Kubota	Kubota	Kubota
Number of cylinders		4	4	4	4	4	4	4
Power	kW	26.5	26.5	26.5	33	33	33	33
Nominal speed	rpm	3000	3000	3000	3000	3000	3000	3000
Unload speed	rpm	1800	1800	1850	1850	1850	1850	1850
Capacity
Engine oil	L	5.5	5.5	5.5	5.5	5.5	5.5	5.5
Compressor oil	L	8	8	8	8	8	8	8
Fuel tank capacity	L	60	60	60	60	60	60	60

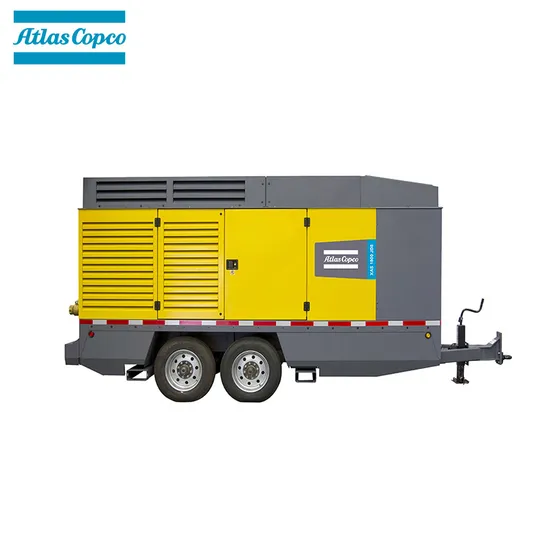

Atlas Copco X-AIR Series of large mobile air compressors
With Atlas Copco mature and advanced control system, it monitors the running condition of the whole machine in an all-round way, intelligently adjusts the running state of the equipment, reduces the loss and improves the working efficiency. At the same time, it takes into account the self-protection of the equipment and easy operation and other ergonomic designs. Standard or optional Atlas Copco's unique Atlas Copco unique Drilling Expert system is fitted as standard or as an option to intelligently control the pressure and flow rate, and its Dynamic Air Volume Adjustment function can increase the extra air volume by 10% and improve the feed rate by 30%.
Based on the actual needs of customers, adjust the gas circuit regulation. Standard or optional electronic thermostatic valve, through the electric signal control air circuit system, completely solve the problem of low-temperature icing of equipment.

Model		X-AIR 960-23	X-AIR 1100-25	X-AIR 1280-30	X-AIR 1300-30	X-AIR 1300-35	X-AIR 1500-20
Working pressure	bar	18/23	18/25	15/25/30	15-30	15-35	15-20
Volumetric Flow	m³/min	28.0/26.0	30.8/27.8	36.5/34.3/32.1	38.8-35.4	38.8-32.7	43.4-41.5
compression class		2	2	2	2	2	2
Oil volume	L	78	78	80	87	87	87
venting valve	inch	1*G2, 1*G3/4	1*G2, 1*G3/4	1*G2, 1*G3/4	1*G2	1*G2	1*G2
Diesel fuel tank volume	L	400	400	680	755	755	755
Engine
branding		Cummin	Cummin	Cummin	Cummin	Cummin	Cummin
model		L9CS4 400C	L9CS4 430C	M14CSIV37C	M14CSIV41C	M14CSIV41C	M14CSIV41C
Number of cylinders		6	6	6	6	6	6
Power	kW	294	316	368	412	412	412
Full load speed	rpm	2040/1880	1800/1640	1900/1760/1660	1850-1700	1850-1550	1820-1720
Unload speed	rpm	1300	1300	1300	1300	1300	1300
Oil volume	L	27	27	43	45	45	45
Cooling system volume	L	52	52	57	74	74	74
Overall dimensions
Enclosure Type Dimensions	mm	3670*1870*2170	3670*1870*2170	4000*2140*2465	4265*2220*2500	4265*2220*2500	4265*2220*2500
Box weight	kg	4285	4350	5750	6600	6600	6550
Trailer size	mm	4500*2090*2710	4500*2090*2710	4633*2140*2751	4870*2220*2770	4870*2220*2770	4870*2220*2770
Trailer weight	kg	4685	4750	6250	7000	7000	6950

Atlas Copco X-AIR Series of Medium Portable Diesel Air Compressors
Equipped with a new screw rotor developed in-house by Atlas Copco, it is more efficient, more reliable and lasts longer;
Atlas Copco mature and advanced control system monitors the operating conditions of the whole machine in an all-round way, intelligently regulates the operating status of the equipment, reduces loss and improves work efficiency. At the same time, it takes into account the self-protection of the equipment and easy operation and other ergonomic designs.

Model		X-AIR 400-7	X-AIR 350-10	X-AIR 330-13	X-AIR 600-17	X-AIR 670-18	X-AIR 688-20	X-AIR 777-22	X-AIR 900-12
Working pressure(bar)		7	10	13	5-17	10-18	20	13-22	5-12
Volumetric Flow	m³/min	12.0	10.0	9.0	17.5-15	18.7-16.4	19.6	21.6-19.4	25.8-23.4
compression class		1	1	1	1	2	2	2	1
Oil volume	L	26	26	26	43	43	62	62	70
venting valve	inch	1*G3/4, 1*G1 1/2			1*G2,1*G3/4	1*G2,1*G3/4	1*G2,1*G3/4	1*G2,1*G3/4	1*G2,1*G3/4
Diesel fuel tank volume	L	120	120	120	175	190	295	295	310
Engine
branding		Yuchai	Yuchai	Yuchai	Cummin	Cummin	Cummin	Cummin	Cummin
model		YCF36125	YCF36125	YCF36125	B5.9 CS4	B5.9 CS4	B6.7 CS4	B6.7 CS4	B6.7 CS4
Number of cylinders		4	4	4	6	6	6	6	6
Power	kW	92	92	92	154	154	194	214	214
Full load speed	rpm	2300	2300	2300	1900~2160	1900~2160	1900	1950~2150	2000~2200
Unload speed	rpm	1400	1400	1400	1300	1300	1300	1300	1300
Oil volume	L	12	12	12	16.5	16.5	25	25	25
Overall dimensions
Enclosure Type Dimensions	mm	2300*1300*1620			2960*1400*2110	3090*1400*2110	3250*1520*2190
Box weight	kg	1470			2215	2535	3100	3100	2900
Trailer size	mm	3650*1790*1905			4655*1940*2385	4680*1940*2400	4850*2050*2500
Trailer weight	kg	1500			2380	2700	3300	3300	3100

---
