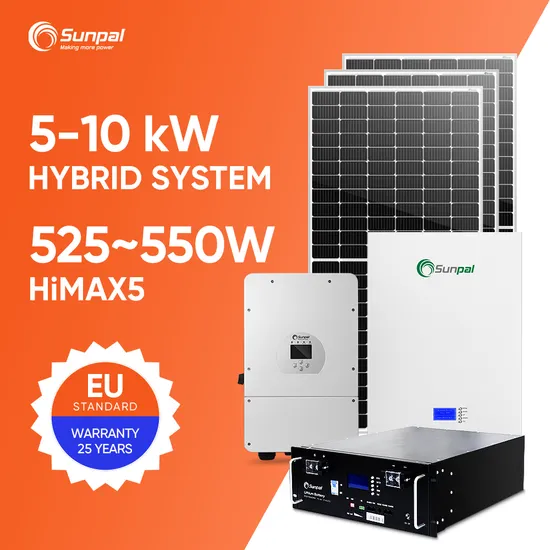

Sunpal Full Solar Power System Price 5kw 8kw 10kw Hybrid Solar Energy Storage System Kit for Home

US$0.50
5,000-499,999 Watt
US$0.40
500,000-14,999,999 Watt
US$0.30
15,000,000+ Watt

Basic Info.

Model NO.
SP10KW3-HY
Condition
New
Certification
ISO, CE
Application
Home
Specification
Normal, Solar Panels, Solar Inverter, Solar Battery
Product Name
Household Hybrid Solar Power System
Controller Type
MPPT
System Type
off-Grid Hybrid Solar Photovoltaic System
Solar Panel
Mono Crystalline Perc Solar Panel
Inverter
Single Phase/Split Phase/3phase
Battery
Lead Acid/LiFePO4 Lithium Battery
Mounting Structure
Customzied
Usage
Home Solar Energy Generation
Packing
Wooden Box
Technical Support
Complete Technical Support
Packing Size
200*130*50cm
Packing Weight
850kg
Type
Hybrid/on-Grid/off Grid Solar System
Power
5-10kw
Features
for Home Use
Transport Package
Wooden Box Package by Sea
Trademark
Sunpal
Origin
China
HS Code
8501320000
Production Capacity
10000 Piece/Pieces Per Day

Packaging & Delivery

Package Size
200.00cm * 130.00cm * 50.00cm
Package Gross Weight
850.000kg

Product Description

Product Description
System MODELSP5KW-HYSP8KW-HYSP10KW3-HYSP12KW3-HY
PV System Size Nominal (kWp)5.58.81113.2
PV MODULE SPECIFICATIONS (*half cell mono)
Power (W)550
Vmp (V)41.96
Dimensions (L x W x H) (mm)2279*1134x35
CertificationsCE / TUV (IEC 61215 & IEC 61730) / UL (UL1703)
INVERTER SPECIFICATIONS
Inverter Size (kW)581012
Max DC Power (W)6500104001300015600
Max DC Voltage (V)5001000
MPPT Voltage Range(V)150-425125-425200-650200-650
Output Voltage220,230Vac220/380,230/400Vac
UPS (Off Grid Model with Battery)
Rated Power (VA)500080001000012000
Max DC Charge/Discharge Current(A)120190210240
Max Power(W)for 10 Seconds7500120001500018000
BATTERY BANK SPECIFICATIONS
Battery TypeLi-Ion(LifePO4)
Total Batteries1234
Battery Bank Power(kWh)4.89.614.419.2
Battery Voltage (V)48
Battery Current(Ah)100
Number of PV Modules10162024
System Components
Company Profile
Company Overview
As a world-class solar products manufacturer, Sunpal specializes in the research, development, production, and sales of solar PV products and solar panels.Sunpal focused on research and manufacture of all-black solar panels since the year 1998, we have exported our various kinds of full-black solar panels to 86 countries and won a good reputation for quality. With over 10 years of development, Sunpal now has a factory area covering 150,000 square meters, with 600 experienced employees.
Professional Packing
Sunpal Project Case
Customer Photos
