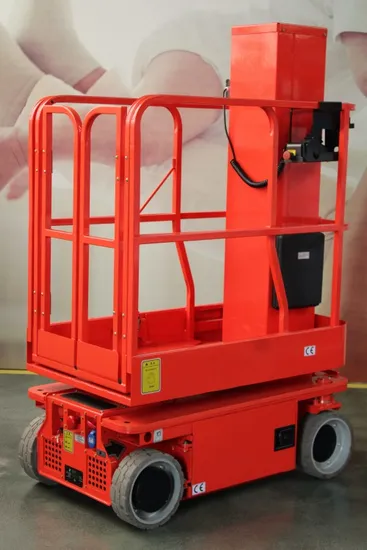

Self-Propelled Vertical Boom of Amwp4.8-6100

Product Description

•Self-propelled Vertical Boom
Usage: Widely used in high-altitude installation and maintenance in hotels, auditoriums, stadiums, large factories, workshops, warehouses, granaries, bus stations, train stations, airports, gas stations, overhead pipelines and other workplaces.
• Parameters:

/Model	AMWP4.8-6100
Max. Working Height	6.8m
Max. Platform Height	4.8m
Loading Capacity	227kg
Ext. Platform Capacity	114kg
Overall Length	1.36m
Overall Width	0.76m
Overall Height	1.98m
Platform Dimension	1.8m×0.70m
Ext. Platform Length	0.51m
Wheel Base	1.04m
Inner Turning Radius	0m
Outer Turning Radius	1.4m
()Travel Speed(Stowed)	4km/h
()Travel Speed(Raised)	1.1km/h
/Up/Down Speed	41.5/42sec
Gradeability	25%
Drive Tyres	Φ305×100mm
Drive Motors	2×24VDC/0.5kW
Lifting Motor	24VDC/1.3kW
Battery	2×12V/100Ah
Charger	24V/15A
Weight	980kg

Company information Boonai (Suzhou) Lift Equipment Co., Ltd as a mordern manufacturing enterprise is specialized in aerial work platform,
providing package service for design, production, sales and after-sales.
With business philosophy of "Quality First, Client Oriented", we are striving for building a reputable brand of Boonai
by following the steps of the giants for the innovation of products and the improvement of process and purchasing
the perfection on every detail.
• Company Certificates:
• Part of Our Clients:
Standard Features:
1. Battery power, no need for external power supply, convenient and fast to use;
2. Single handle operation, proportional control, full-stroke walking;
3. Non-marking rubber tires can effectively protect the ground;
4. The whole machine has a compact structure, small and flexible, and convenient to enter a small space;
5. The driving wheel has an automatic braking function;
6. The guide wheel holding mechanism is adopted between each mast. The uniquely designed guide wheel holding technology not only minimizes the dynamic gap between adjacent masts, but also reduces the friction between the guide wheel and the mast;
7. Both the platform and the ground can be controlled up and down, with up and down control switch;
8. The chassis is equipped with standard forklift holes, which is convenient and safe for equipment loading and unloading;
9. The control voltage is DC 24V to ensure the safety of operators;
10. The electrical control system is equipped with double contactors to maximize the safety of operation;
11. Both the platform and the ground are equipped with an emergency stop button, which can quickly cut off the power in an emergency;
12. The charger has an intelligent protection function to prevent overcharging, and has a reminder function during charging;
13. The system is equipped with an emergency lowering valve. When the system is working, due to a sudden power failure, the lifting equipment can be safely lowered, and the operating mechanism is external, which is convenient to operate;
14. Equipped with pipeline explosion-proof system;
15. The platform is equipped with safety belt hooks to ensure safe operation;
16. Equipped with electric limit and built-in limit of oil cylinder, limit protection is safer;
17. With tilt protection function;
18. With fault diagnosis function;
19. With charging protection function;
20. Equipped with standard forklift holes;
21. Equipped with buzzer, horn and strobe light;
22. The surface treatment of steel structure adopts electrostatic spray paint after shot blasting, and the coating is firm and beautiful;
23. The threshold slope is randomly equipped, suitable for the threshold height: not less than 50mm.
• Warranty:
1. User-friendly English manual for machine using and maintenance.
2. One year warranty for whole machine without man-made fault.
3. We will send you parts for free if there are any non-human factors problem during
warranty time.
4. 24-hours technical support by email, telephone or other communication online.
5. We could reply you in 2 hours after received your any questions even on weekend and
holidaysm engineers are available to your company if necessary.

---
