CE Approved Plastic PVC Pipe Extruder Machinery

Product Description

CE Approved Plastic PVC Pipe Extruder Machinery
Product Description
It is also called PVC Plastic Pipe Extrusion Line, plastic pipe production line, UPVC /CPVC Water Pipe Extrusion Line, PVC Pipe Extruder Machine, pipe machine, pipe machinery, extruder, extruders, PVC extrusion machine.This series of pipe extrusion lines are mainly used to produce PVC drainage pipes and U-PVC, C-PVC water supply pipes.Advanced design for screws supplies powerful safeguard for the PVC plasticization.Unique inside oil controlling temperature system adapts different technology formulas.
Beautiful and practical stainless steel body for the vacuum calibration and spray cooling system, unique multi-section vacuum system ensures the stable sizing and cooling for pipes; Special spray cooling system improves the cooling efficiency; Special water position, water temperature system make the machine more intelligent.
Hauling-off unit adopts particular pedrail structure, which is easy and convenient for operation; Pedrail clamping uses mechanical and pneumatic combining system, which is more reliable.Cutting system adopts saw blades and planetary cutting means; Sumping uses hydraulic system, which ensures the smooth cross section; Equipped with dust-collecting unit, which ensures the clean working environment. Product Parameters

Main extruder	SJSZ-51/105	SJSZ-65/132	SJSZ-80/156	SJSZ-92/188
Main motor power(KW)	22	37	55	110
Pipe diameter(mm)	16- 63mm	75-160mm	200-400	400- 630
Hauling speed(m/min)	0.8-10	0.5-5	0.3-4	0.2-3
Max. Capacity(kg/h)	120	260	400	600
Total power(KW)	89	95	135	255

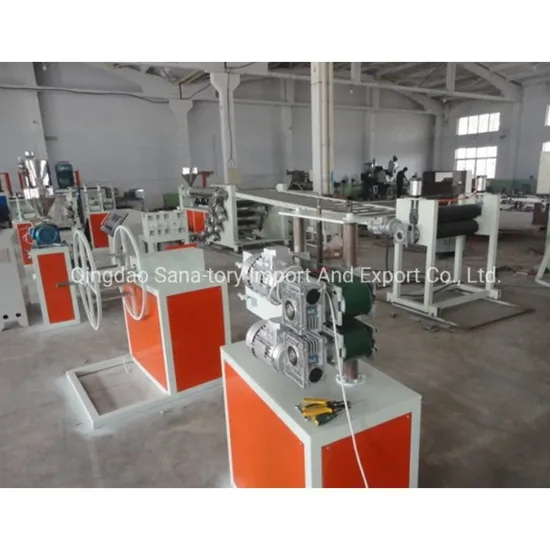

Detailed Photos
(1)This production line has production capacity of churning out φ 16mm-φ 160mm PE pipe continuously with assembling the special high-speed single screw extruder, which is distinguishingly designs with co-extrusion die head, the production speed can reach 20m/min.
(2)Our company using advanced HDPE/PP pipes extrusion technology to develops this extrusion line. This line features compact structure, highly automation and stable performance.
Advantages:
1.Gear rack design with good performance of corrugated machine. 2.Mold block with durable and wear-resistant,also suitable for medical use
3.Max.speed can be 40m/min by Fosita design.
4.All line is equipped with Siemens PLC.
Packaging & Shipping
Market
Company Profile
FAQ
1.Q:Can you print the company name or logo on the products?
A:Yes.We can print your logo or company name on the products by Stamping or Coating.

2.Q:What can you buy from us?
A: Plastic machinery,Pipe production line,Plate production line,Profile production line,Blow Molding Machine and so on.

3.Q:How can we guarantee quality?
A:Always a pre-production sample before mass production;Always final Inspection before shipment.

4.Q:What can you provide for after-sale service?
A: 12 months Warranty for Mechanical part, main parts is made of high tool steel by special quenching treatment, with high corrosion resistance and wear resistance. We also provide equipment repair services for life. For long-term cooperation, we always provide good quality, good price and good service to customer.
5.Q:How many tons for normal machine to production per month?
A:Our machine is according to the model to decide , under the situation, one machine can produce 30 tons per month.

---
