Wood Working Single Side Wide Belt Sanding Machine for Plywood Veneer

US$10,000.00-23,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
R-RP 1300
Variable Speed
Variable Speed
Certification
CE, ISO, FDA
Customized
Customized
Condition
New
Color
Customized
Transport Package
Standard Export Packing
Specification
about 3500 kg
Trademark
metro
Origin
China
HS Code
8465930000
Production Capacity
500 Sets/Year

Product Description

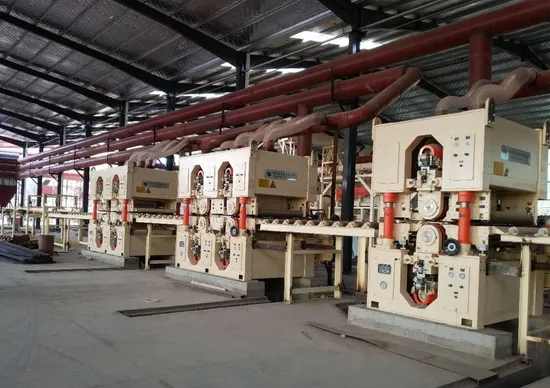

PHOTOS SHOW:

SPECIFICATION:
Model R-RP 1300
working width 40-1300 mm
working thickness 2.5-100mm
working length ≥530mm
1st sanding belt speed 19m/s
2nd sanding belt speed 18m/s
1st sand head rubber roller 40
2nd sand head rubber roller 80
Feed speed 6-30 m/min
Size of sanding belt(W x C) 1330x2200mm
First roller hardness soft rubber roller
Second roller hardness 40 soft rubber roller
Polishing pad pneumatic air bag pad
Brusher roll has
Air blow pipe for sand paper has
power Total motor 56.74kw
1st motor 30kw
2nd motor 22kw
Brush motor 0.37kw
Feed motor 4kw
Lifting motor 0.37kw
Working air pressure 0.55mpa
Consumption of compressed air 0.1m³/min
Volume of sucked air 9000m³/h
Speed of sucked air 25-30m/s
Overall dimension(L x W x H) 2360 x2040 x2220mm
Net weight 3500 kg

CERTIFICATES:
SERVICES:
PRE-SALE SERVICES:
1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory
SERVICES DURING THE SALE:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.
AFTER SALE SERVICES:
1) 24 hours online service
2) Provide the video with Install and debug the equipment
3) Provide technical exchanging
