Basic Info.
Processing Accessory

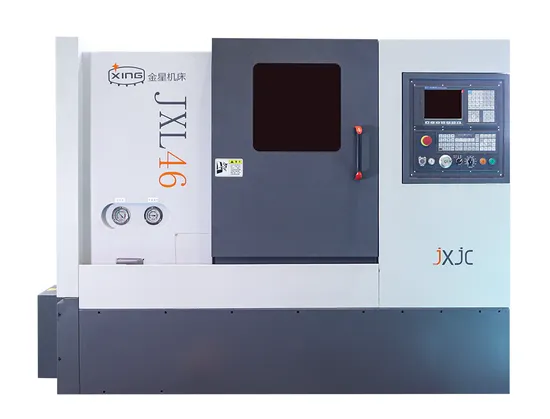

Centre CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Hydraulic Pressure
Automatic Grade
Automatic
Maximum Machining Length
300
System
Siemens 808d Siemens 828d/Other
Transport Package
Packed in Wooden Cases with Steel Bottoms
Specification
2500*1700*1900
Product Description
| | item | specification |
| 1 | Max. swing dia. over bed | 480mm |
| 2 | Max. turning dia. of workpiece | 160mm |
| 3 | | |
| 4 | Bed form | 45° |
| 5 | Middle pallet | linear guide |
| 6 | Max.X stroke | 420mm |
| 7 | Max.Z stroke | 360mm |
| 8 | Rapid feed X/Z | 36/36m/min |
| 9 | X/Z motor speed | 3000RPM |
| 10 | Z axis linear guide width | 35mm |
| 11 | Ball screw X/Z | 3212/3212 |
| 12 | Spindle speed | 100-4500RPM |
| 13 | Spindle nose | A2-5 |
| 14 | Spindle bore | 56mm |
| 15 | Power of main motor | 5.5KW |
| 16 | Spindle clamp | 6 inch hydraulic chuck |
| 17 | Chuck bore | 56mm |
| 18 | Tool holder | Hydraulic Turret(taiwan) |
| 19 | Number of tool holders | 6 |
| 20 | Standard blade size | 20×20mm |
| 21 | Maximum boring tool diameter | 25mm |
| 22 | | |
| 23 | | |
| 24 | | |
| 25 | | |
| 26 | positioning accuracy X/Z | 0.01/0.02mm |
| 27 | repositioning accuracy X/Z | 0.004/0.004mm |
| 28 | Overall dimensions of machine | 2340x1400x1700mm |
| 29 | Case dimensions of machine | 2500x1500x2000mm |
| 30 | Net weight /gross weight of the machine | 2600/2900kg |
1. In the design stage, FEA technology is used to simulate and analyze changes under various working conditions, realistic complexity and high rigidity design;
2. The class type 45° inclined bed is used to increase the bottom area, maximize the rigidity of the machine tool, and improve the comprehensive cutting performance.
Shandong Linyi Golden Star Machine Tool Co., Ltd.the original linyi machine tool plant, founded in 1965, is a research and development, production and manufacturing mechatronics CNC machine tool products and characteristics of export products for the main business of state-level high-tech enterprises, with annual production of CNC lathe, vertical machining centers, CNC milling machine, engine lathe, multi-purpose machine, surface grinding machine, etc. The comprehensive production capacity of more than Taiwan. The company has passed THE ISO9001 international quality system certification, and enjoys the right to import and export. It is a patent star enterprise in Shandong Province, with provincial enterprise technology center, provincial one enterprise one technology RESEARCH and development center, municipal engineering technology research center and key laboratory of high-grade CNC machine tool enterprises.
The company is the professional and technical personnel education base in Shandong Province, with 32 scientific research personnel, one expert with outstanding contribution and six senior titles enjoying the special allowance of The State Council. At present, the company has 24 national patents and 5 software Copyrights. Presided over the formulation of JBCPZT1319-2019 CNC double-head vehicle industry standard, and participated in the formulation of JB/T8326 CNC Instrument Horizontal Lathe industry standard.
>>
