Basic Info.
Making Method of Parison
Extrusion-Blow Molding
Computerized
Computerized
Certification
CE, ISO9001:2008, QS
Transport Package
Film Package
Specification
4.8x2.2x3.3
Production Capacity
1000PCS/Day
Product Description

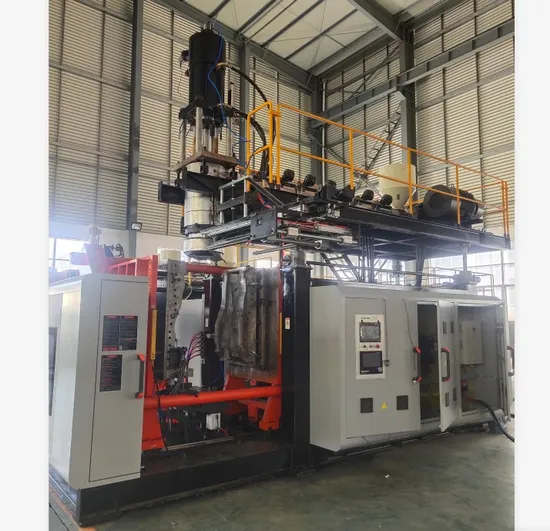

Double stations One cavity(20L) Single layer Automatic trimming: Neck/Bottom Output: around 100-200 BPH Power supply: 380VAC 50HZ Water cooling: 20ºC (5HP Water chiller) Air source: 0.6Mpa, 0.8m³/min (1.2 m³/min Air compressor)
| 1 | Unit | TVA-30L |
| |
| Raw Material | PE/PP/PA/PVC/PETG/ABS/PS/EVA/TPU etc |
| Machine Weight | T | 10 |
| Machine (L*W*H) | m | 5.0x5.9x2.35 |
| Extrusion System |
| Diameter of Screw | mm | 80 |
| Screw L/D ratio | L/D | 23:1 |
| Plasticizing Capacity | Kg/h | 90-100 |
| Heating Zones | pcs | 84 |
| Heating Power | kw | 30 |
| Screw Motor | kw | 12 |
| Die Head |
| Heating Zones | pcs | 3 |
| Heating Power | kw | 20 |
| Power Consumption |
| Air Pressure | Mpa | 0.6-0.8 |
| Air Consumption | m3/min | 1 |
| Cooling water | m3/h | 2 |
| Oil pump power | kw | 18.5 |
| Total Power | kw | 280-113 |
| Clamping System |
| Clamping Distance | m | 350 |
| Sliding Distance | mm | 650 |
| Open Stroke | mm | 400-750 |
| Mould Platen Size | mm | 500x600 |
| Clamping Force | kn | 150 |
| Working Condition |
| Piston Type Air Compressor | kw | 15 |
| Water Chiller | HP | 8 |
Dear manager
hi,how are you?thanks read our products information, i feel honored.
our company establish at 1993,so have stably good experienced.manufactur from 0.1ml-5000L hollow products,so hope we can help you choose which type of machine you want.if you interesting,pls contact with me.i'm rita
sincerely
Zhejiang Tonva Plastics Machine Co.,LTD.
Website:tonva-machine.en.made-in-china.com
Add:No.30,Huihai Road,Binggang Industrial Zone,Shamen,Yuhuan,Zhejiang,P.R.China.
>>
