Precision Taiwan Linear Guideway Slant Bed CNC Lathe Machine Tck6350

US$35,000.00

1-4 Sets

US$20,000.00

5+ Sets

Basic Info.

Model NO.

TCK6350

Type

Horizontal Lathe

Processing Accessory

Chuck CNC Lathe

Guide Rail

Inclined Guide Rail

Tool Holder

Turret, Gang Tools

Power Source

Electric

Controlling Mode

CNC

Automatic Grade

Automatic

Setting Mode

Floor-type

Precision

Certification

GS, CE, RoHS, ISO 9001

Condition

New

Name

Slant Bed CNC Lathe Machine

Max.Swing Over Bed

520mm

Max.Processing Length

300mm

Tool Post Type

Turret and Gang Tools

Spindle Motor

7.5kw

Chuck

Manual Chuck

Voltage

380V

OEM

Available

MOQ

1 Set

Delivery Time

1 Month

X Axis Travel

500mm

Z Axis Travel

500mm

Spindle Nose

A2-6

Slant Bed

45 Degree Slant Bed CNC Lathe

Guideway

Taiwan Linear Guideway

Transport Package

Wooden Case

Trademark

BETA

Origin

Shandong, China

Production Capacity

100 Sets Per Month

Packaging & Delivery

Package Size

200.00cm * 200.00cm * 200.00cm

Package Gross Weight

3500.000kg

Product Description

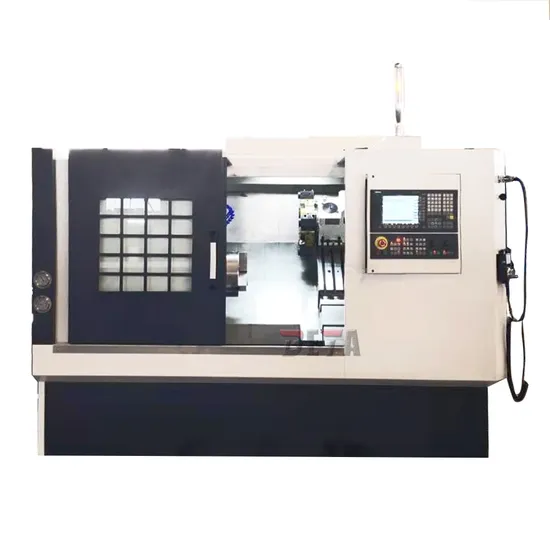

Precision Taiwan Linear Guideway Slant Bed CNC Lathe Machine TCK6350
(Linear guideway, Without tailstock)
Standard accessories:
45 degree slant bed structure,
GSK CNC controller,
Spindle motor 7.5kw servo,
Taiwan linear guide ways,
A2-6 spindle unit with maximum speed 3500rpm,
6" hollow type hydraulic collet with cylinder,
Gang type tools 4 pieces,
automatic lubrication system,
automatic cooling system,
work light
Full protection cover
Optional accessories:
Siemens/Fanuc CNC controller
Hydraulic turret
Servo Turret
Electric turret

Model	Unit	TCK6350
Swing over bed	mm	520
Swing over cross slide	mm	220
Max processing length	mm	300
X/Z axis travel	mm	500/500
Spindle nose		A2-6
Spindle bore	mm	66
Bar capacity	mm	55
Max spindle speed	rpm	3500
Chuck size	mm	200
Spindle motor	kw	7.5
X/Z axis repeatability	mm	0.003
X/Z axis feed motor torque	N.m	7.5/7.5
X/Z rapid traverse	mm/min	18/18
Tool post type		Gang type tools 3 pcs
Cutting tool shape size	mm	25x25
Guide way type		45 degree slant bed
Total power capacity	KVA	14/18
Overall dimension	mm	250016201890
Weight	kg	2900/3100
